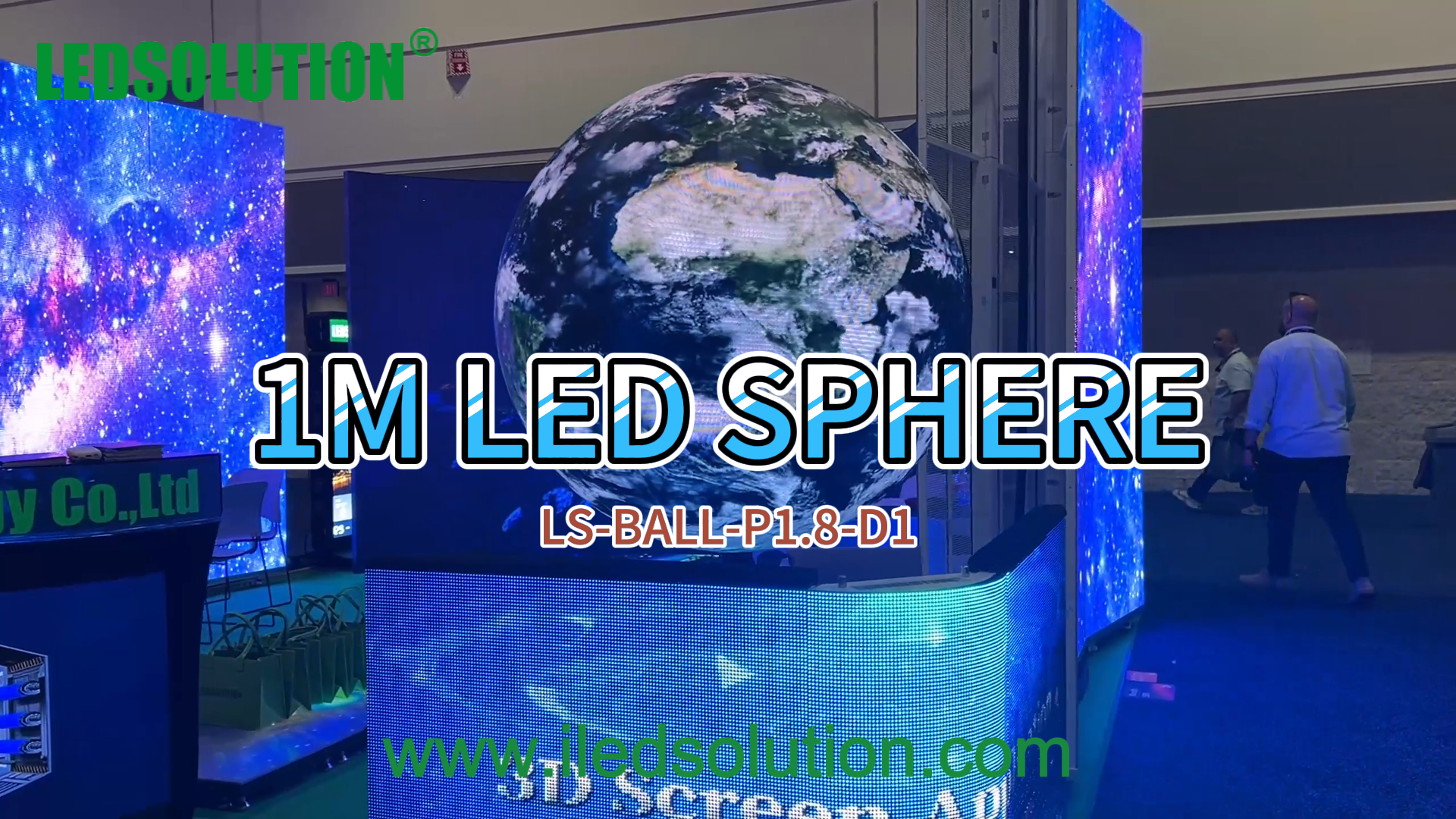

Model: LS-BALL-P1.8-D1
Application: Indoor Shopping mall, Bar, Club, Stage, Science Museum
Feature:
* Pitch 1.8mm
* Creative Spherial Design
* Easy to maintain
* Indoor Application
* Diameter=1meter
Specification:
| Parameter | Unit | Value |
| Model | LS-BALL-P1.8-D1 | |
| Pitch | mm | 1.8 |
| Brightness | nits | 800 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Net Weight | kg | 109.955741 |
| Diameter | m | 1 |
| Panel area | sq. m. | 3.14 |
| Resolution | Pixel | 1728*864 |
| Operating temperature range | deg. C | -30 to +60 |
| Structure Material | Steel | |
| Service access | Front service | |
| Ingress protection (front/rear) | IP23 | |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Dot per sq. meter | 308642 | |
| LED per sq. meter | 308642 | |
| Recommended minimum viewing distance | m | 1.37 |
| Recommended best viewing distance | m | 2~200 |
| Colors | 281 trillion | |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 3000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 3840 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/sqm | 600 |
| Input power (typical) | Watts/sqm | 240 |
| Lifetime (50% brightness) | Hours | ≥100000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Control way | Synchronous | |
| Data interconnection | UTP Cat 5 | |
| Mounting system | Stand on ground / Hanging | |
| Package | Fumigation wooden case | |
| Controller | NOVA |
