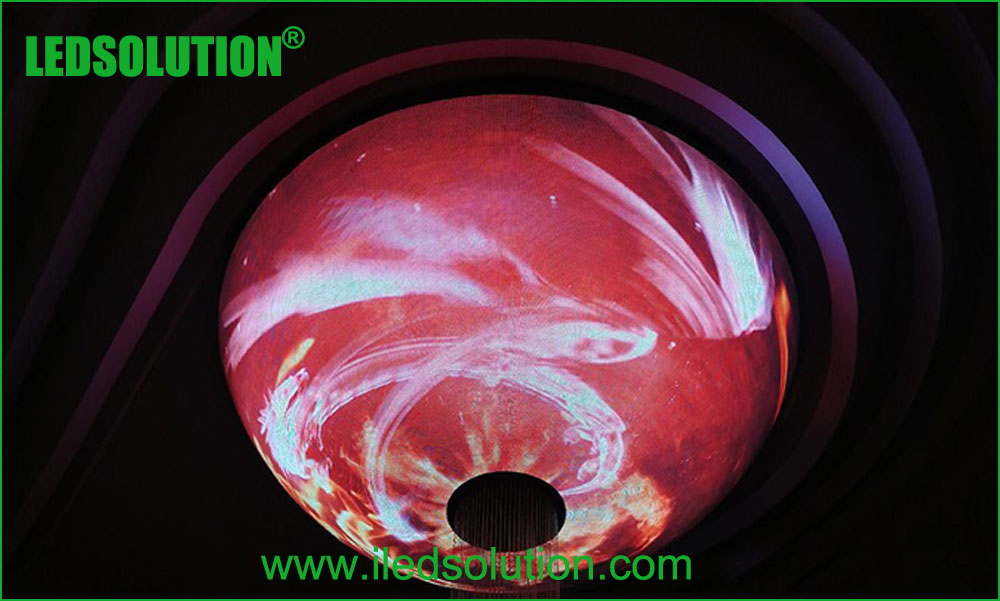

LS-BALL-P3-D5-HALF
Application: Indoor Shopping mall, Bar, Club or Stage Use
Feature:
* Pitch 3mm
* Creative Design Hemisphere shape
* Front service
* Indoor Application
* Diameter=5meter (Option 1m/2m/3m/4m/5m/6m+)
Specification:
| LED Ball Parameter | Value |
| Model | LS-BALL-P3-D5-HALF |
| Application | Indoor |
| Pitch | 3.00mm |
| Pixel density | 1111111pixel/sq.m |
| LED density | 1111111pixel/sq.m |
| Brightness | 1000nit |
| Color temperature | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. |
| LED Ball diameter | 5m |
| LED Ball area | 39.27SQM |
| LED Ball resolution | 2560*2560pixel |
| LED Ball structure material | Steel+Aluminum |
| LED Ball weight | 1374kg/sqm |
| LED Ball install mode | Indoor fixed installation |
| Service access | Magnet module front service |
| Ingress protection (front/rear) | IP23 |
| Operating temperature range | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD |
| Recommended minimum viewing distance | 2.3m |
| Recommended best viewing distance | 1.5~200m |
| Colors | 281 Trillion |
| Grey scale (linear) | 65536 levels per color |
| Brightness control | 100Levels |
| Contrast ratio | 3000:1 |
| Processing depth | 16bit |
| Video frame rate | 60Hertz |
| Display refresh rate | 3840Hertz |
| Input voltage (nominal) | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz |
| Input power (max) | 600Watts/ sqm |
| Input power (typical) | 240Watts/ sqm |
| Lifetime (50% brightness) | ≥100000 |
| Red wavelength (dominant) | 620~625 |
| Green wavelength (dominant) | 525~530 |
| Blue wavelength (dominant) | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber |
| Controller | LEDSOLUTION ball Control System |
| Mounting system | Stand on ground / Haning |
| Package | Fumigation free wooden case |
