Fine Pixel Pitch LED Displays

General:

Nowadays high resolution LED displays are becoming increasingly popular. In order to meet higher and higher requirement on the display resolution, LEDSOLUTION developed our HD LED displays series. These LED displays are the smallest pitches in the industry.

Enquire us

Features:

* Extremely high resolution;
* Excellent image & video quality;
* Flat & seamless surface;
* Thin & light LED panel design;
* Low power consumption, environmentally friendly;
* Wide viewing angle, 140 degree both horizontal and vertical;
* Module option:SMD and GOB;
* Both back service & front service solutions available to fit different installation sites.

PRO95 Series HD LED Display (16:9) (960*540mm)

Pro95 Series Indoor Full Front Service LED Display (14)

PRO95 SERIES

Application: Indoor fixed installation
Pitch option: P1/P1.25/P1.5/P1.8/P2/P2.5
Cabinet size: 960*540mm
Cabinet ratio: Standard 16:9
Service access: Full front service
Main feature: Cable-free module design

L Series HD LED Display (1000*500mm / 500*500mm)

L SERIES

Application: Indoor fixed installation
Pitch option: P1.9/P2.6/P2.98/P3.91
Cabinet size: 500*250mm / 750*250mm / 1000*250mm
500*500mm / 750*500mm / 1000*500mm
Service access: Full front service
Main feature: Multiple sizes for option; Full front service; corner design avaliable

LEDSOLUTION L Series HD LED Display

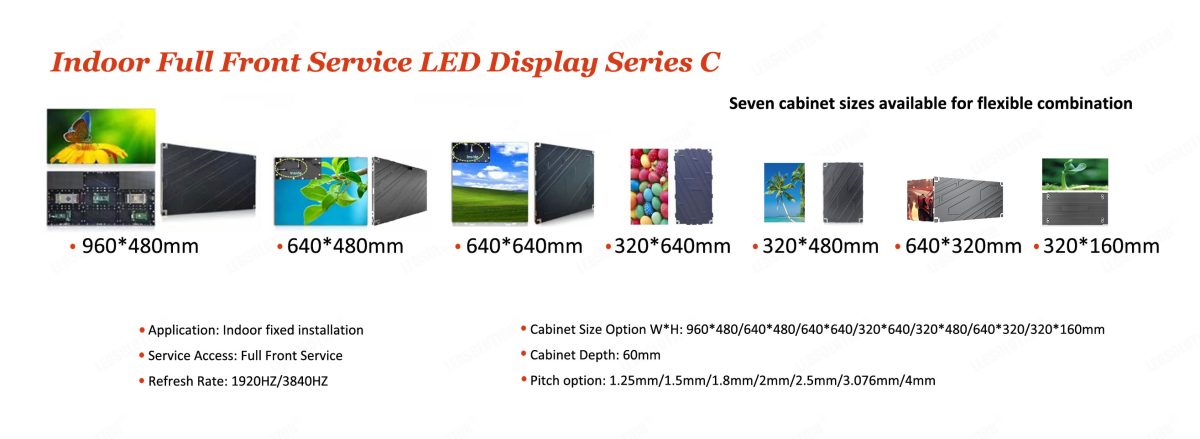

C Series HD LED Display (960*480mm / 640*640mm / 640*480mm / 320*480mm)

LEDSOLUTION C Series HD LED Display

C SERIES

Application: Indoor fixed installation
Pitch option: P1.25/P1.5/P1.8/P2/P2.5/P3.076/P4mm
Cabinet size: 960*480mm / 7640*480mm / 640*640mm / 320*640mm
Service access: Full front service
Main feature: Multiple sizes for option; Full front service; corner design avaliable

640x480mm Series LED Display B

640*480mm indoor die-cast aluminum led display

LS-DI-P1.25-MF-0.64mx0.48m-B

P1.25 HD LED Display 640x480mm-B Model: LS-DI-P1.25-MF-0.64mx0.48m-B Application: HD Indoor Fixed Installation

Read more
640*480mm indoor die-cast aluminum led display

LS-DI-P1.48-MF-0.64mx0.48m-B

P1.48 HD LED Display 640x480mm-B Model: LS-DI-P1.48-MF-0.64mx0.48m-B Application: HD Indoor Fixed Installation

Read more
640*480mm indoor die-cast aluminum led display

LS-DI-P1.536-MF-0.64mx0.48m-B

P1.536 HD LED Display 640x480mm-B Model: LS-DI-P1.536-MF-0.64mx0.48m-B Application: HD Indoor Fixed Installation

Read more
640*480mm indoor die-cast aluminum led display

LS-DI-P1.667-MF-0.64mx0.48m-B

P1.667 HD LED Display 640x480mm-B Model: LS-DI-P1.667-MF-0.64mx0.48m-B Application: HD Indoor Fixed Installation

Read more
640*480mm indoor die-cast aluminum led display

LS-DI-P1.86-MF-0.64mx0.48m-B

P1.86 HD LED Display 640x480mm-B Model: LS-DI-P1.86-MF-0.64mx0.48m-B Application: HD Indoor Fixed Installation

Read more
640*480mm indoor die-cast aluminum led display

LS-DI-P2-MF-0.64mx0.48m-B

P2 HD LED Display 640x480mm-B Model: LS-DI-P2-MF-0.64mx0.48m-B Application: HD Indoor Fixed Installation

Read more
640*480mm indoor die-cast aluminum led display

LS-DI-P2.5-MF-0.64mx0.48m-B

P2.5 LED Display 640x480mm-B Model: LS-DI-P2.5-MF-0.64mx0.48m-B Application: Indoor Fixed Installation

Read more

600×337.5mm Series LED Display (16:9)

LEDSOLUTION HD LED Display 600x337.5mm-2023

P1.25 HD LED Display

P1.25 HD LED Display Fine Pixel Pitch LED Displays Model: LS-DI-P1.25-MF-0.6mx0.3375m Application: HD Indoor Fixed Installation

Read more
LEDSOLUTION HD LED Display 600x337.5mm-2023

P1.56 HD LED Display

Fine Pixel Pitch LED Displays Model: LS-DI-P1.56-MF-0.6mx0.3375m Application: HD Indoor Fixed Installation

Read more
LEDSOLUTION HD LED Display 600x337.5mm-2023

P1.875 HD LED Display

P1.875 HD LED Display Fine Pixel Pitch LED Displays Model: LS-DI-P1.875-MF-0.6mx0.3375m Application: HD Indoor Fixed Installation

Read more
