P1.25 HD LED Display

Fine Pixel Pitch LED Displays

Model: LS-DI-P1.25-MF-0.6mx0.3375m

Application: HD Indoor Fixed Installation

Enquire us

Feature

  • Light weight,one person is able to carry one cabinet and install easiy.It makes the screen convenient in assmbly and transport.
  • Urtra Thin,the depth of the cabinet is 66mm.

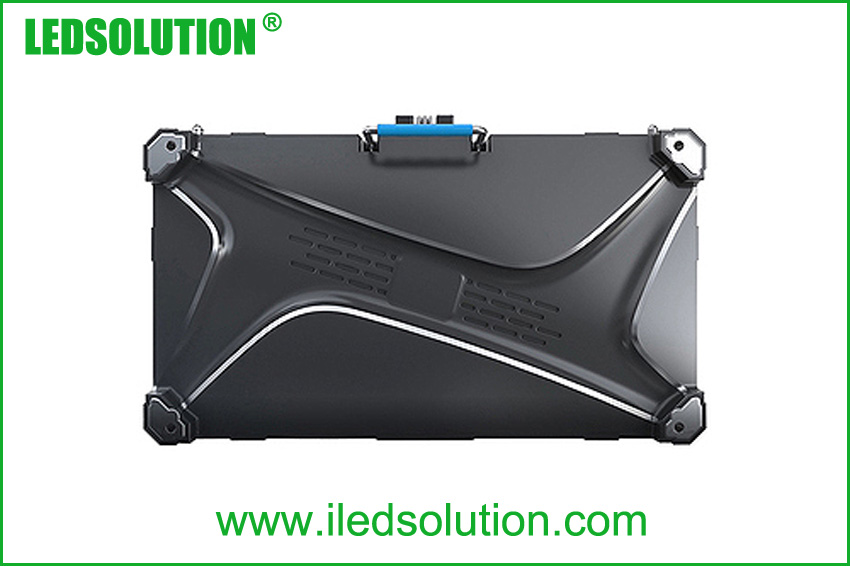

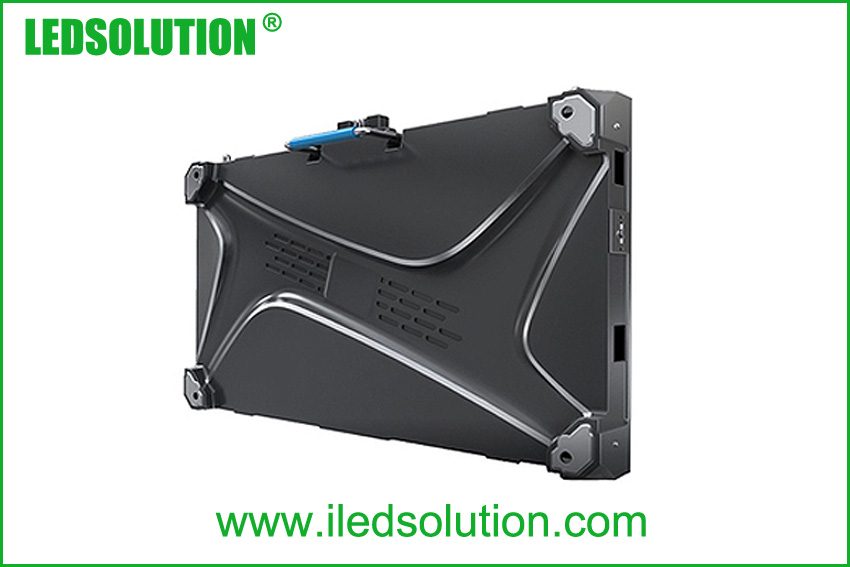

  • Seanless assembly,the whole cabinet is die-cast.
  • State-of-art indoor 3in1 SMD.

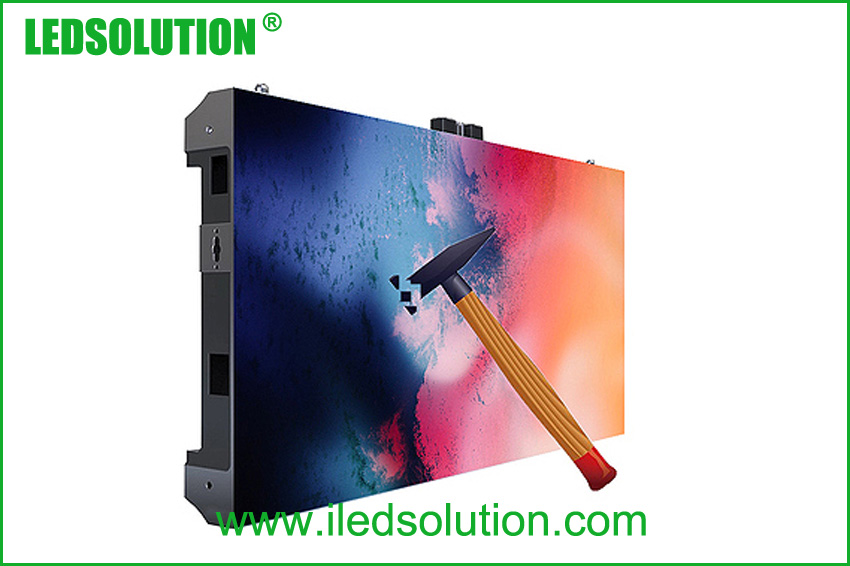

  • SMD/GOB module option.

Specification

ParameterValue
ModelLS-DI-P1.25-MF-0.6mx0.3375m
ApplicationIndoor
Pitch1.25mm
Pixel density640000pixel/sq.m
LED density640000pixel/sq.m
Brightness 600nit
Color temperature 6500deg. K
Viewing angle – Horizontal140(-70 ~ +70) deg.
Viewing angle – Vertical140(-70 ~ +70)deg.
Module size(W*H)300*168.75mm
Cabinet size(W*H)600*337.5mm
Cabinet depth32mm
Cabinet sq. meter0.203sq.m
Cabinet resolution(W*H)480*270pixel
Cabinet material Aluminum
Cabinet weight 4.2kg/cabinet
Cabinet modeFor fixed installation
Service accessFull front service
Ingress protection (front/rear) IP23/23
Operating temperature range -30 to +60 deg. C
Humidity operating10% ~ 90% RH
Pixel type and configuration 3in1 SMD
Recommended minimum viewing distance 1.0m
Recommended best viewing distance1.25~200m
Colors  281 Trillion
Grey scale (linear) 65536 levels per color
Brightness control 100Levels
Contrast ratio 4000:1
Processing depth 16bit
Video frame rate 60Hertz
Display refresh rate 3840HZ
Input voltage (nominal) 110 or 220VAC
Input power frequency 50 to 60 Hertz
Input power (max) 200Watts/ cabinet
Input power (typical)80Watts/ cabinet
Lifetime (50% brightness) ≥100000
Red wavelength (dominant) 620~625
Green wavelength (dominant) 525~530
Blue wavelength (dominant) 470~475
Multimedia data formatDVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
ControllerNOVA

Download

LS-DI-P1.25-MF-0.6mx0.3375m-V2023.pdf
