Flex95 Series Curve LED Display

LEDSOLUTION FLEX95 series flexible LED display adopts 320mm*180mm 16:9 aspect ratio LED module. It’s so easy to build 16:9 LED displays.

By using soft HUB board, the module is soft and bendable, so it can make special LED display shapes such as concave, convex, cylindrical, wavy, ribbon, etc. It’s also perfect to make creative LED displays. The creativity is infinite.

Front service design saves installation space, and makes it easy and convenient to install and maintain.

Flex95 Series 320x180mm 16to9 ratio Flexible LED Module

Module size:

320*180mm

PRODUCT FEATURES

>> Module size: 320mm*180mm.

>> Pixel pitch: 1.25mm, 1.5mm, 1.8mm, 2mm, 2.5mm

>> Standard 16:9 aspect ratio module. Easy to build 16:9 LED displays.

>> Soft & Bendable. Perfect to make curved shapes.

>> Front service. Easy to assemble and maintain.

>> Convenient in installation by fixing the modules to frame by magnets.

>> Superb color and brightness uniformity. Excellent picture quality.

>> High refresh rate: 3840Hz.

>> Reliable quality, long life-time.

Flex95 Series LED Display Flexible Module size 320x180mm for curved backdrop
Flex95 Series LED Display Flexible Module size 320x180mm for curved backdrop
Flex95 Series 320x180mm LED Module
Flex95 Series 320x180mm 16to9 ratio Flexible LED Module

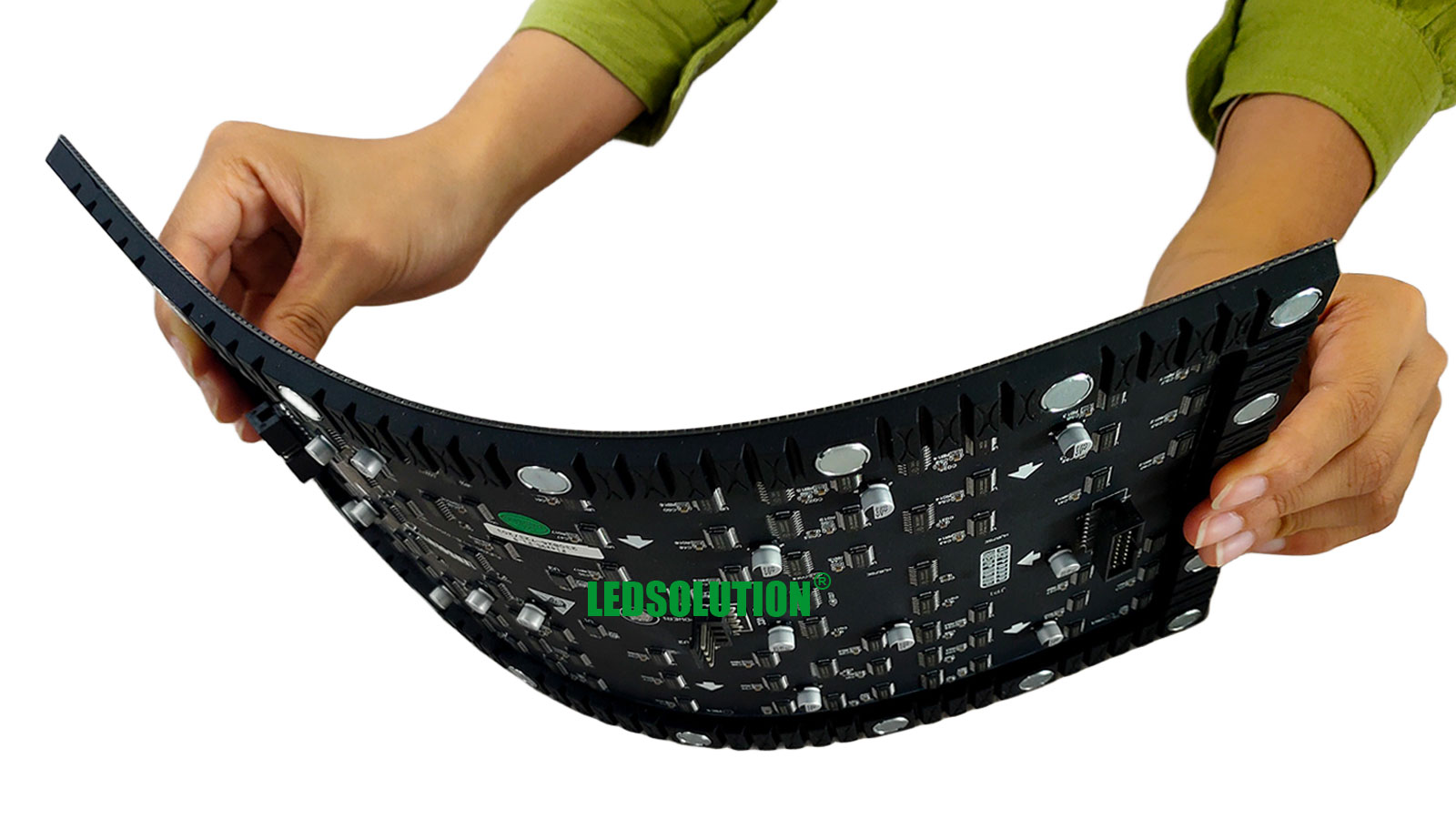

Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-concave-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-convex-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-Curve-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-Cylinder-LED-Display
Flex95 Series 320x180mm LED Module
Flex95 Series 320x180mm 16to9 ratio Flexible LED Module
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-concave-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-convex-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-Curve-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-Cylinder-LED-Display
previous arrow
next arrow
Flex95 Series 320x180mm LED Module
Flex95 Series 320x180mm 16to9 ratio Flexible LED Module
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-concave-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-convex-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-Curve-LED-Display
Flex95-Series-320x180mm-16to9-ratio-Flexible-LED-Module-for-Cylinder-LED-Display
previous arrow
next arrow



FLEXIBLE

FULL FRONT SERVICE

Flex95 Series Curve LED Display full front service
Flex95 Series Module cross 2 cabinets to make perfect smooth curve

Perfect Curved Screen Solution

In order to make it seamless assembly between adjacent cabinets, we designed one module to cross 2 cabinets, which is perfect for curved LED screens.

FLEX95 SERIE PROJECT APPLICATION

FLEX95 SERIES APPLICATION

PITCH OPTION & SPECIFICATION

Parameter

Value

ModelFlex95-P1.25 / Flex95-P1.5 / Flex95-P1.8 / Flex95-P2 / Flex95-P2.5

Pixel pitch

1.25mm/ 1.5mm/ 1.8mm/ 2mm/ 2.5mm

Cabinet size

Customized

Screen shape

Customized

LED module

Flexible

Module size

320*180mm

Cabinet material

Steel

Cabinet thickness

80~100mm

Screen input power

Max 600W/sqm, Average 240W/sqm

Brightness

800~1000 nits

Display refresh rate

3840Hz

Color temperature

6500deg. K

Viewing angle

140° Horizontal, 140° Vertical

Service access

Front service

Operating temperature range

-30 to +60 deg. C

Humidity operating

10% ~ 90% RH

Pixel type and configuration

3 in 1 SMD

Colors

281 Trillion

Grey scale (linear)

65536 levels per color

Brightness control

256 Levels

Contrast ratio

5000:1

Processing depth

16bit

Video frame rate

60Hz

Input voltage (nominal)

110 or 220 VAC

Input power frequency

50Hz to 60Hz

Lifetime (50% brightness)

≥100000 Hours

Red wavelength (dominant)

620~625 nm

Green wavelength (dominant)

525~530 nm

Blue wavelength (dominant)

470~475 nm

Multimedia data format

DVI, MPG, AVI, WMV, RM etc.

Data interconnection

UTP Cat5 / Optical Fiber
