LEDSOLUTION launched our F960 Series die-cast LED display for outdoor fixed installation applications.
F960 series LED panels support both front and rear service, so they can fit various installation sites. It’s very versatile, and can be widely applied in different places.
The modules can be assembled to the cabinet or removed from the cabinet quickly and easily with a simple tool. This is very convenient in the installation and maintenance process.
Compared to traditional outdoor steel cabinet, F960 series die-cast cabinet is thinner and lighter. It can save packing spaces, save shipping cost and save support structure cost.

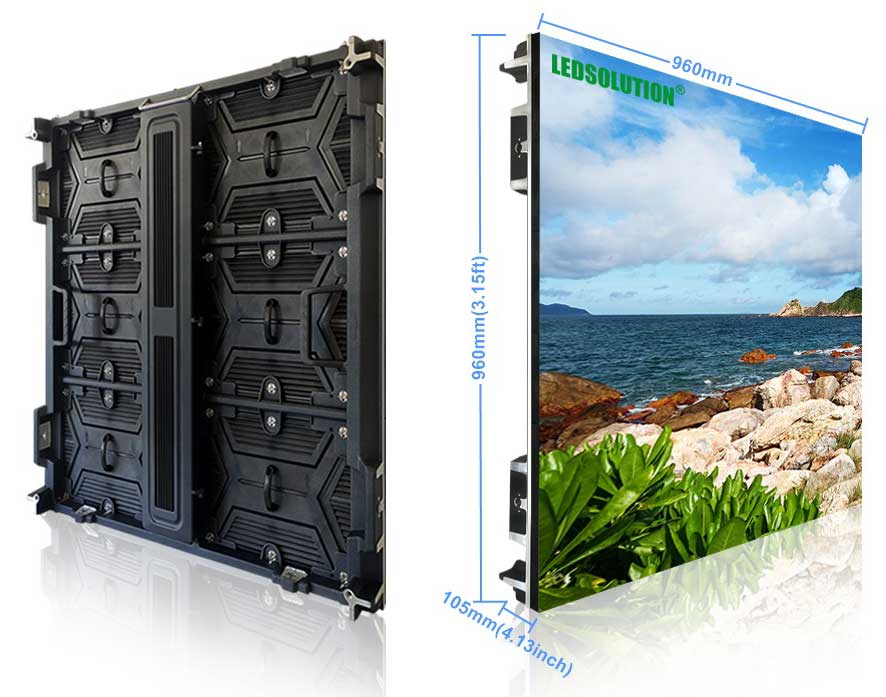

CABINET SIZE
960*960*105mm
AVAILABLE PIXEL PITCH
5.7mm / 6.67mm / 8mm / 10mm
A new generation
for
outdoor fixed installation

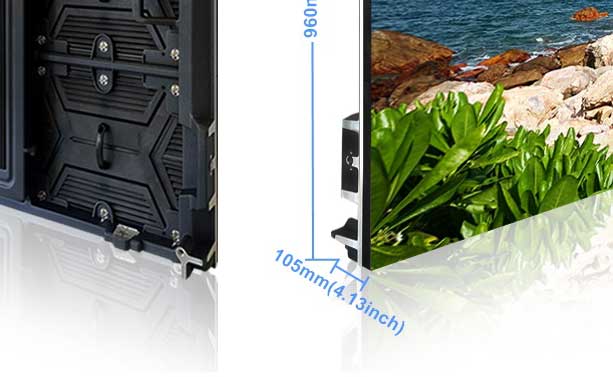

SUPER SLIM
105mm
OTHER FEATURES
- Support both front & Rear service. Suitable for various installation sites.
- Easy & quick to assemble or remove a module within a few seconds.
- Quick assembly. With fast locks, connection between cabinets can be finished quickly.
- Thin & lightweight cabinet. Thinner and lighter than steel cabinet.
- Flat & seamless screen surface.
- Stable and reliable performance.
- Competitive price.
PITCH OPTION & SPECIFICATION
| Parameter | Value | Value | Value | Value |
| Model | F960-P5.7 | F960-P6.67 | F960-P8 | F960-P10 |
| Application | Outdoor | Outdoor | Outdoor | Outdoor |
| Pitch | 5.7 | 6.67 | 8 | 10 |
| Pixel density | 30625pixel | 22500pixel | 15625pixel | 10000pixel |
| LED density | 30625pixel | 22500pixel | 15625pixel | 10000pixel |
| Brightness | 6000nit | 6000nit | 6000nit | 6000nit |
| Color temperature | 6500deg. K | 6500deg. K | 6500deg. K | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. |
| Module size(W*H) | 480*320 | 480*320 | 480*320 | 480*320 |
| Module resolution(W*H) | 84*56 | 72*48 | 60*40 | 48*32 |
| Cabinet size(W*H*D) | 960*960*105 | 960*960*105 | 960*960*105 | 960*960*105 |
| Cabinet sq. meter | 0.9216 | 0.9216 | 0.9216 | 0.9216 |
| Cabinet resolution(W*H) | 168*168 | 144*144 | 120*120 | 96*96 |
| Cabinet material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Cabinet weight | 28KG | 28KG | 28KG | 28KG |
| Cabinet mode | Outdoor fixed installation | Outdoor fixed installation | Outdoor fixed installation | Outdoor fixed installation |
| Service access | Front & Back | Front & Back | Front & Back | Front & Back |
| Ingress protection (front/rear) | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 |
| Operating temperature range | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Recommended minimum viewing distance | 4.332 | 5.0692 | 6.08 | 7.6 |
| Recommended best viewing distance | 5.7~200m | 6.67~200m | 8~200m | 10~200m |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion |
| Grey scale (linear) | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color |
| Brightness control | 100Levels | 100Levels | 100Levels | 100Levels |
| Contrast ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Processing depth | 16bit | 16bit | 16bit | 16bit |
| Video frame rate | 60Hertz | 60Hertz | 60Hertz | 60Hertz |
| Display refresh rate | 3840Hertz | 3840Hertz | 3840Hertz | 3840Hertz |
| Input voltage (nominal) | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz |
| Input power (max) | 800 | 800 | 800 | 800 |
| Input power (typical) | 320 | 320 | 320 | 320 |
| Lifetime (50% brightness) | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Red wavelength (dominant) | 620~625 | 620~625 | 620~625 | 620~625 |
| Green wavelength (dominant) | 525~530 | 525~530 | 525~530 | 525~530 |
| Blue wavelength (dominant) | 470~475 | 470~475 | 470~475 | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber |
| Controller | NOVA | NOVA | NOVA | NOVA |
