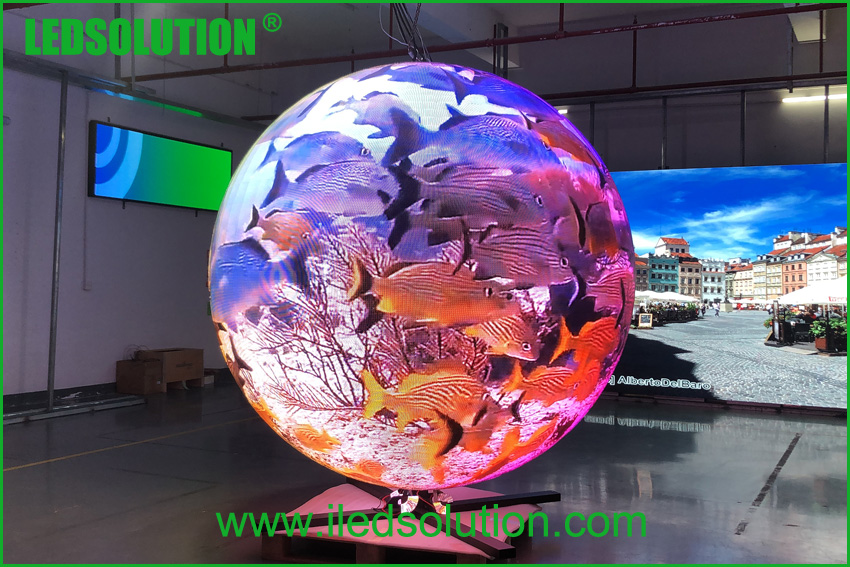

Model: LS-BALL-P3-D2

Application: Indoor Shopping mall, Bar, Club, Stage, Science Museum


* Pitch 3mm
* Creative Spherial Design
* Easy to maintain
* Indoor Application
* Diameter=2meter


Parameter Unit Value
Pitch mm 3
Brightness nits 1000
Color temperature deg. K 6500
Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle – Vertical (50% brightness) deg. 140(-70 ~ +70)
Net Weight kg 400
Diameter mm 2000
Panel area sq. m. 12.56
Resolution Pixel 2048*1024
Operating temperature range deg. C -30 to +60
Material   Steel
Ingress protection (front/rear)   IP23
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 3in1 SMD
Dot per sq. meter   111111
LED per sq. meter   111111
Recommended minimum viewing distance m 2.2
Recommended best viewing distance m 4~200
Colors    281 trillion
Grey scale (linear) Levels 65536 levels per color
Brightness control Levels 100
Contrast ratio   3000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 600
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts/set 9600
Input power (typical) Watts/set 3840
Lifetime (50% brightness) Hours ≥100000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 525~530
Blue wavelength (dominant) nm 470~475
Multimedia data format   DVI,MPG,AVI,WMV,RM etc.
Control way   Synchronous
Data interconnection   UTP Cat 5
Mounting system   Hanging & Stand on ground
Package   Fumigation wooden case
