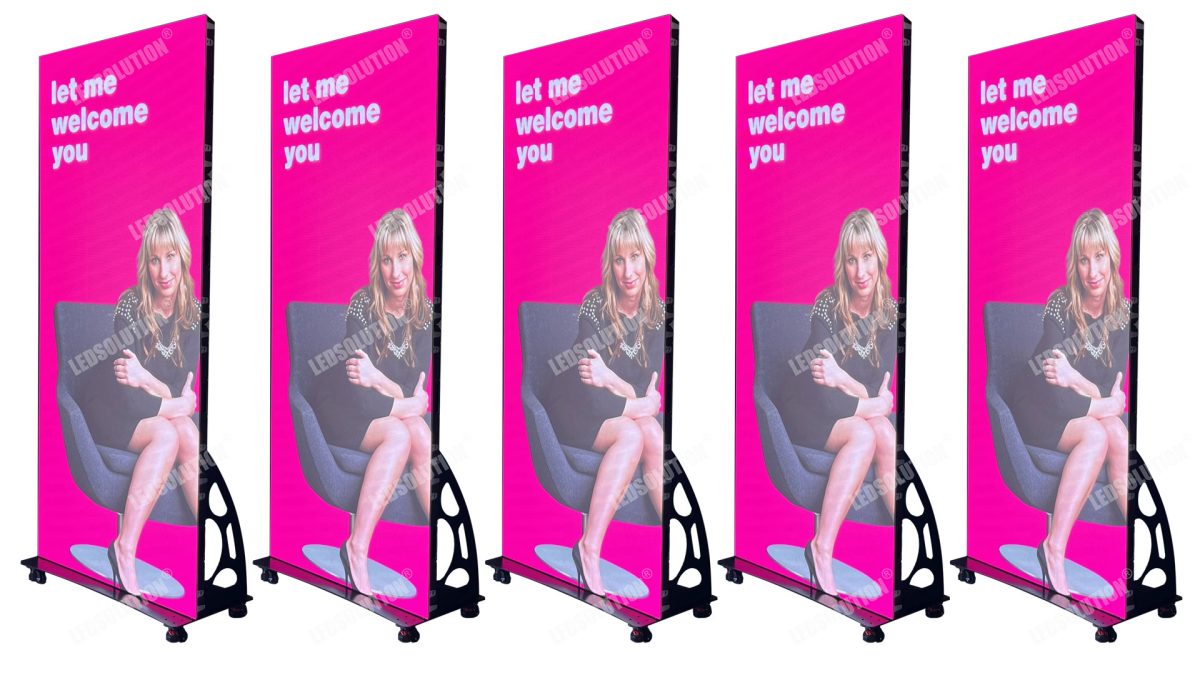

Model: LS-AD3-0.768mx1.248m

Application: Entrance LED Advertising Sign / LED Poster

Enquire us


  1. Application: Indoor advertising;
  2. Movable design;
  3. Thin cabinet depth only 45mm;
  4. Resolution 256x416pixel;
  5. IP65/43;
  6. Communication:3G or Wifi;
  7. Android APP to control the advertising;


Parameter Value
Pitch 3mm
Brightness 1200nits
Color temperature 6500 K
Viewing angle – Horizontal (50% brightness) 140(-70 ~ +70) deg.
Viewing angle – Vertical (50% brightness) 140(-70 ~ +70) deg.
Panel weight 48kg
LED display area 768x1248mm
Frame size (W) 810 x (H) 1322 x (D) 45mm
Out frame Cover Acryl panel
LED area 0.958 sq. m.
Panel material Epoxy paint coated aluminum
Panel protection IP65/43
Service access Back service
Operating temperature range -30 to +60 deg. C
Humidity operating RH 10% ~ 90%
Pixel type and configuration Indoor 3in1 SMD
Resolution per panel 256×416
Dot per panel 106496
Dot per sq. meter 111111
LED per sq. meter 111111
Recommended minimum viewing distance 2.2m
Recommended best viewing distance 3~30m
Colors 281 trillion
Grey scale (linear) 65,536 levels per color
Brightness control 100
Contrast ratio 1,000:1
Processing depth 16
Video frame rate 60
Display refresh rate 600
Input voltage (nominal) 110 to 240
Input power frequency 50 to 60
Input power (max) 1200
Input power (typical) 480
Lifetime (50% brightness) ≥100,000
Red wavelength (dominant) 620~625
Green wavelength (dominant) 520~525
Blue wavelength (dominant) 470~475
Control system Full color asynchronous
Data interconnection 3G/Wifi
Software PC software or Android Phone
Mounting system Stand on ground
