Bi-Fold LED Poster
Size: 640*1920mm
Application: Indoor Advertising
The Bi-Fold LED Poster is a compact and flexible LED display solution designed for fast deployment, easy transportation, and seamless scalability. With its foldable structure and modular cabinet design, it is ideal for retail environments, exhibitions, corporate branding, and rental applications where efficiency and visual impact are equally important.
General Information
- Pixel pitch options: 2.5mm, 2.0mm, 1.8mm, 1.5mm, 1.25mm
- Screen size (W × H): 640mm × 1920mm
- Cabinet size: 640mm × 480mm
- Cabinet quantity: 4 pcs (shipped as a complete set)
- Overall dimensions (expanded, with wheel base): 664 × 2073.5 × 440mm
- Overall dimensions (folded, with wheel base): 664 × 1101 × 440mm
- Folding capability: Vertical
- Cabinet material: Die-cast aluminum
- Service access: Full front service
- Module options: GOB / SMD / COB
Bi-Fold LED Poster Main Feature

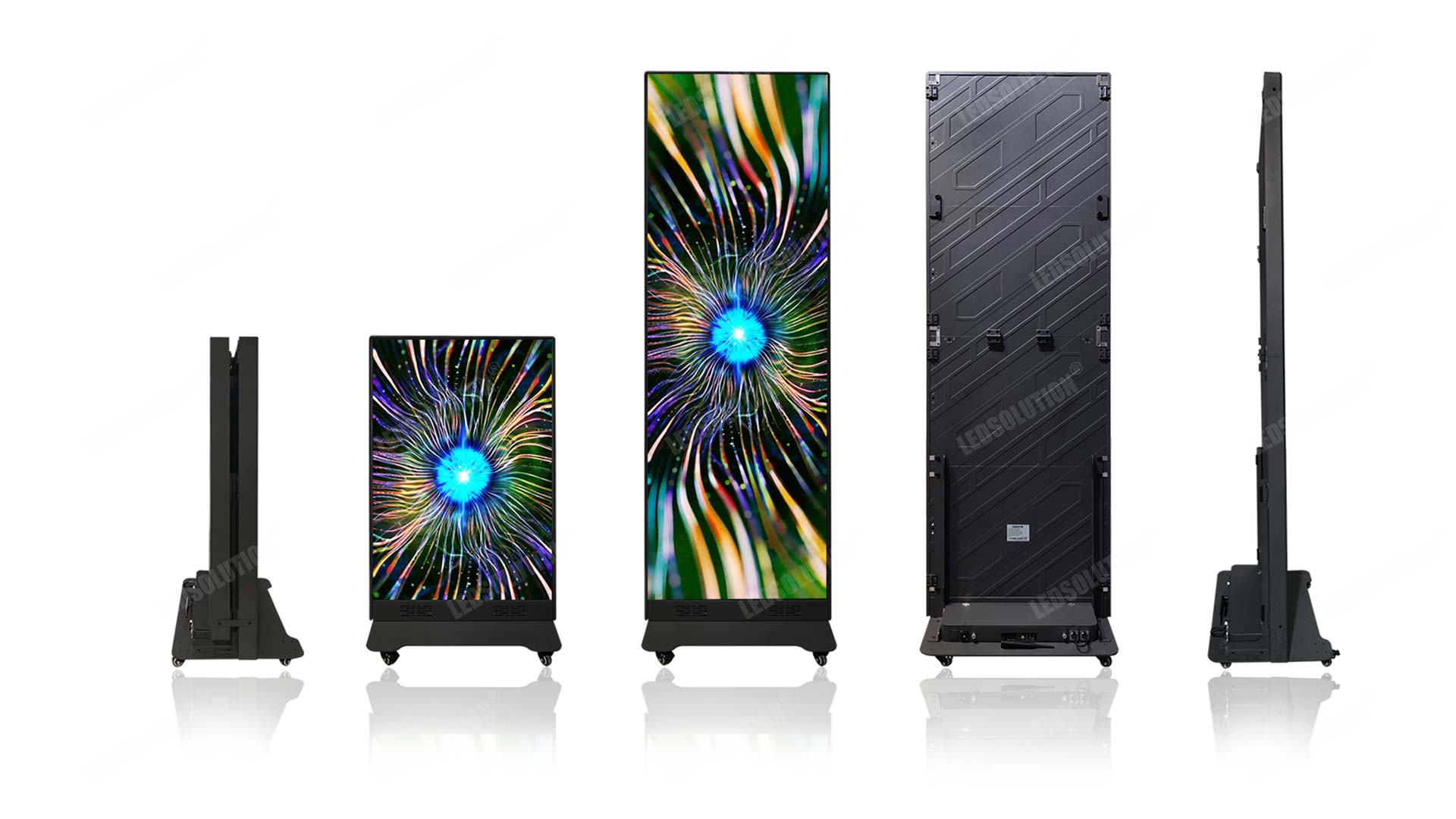

Foldable Design
Each LED poster can be folded vertically into a compact size of 640mm × 960mm, significantly improving handling efficiency and storage convenience.

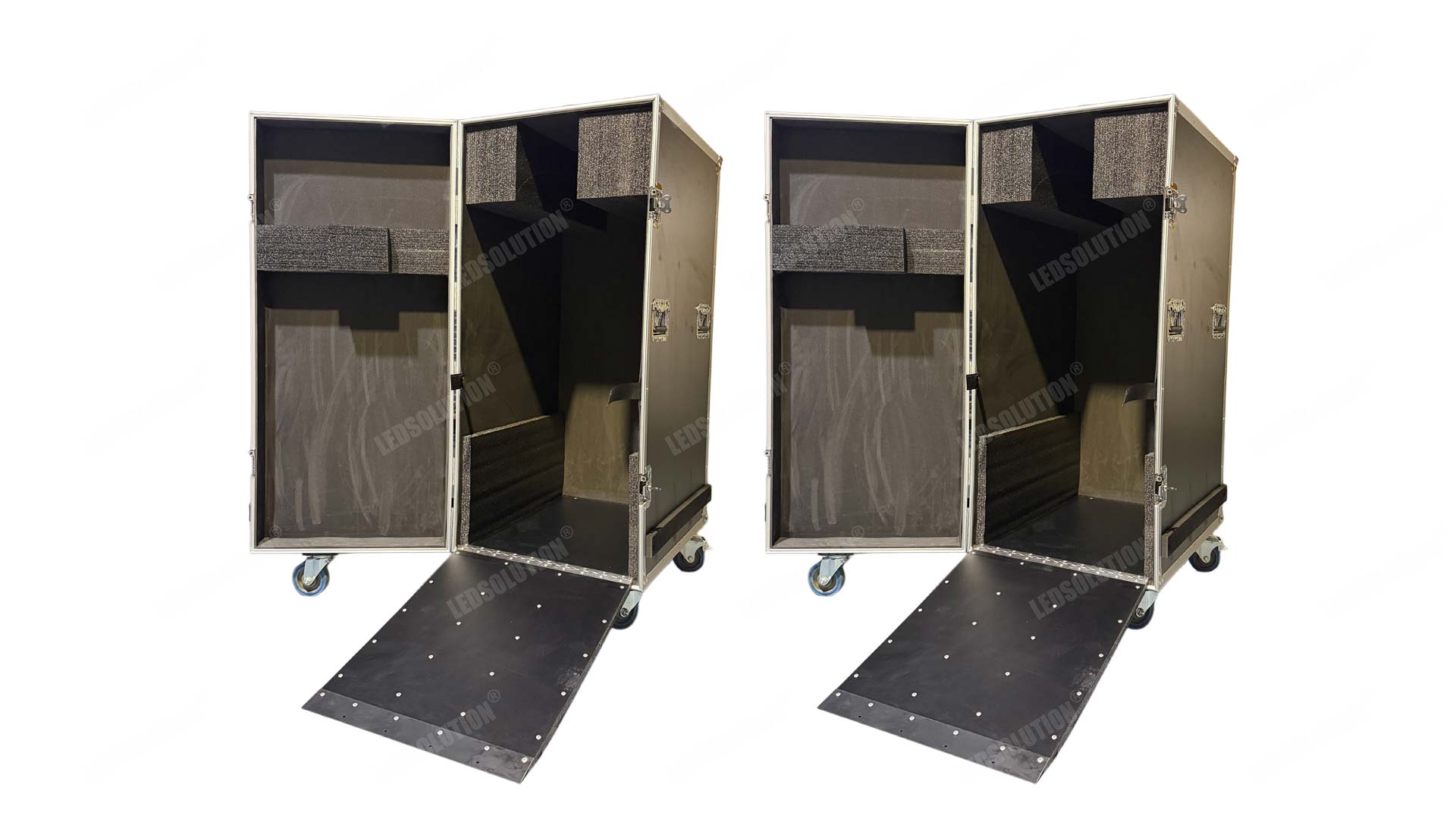

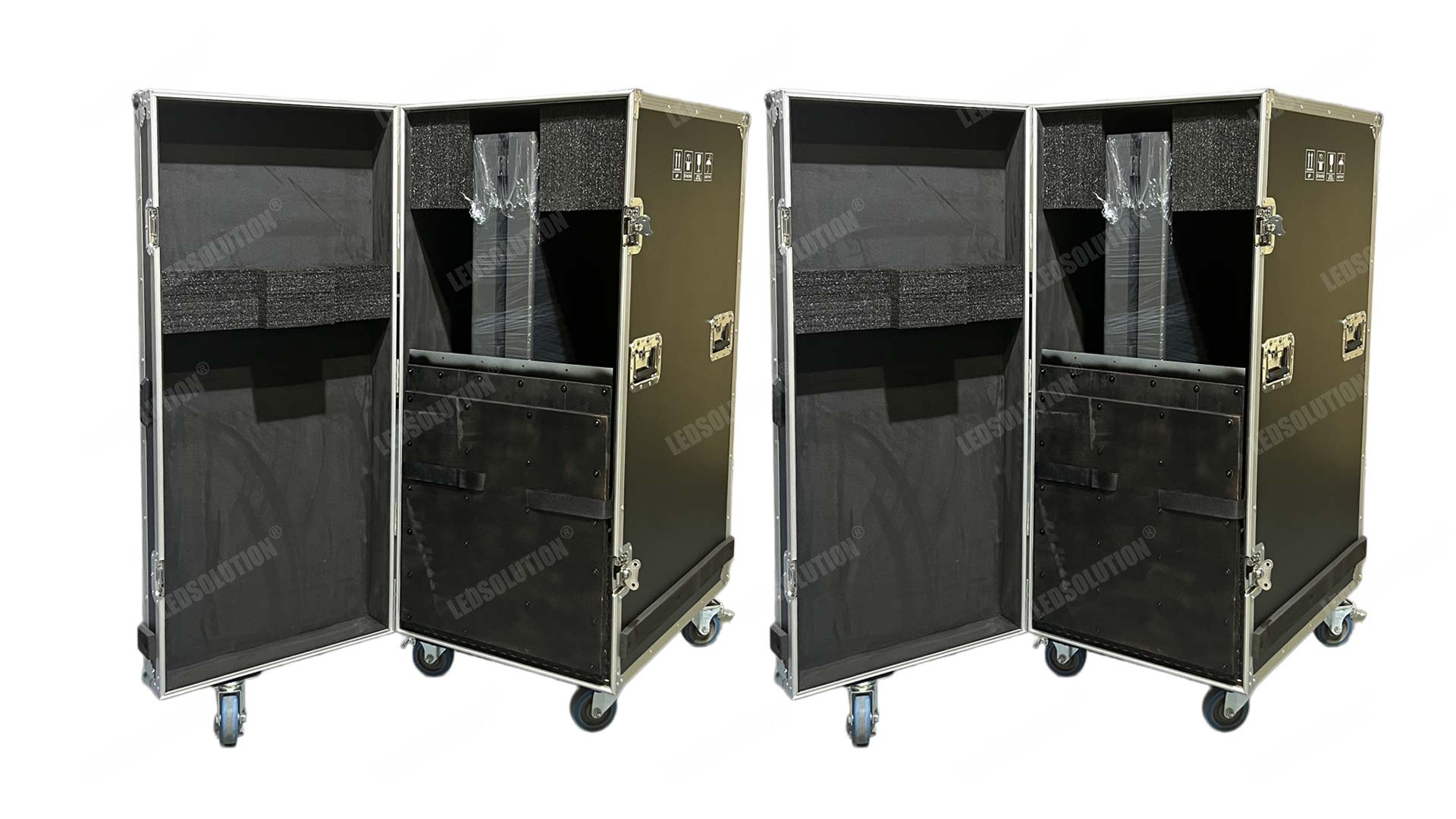

Easy Transportation with Flight Case Protection
The folded structure reduces packaging volume, making transportation more efficient. Each unit is protected by a dedicated flight case, ensuring safety during shipping and handling.
Fast Plug-and-Play Installation
Simply remove the unit from the flight case, unfold it, and power on. The system is pre-configured for plug-and-play operation, allowing quick setup without complex installation.

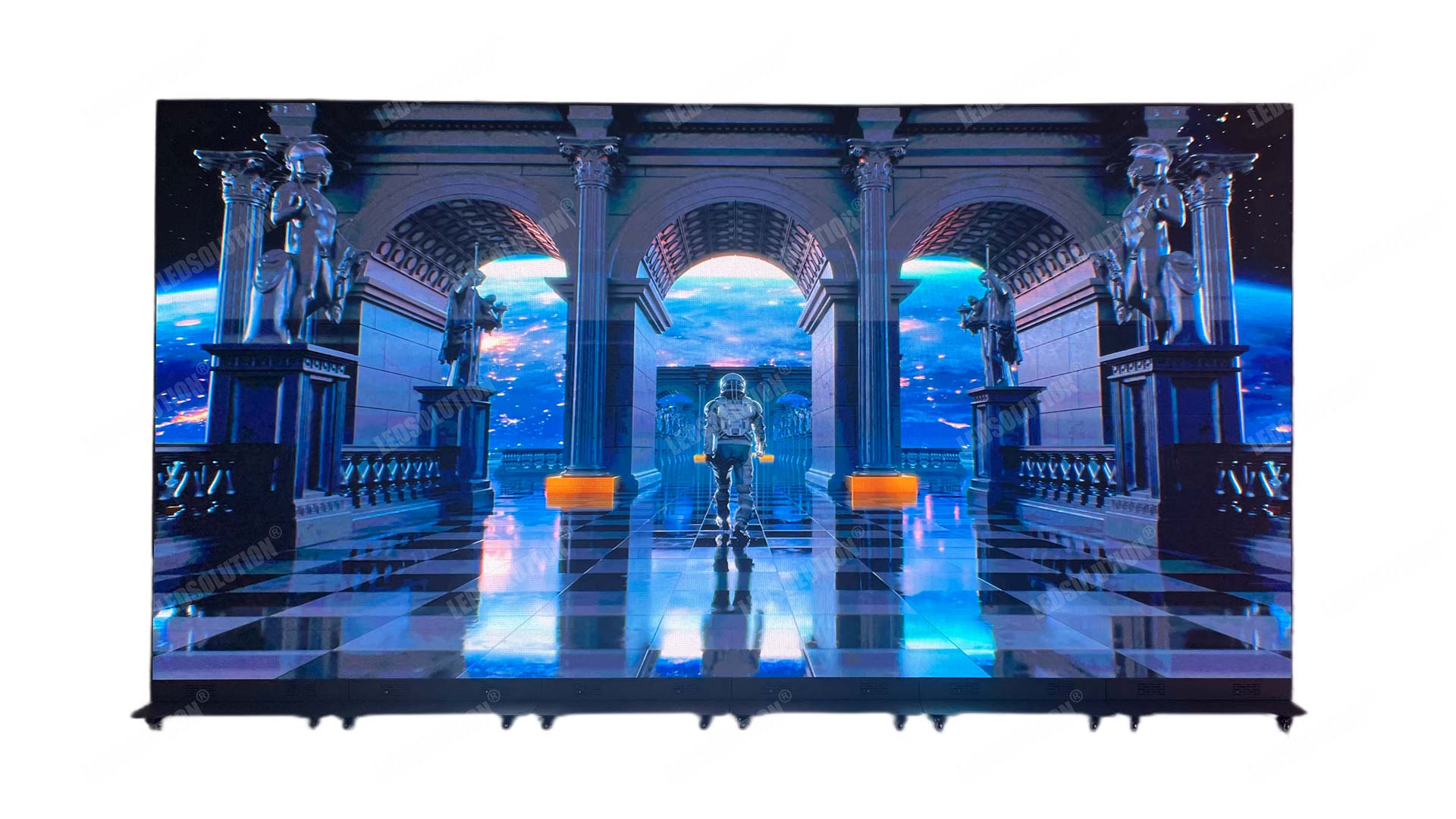

Seamless Splicing Capability
Each unit can operate independently or be combined with multiple units to create a larger seamless display wall, depending on project requirements.
High Visual Performance
Delivers true-to-life color reproduction with excellent display consistency, ensuring a clear and professional visual experience.
Excellent Screen Flatness
Precision cabinet structure ensures smooth surface alignment, maintaining a clean and uniform display appearance.
Slim and Lightweight Design
With a cabinet thickness of only 60mm, the Bi-Fold LED Poster features a slim profile that is easy to handle and suitable for modern commercial spaces.
Stable and Reliable Performance
Designed for continuous operation with stable performance, making it suitable for demanding commercial and rental environments.
Wide Application Scenarios
Ideal for a variety of use cases, including retail stores and shopping malls, corporate showrooms and branding spaces, exhibition halls and trade shows, and event rental and temporary installations.
Bi-Fold LED Poster Specification Sheet
| Parameter | Value |
| Product Series | Bi-Fold LED Poster |
| Model | LS-2FPxx-0.64mx1.92m |
| Pitch | P1.25 / 1.5/ 1.86/ 2/ 2.5 |
| Application | Indoor |
| Brightness | 600nit |
| Color temperature | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. |
| Module size(W*H) | 320*160mm |
| LED size(W*H) | 640*1920mm |
| Overall Dimensions (with wheel base) Expanded | 664*2073.5*440mm |
| Overall Dimensions (with wheel base) Folded | 664*1101*440mm |
| LED resolution | 512*1536p / 416*1248p / 344*1032p / 320*960p / 256*768p |
| LED sq. meter | 1.2288 SQM |
| Cabinet material | Die-cast Aluminum |
| Cabinet weight | 50.5 KG/set |
| Service access | Full front service |
| Ingress protection (front/rear) | IP23/IP43 |
| Front protection | GOB |
| Operating temperature range | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD |
| Colors | 281 Trillion |
| Grey scale (linear) | 65536 levels per color |
| Brightness control | 100Levels |
| Contrast ratio | 5000:1 |
| Processing depth | 16bit |
| Video frame rate | 60Hertz |
| Display refresh rate | 3840Hertz |
| Input voltage (nominal) | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz |
| Input power (max) | 800 Watts/ set |
| Input power (typical) | 320 Watts/ set |
| Lifetime (50% brightness) | ≥100000 |
| Red wavelength (dominant) | 620~625 |
| Green wavelength (dominant) | 525~530 |
| Blue wavelength (dominant) | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber |
| Controller | NOVA |
| Installation | Self-stand with wheel base |
