5-Fold LED Poster

Size: 1280*1920mm
Application: Indoor Advertising

The 5-Fold LED Poster is designed to deliver maximum flexibility, portability, and visual performance in a compact and modular form. With its innovative foldable structure and seamless splicing capability, it provides an efficient solution for applications ranging from retail displays to exhibition environments and rental events.

This product combines practical design with high-end display performance, making it suitable for both temporary setups and long-term installations.

General Specifications

  • Pixel pitch options: 2.5mm, 2.0mm, 1.8mm, 1.5mm, 1.25mm
  • Screen size (W × H): 1280mm × 1920mm
  • Overall dimensions (expanded, with wheel base): 1280 × 2085 × 470mm
  • Overall dimensions (folded, with wheel base): 656 × 1145 × 470mm
  • Folding capability: Horizontal & vertical
  • Display configurations:
    • Single-sided: 1280mm × 1920mm
    • Double-sided: 640mm × 1920mm
    • Double-sided: 640mm × 960mm
  • Cabinet material: Die-cast aluminum
  • Service access: Full front service
  • Module options: GOB / SMD / COB

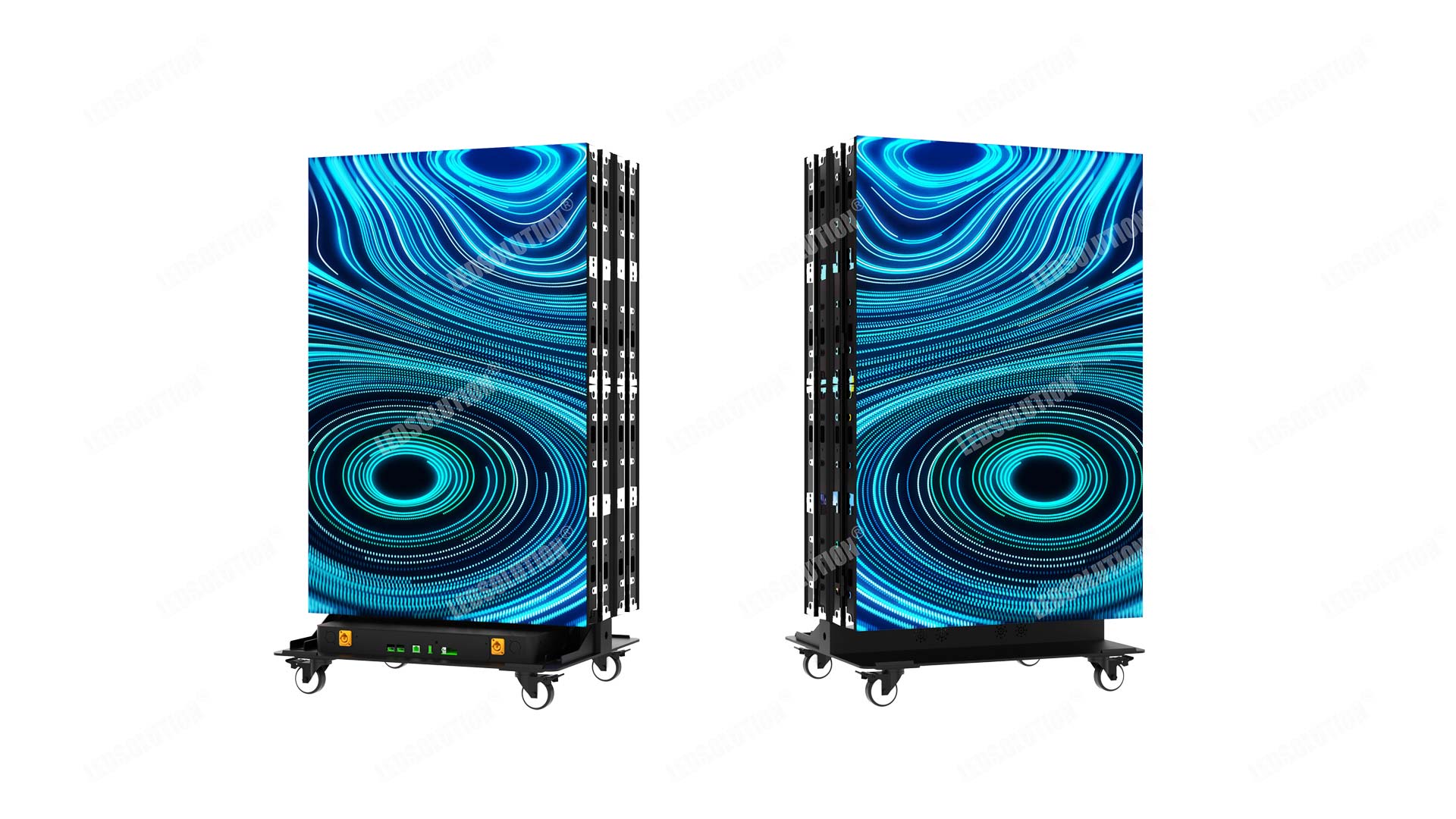

Flexible Folding Design for Space Efficiency

One of the core advantages of the 5-Fold LED Poster is its dual folding capability. The screen can be folded both horizontally and vertically, allowing a full-size display of 1280mm × 1920mm to be reduced to a compact unit.

With a folded size of only 656 × 1145 × 470mm, it significantly improves storage and transportation efficiency, making it ideal for projects that require frequent movement.

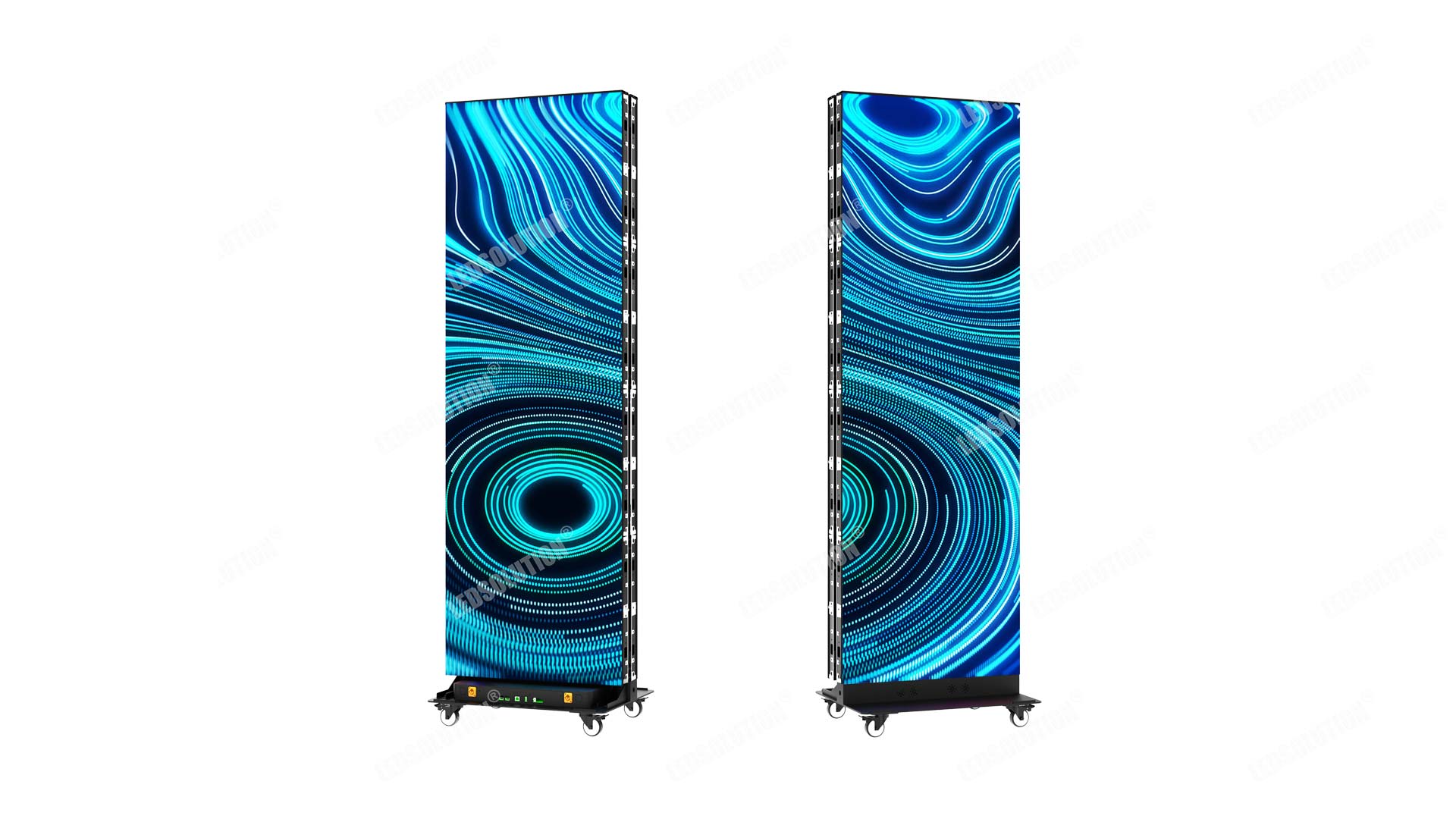

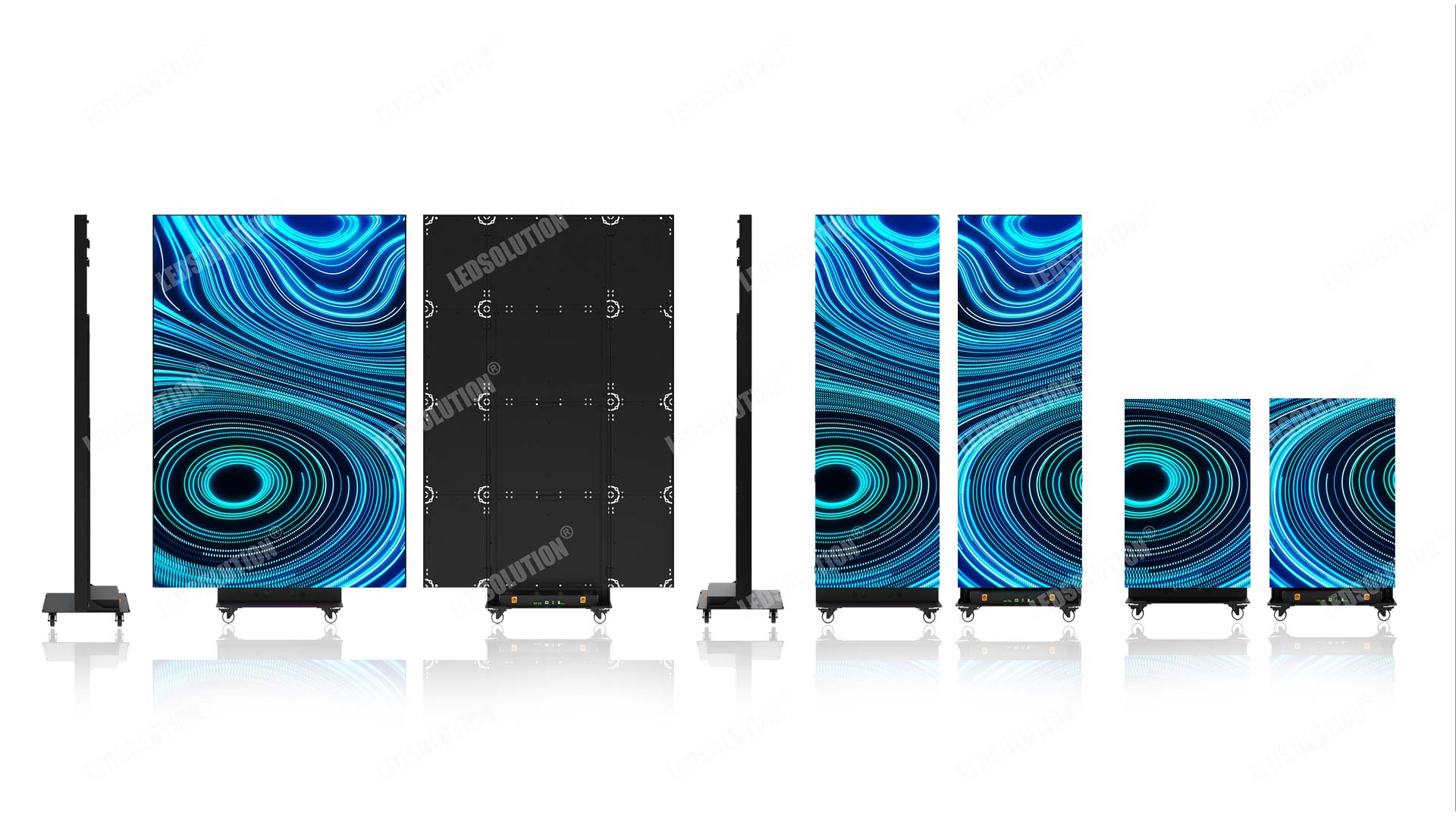

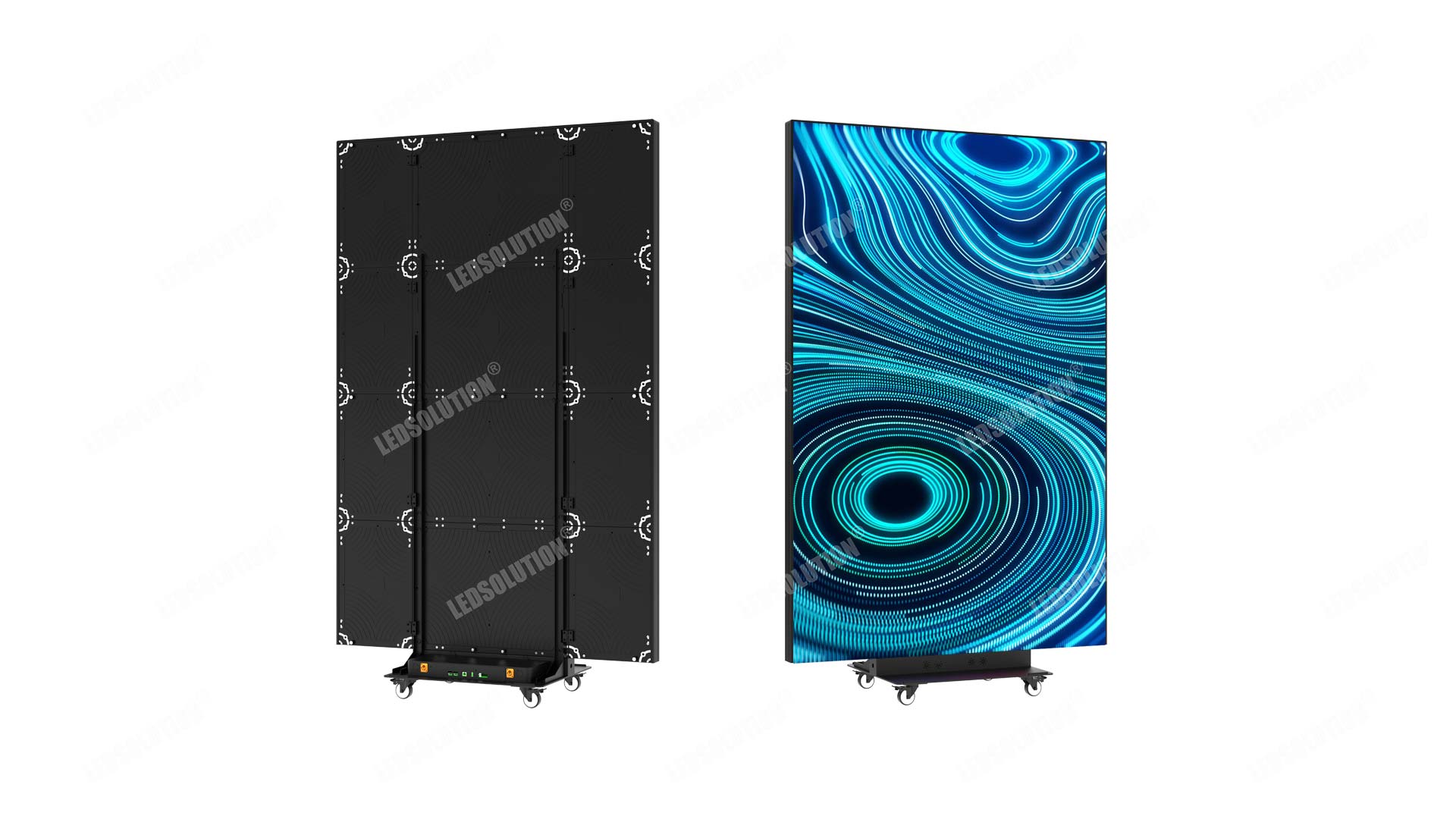

Multiple Configuration Options

The display supports a variety of screen configurations to meet different application needs. A single unit can be used as a full-size single-sided display, or configured into double-sided formats for enhanced visibility.

Available configurations include:

  • Single-sided: 1280mm × 1920mm
  • Double-sided: 640mm × 1920mm
  • Double-sided: 640mm × 960mm

This flexibility allows users to adapt the display to different environments without additional hardware.

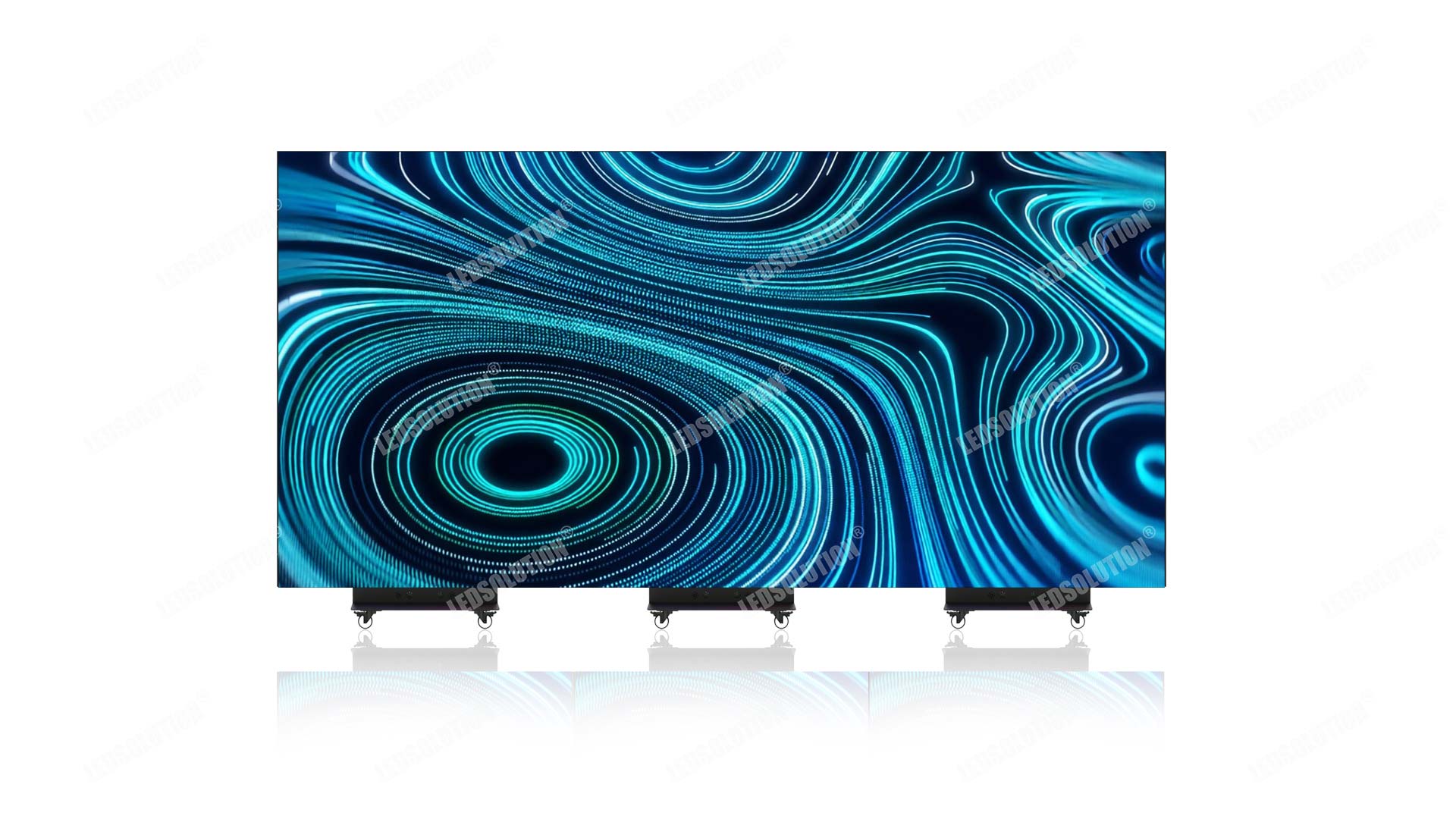

Seamless Splicing for Scalable Displays

Each LED poster can operate independently or be seamlessly connected with multiple units to create a larger display. The precise cabinet design ensures a smooth and gapless visual experience when combined.

Whether for a small standalone setup or a large-scale video wall, the system can be easily expanded by simply connecting additional units.

Quick Installation with Plug-and-Play Design

The 5-Fold LED Poster is pre-configured for fast deployment. Its plug-and-play design allows users to complete setup within minutes, without complex installation procedures.

This feature is particularly valuable for rental events, exhibitions, and temporary installations where time efficiency is critical.

Slim, Self-Standing, and Cost-Efficient

With a cabinet thickness of only 60mm, the display maintains a sleek and modern appearance while remaining lightweight and easy to handle.

The self-standing structure eliminates the need for additional support systems, helping reduce overall installation cost.

Superior Visual Performance

Equipped with multiple pixel pitch options ranging from 2.5mm to 1.25mm, the display ensures clear and sharp image quality for various viewing distances.

It supports GOB, SMD, and COB module technologies, delivering:

  • True and natural color reproduction
  • High brightness and contrast
  • Stable and consistent performance

These features ensure excellent visual results in indoor and semi-outdoor environments.

Reliable Structure and Long-Term Stability

The cabinet is made of high-quality die-cast aluminum, providing excellent structural strength and heat dissipation. Combined with full front service access, maintenance becomes faster and more convenient.

The product is engineered for long-term reliability, making it suitable for continuous operation in commercial applications.

Optimized for Transportation and Logistics

The foldable design significantly reduces the overall size for transport. After folding, the unit becomes compact and easy to handle, helping reduce shipping volume and cost.

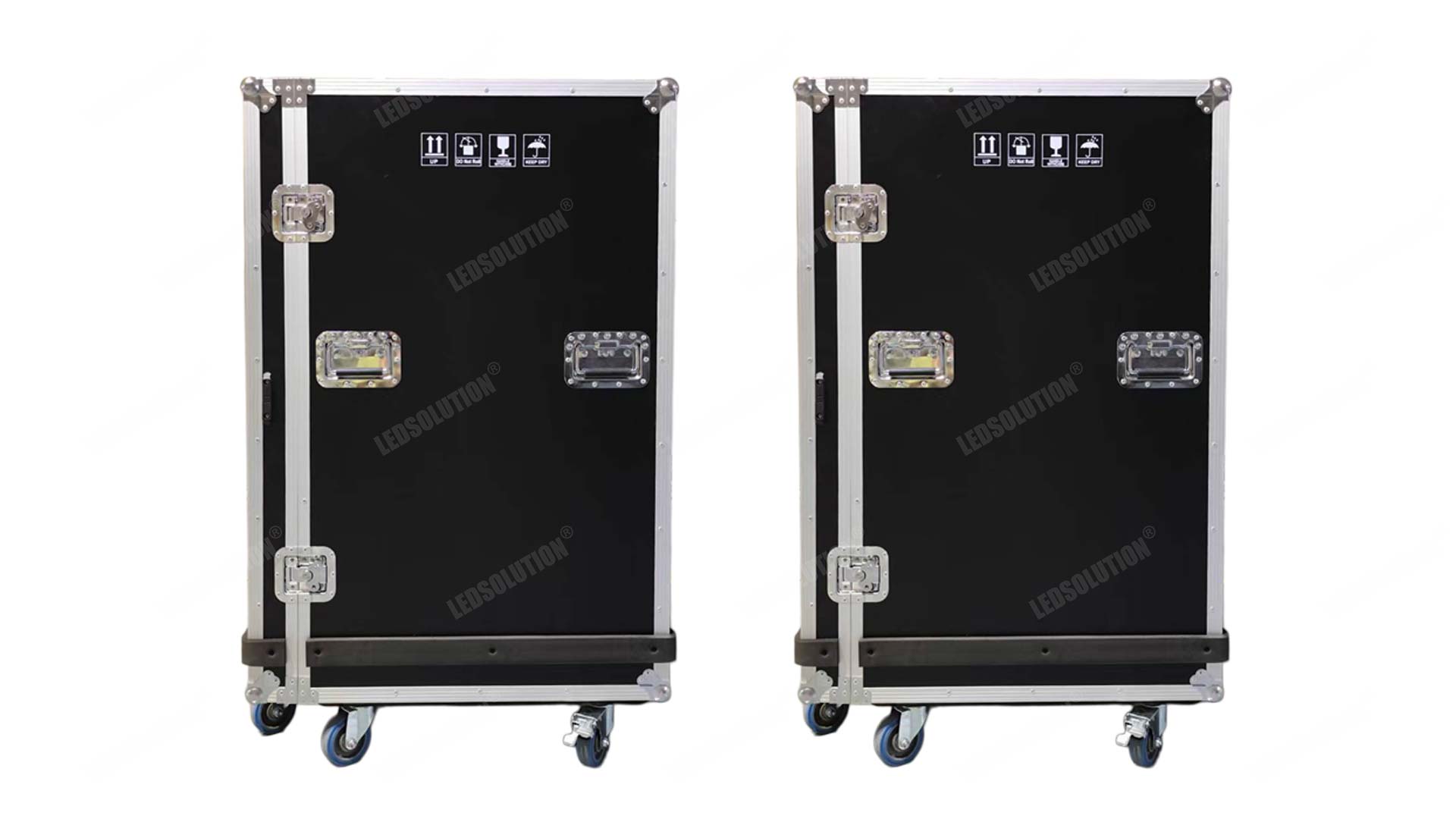

Flight case packaging is available to provide enhanced protection during transportation and ensure product safety.

Wide Range of Applications

The 5-Fold LED Poster is ideal for a variety of scenarios, including:

  • Retail stores and shopping malls
  • Corporate environments and showrooms
  • Exhibition halls and trade shows
  • Event rentals and temporary installations

Its flexibility, ease of use, and professional display performance make it a practical choice for diverse commercial applications.

5-Fold LED Poster Specification Sheet

ParameterValue
Product Series5-Fold LED Poster
ModelLS-5FPxx-1.28mx1.92m
PitchP1.25 / 1.5/ 1.86/ 2/ 2.5
ApplicationIndoor
Brightness 600nit
Color temperature 6500deg. K
Viewing angle – Horizontal140(-70 ~ +70) deg.
Viewing angle – Vertical140(-70 ~ +70)deg.
Module size(W*H)320*160mm
LED size(W*H)1280*1920mm
Overall Dimensions (with wheel base) Expanded1280*2085*470mm
Overall Dimensions (with wheel base) Folded656*1145*470mm
LED resolution1024*1536p / 832*1248p / 688*1032p / 640*960p / 512*768p
LED sq. meter2.46 SQM
Cabinet material Die-cast Aluminum
Cabinet weight 85 KG/set
Service accessFull front service
Ingress protection (front/rear) IP23/IP43
Front protectionGOB
Operating temperature range -30 to +60 deg. C
Humidity operating10% ~ 90% RH
Pixel type and configuration 3in1 SMD
Colors  281 Trillion
Grey scale (linear) 65536 levels per color
Brightness control 100Levels
Contrast ratio 5000:1
Processing depth 16bit
Video frame rate 60Hertz
Display refresh rate 3840Hertz
Input voltage (nominal) 110 or 220VAC
Input power frequency 50 to 60 Hertz
Input power (max) 1600 Watts/ set
Input power (typical)640 Watts/ set
Lifetime (50% brightness) ≥100000
Red wavelength (dominant) 620~625
Green wavelength (dominant) 525~530
Blue wavelength (dominant) 470~475
Multimedia data formatDVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
ControllerNOVA
InstallationSelf-stand with wheel base
