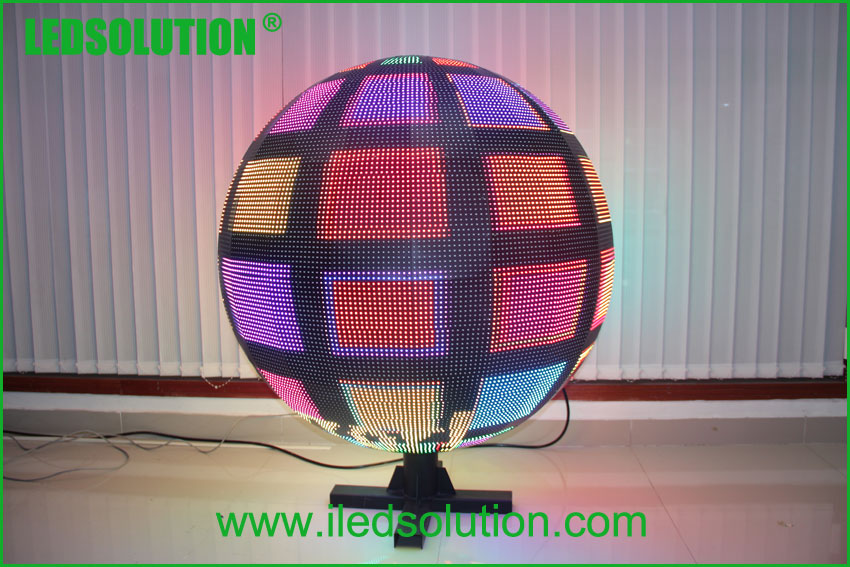

P10 LED Ball ( LED Sphere ) Diameter 1m
Model: LS-BALL-P10-D1
Application: Indoor Shopping mall, Bar, Club or Stage Use
Enquire us
Feature:
*?Pitch 10mm
* Creative Design
* Easy to maintain
* Indoor Application
* Diameter=1meter
Specification:?
| Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 1,800 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Net Weight | kg | 70 |
| Diameter | mm | 1,000 |
| Panel area | sq. m. | 3.14 |
| Operating temperature range | deg. C | -30 to +60 |
| Material | Steel | |
| Ingress protection (front/rear) | IP23 | |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3528 SMD |
| Dot per sq. meter | 10,000 | |
| LED per sq. meter | 10,000 | |
| Recommended minimum viewing distance | m | 7.6 |
| Recommended best viewing distance | m | 10~30 |
| Colors | 281 trillion | |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 600 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/panel | 2,000 |
| Input power (typical) | Watts/panel | 800 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Controller | DB Star | |
| Control way | Asynchronous & Synchronous | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Hanging & Stand on ground | |
| Package | Flight case | |
| Flight case size | m | 1.09*1.09*1.49 |
| Gross weight | kg | 310 |
| Volume Weight | kg | 370 |
Data Sheet:
Video:
Project Case:
