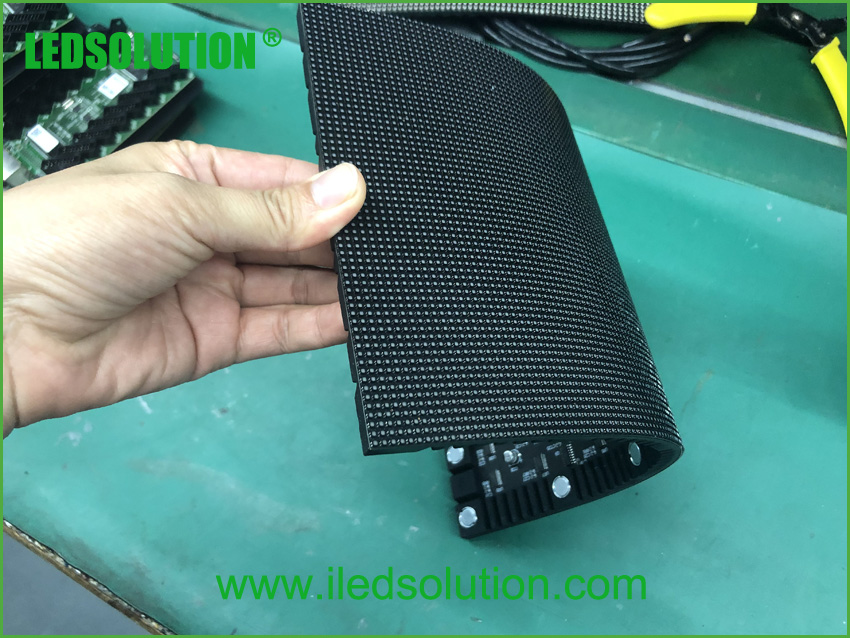

P2.5 Flexible LED Display

Model:LS-FM-P2.5

Application: Indoor Curve LED Display, Indoor Circle LED Display, Indoor Wavy LED Display

Product Features

  1. Bendable. Able to make various special shapes.
  2. Front service. Easy to maintain.
  3. Convenient for assembly and installation by fixing the modules to iron frame directly.
  4. High refresh rate 1920Hz.
  5. High definition models: 1.5mm,1.8mm, 2mm, 2.5mm, 3mm, 4mm
  6. Reliable quality, long life-time.

Specification

Parameter Value
Model LS-FM-P2.5
Application Indoor
Pitch 2.5mm
Pixel density 160000dot/sq.m
Brightness ≥800nit
Color temperature 6500deg. K
Viewing angle – Horizontal 140(-70 ~ +70) deg.
Viewing angle – Vertical 140(-70 ~ +70)deg.
Module size(W*H) 240*120mm/320*160mm
Module resolution(W*H) 96*48pixel/128*64pixel
Service access Front service
Min viewing distance 1.9m
Best viewing distance 2.5~100m
Cabinet size Customized
Contrast ratio 2000:1
Display refresh rate ≥1920Hertz
Input power (max) 600 Watts/ sqm
Input power (typical) 240 Watts/ sqm
