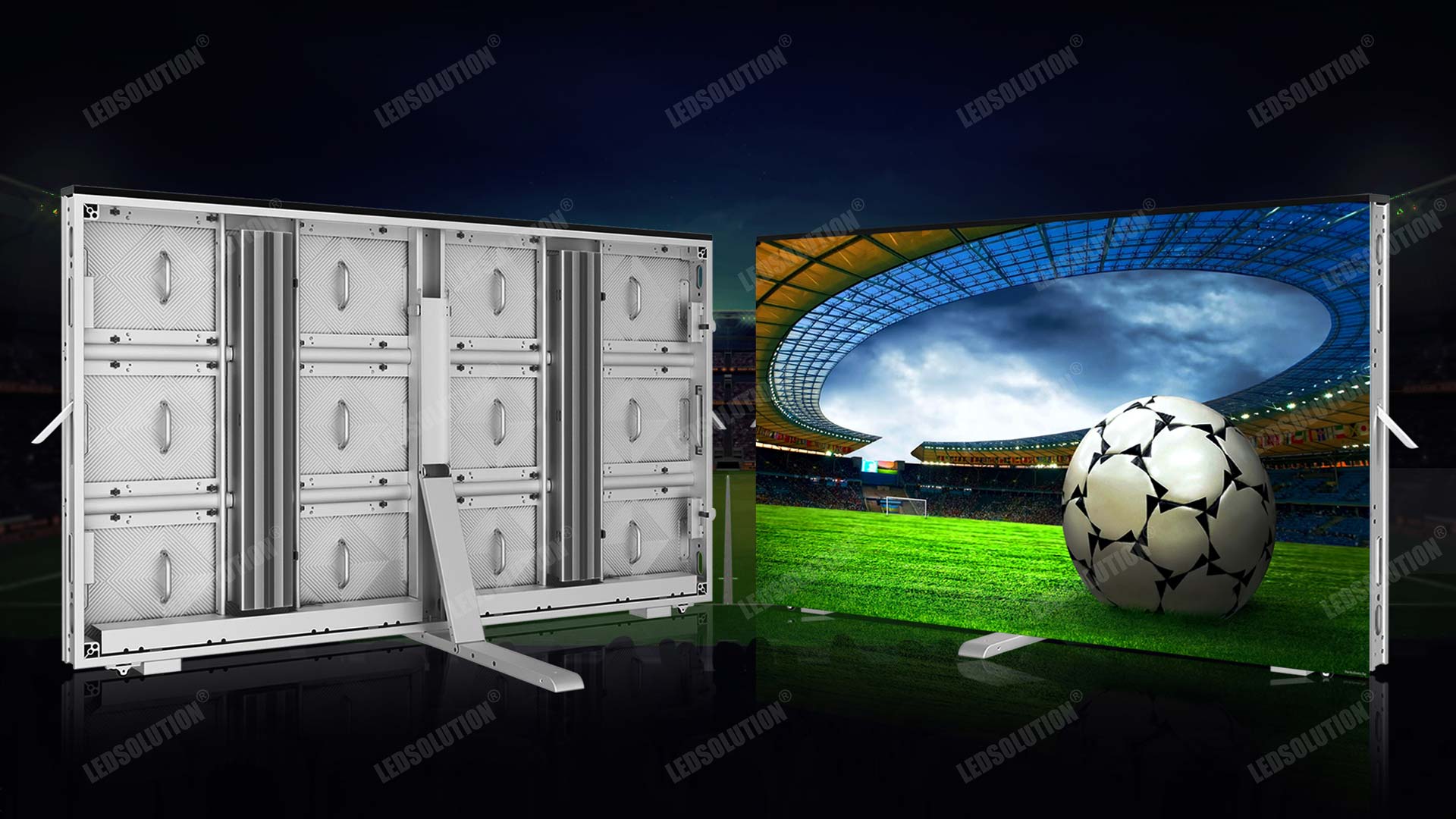

P160 Series UEFA LED Pitch Perimeter Boards
Model: P160-P4.16 / P160-P5 / P160-P6.25 / P160-P8.3 / P160-P10
Application: UEFA LED Pitch Perimeter Boards
The P160 Series UEFA LED Pitch Perimeter Boards from LEDSOLUTION meets the LED technical specifications of UEFA (Union of European Football Associations), a perimeter LED signage should follow when installed in UEFA‘s stadiums.
The UEFA LED Pitch Perimeter Boards should be quick and simple assembly & disassembly. Modules / cabinets must quick changeable less than 1 minute without affecting running system. Transport casing designed for efficient storage and shipping (for transportable systems). Complete system can fit into one standard European 40’ truck (for transportable systems). Control signal connection via two redundant feeding points. Fiber optic data cabling from dedicated controller locations to the two return side corners.
Data ring loop configured; if one connection fails an automatic switch activates data source from the opposite section.
Main Feature:

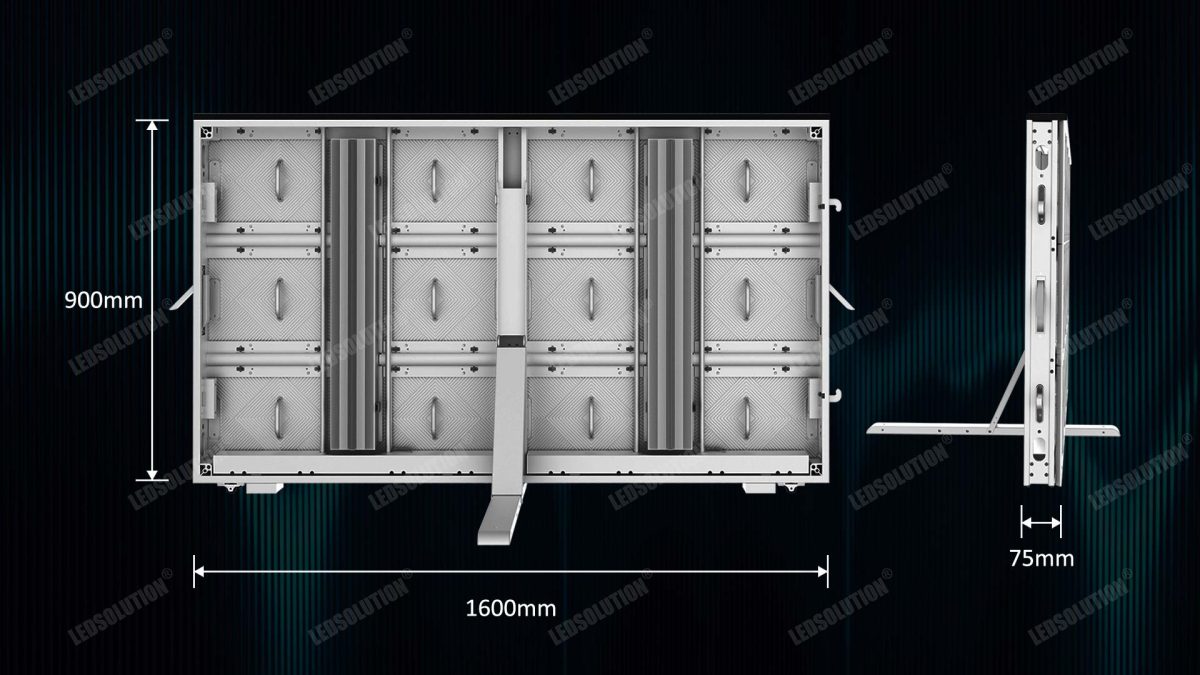

- Cabinet LED area size 1600*900mm

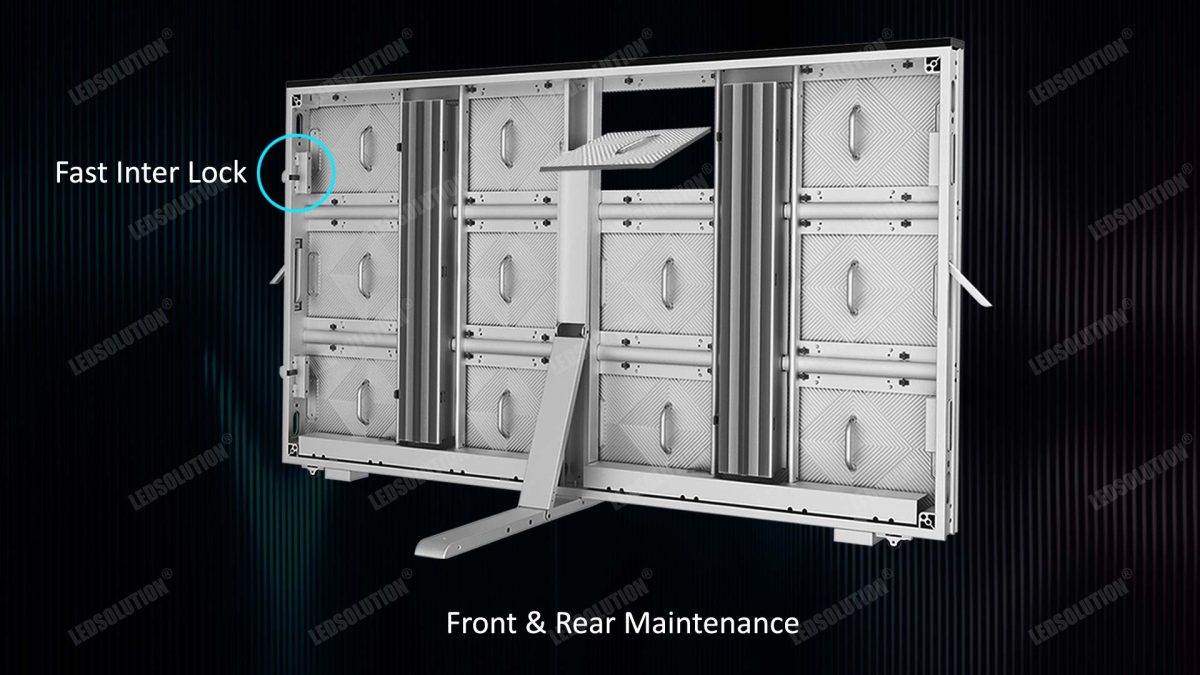

- Front & Back access
- Quick assembly design
- IP65/65
- 3840HZ High refresh rate

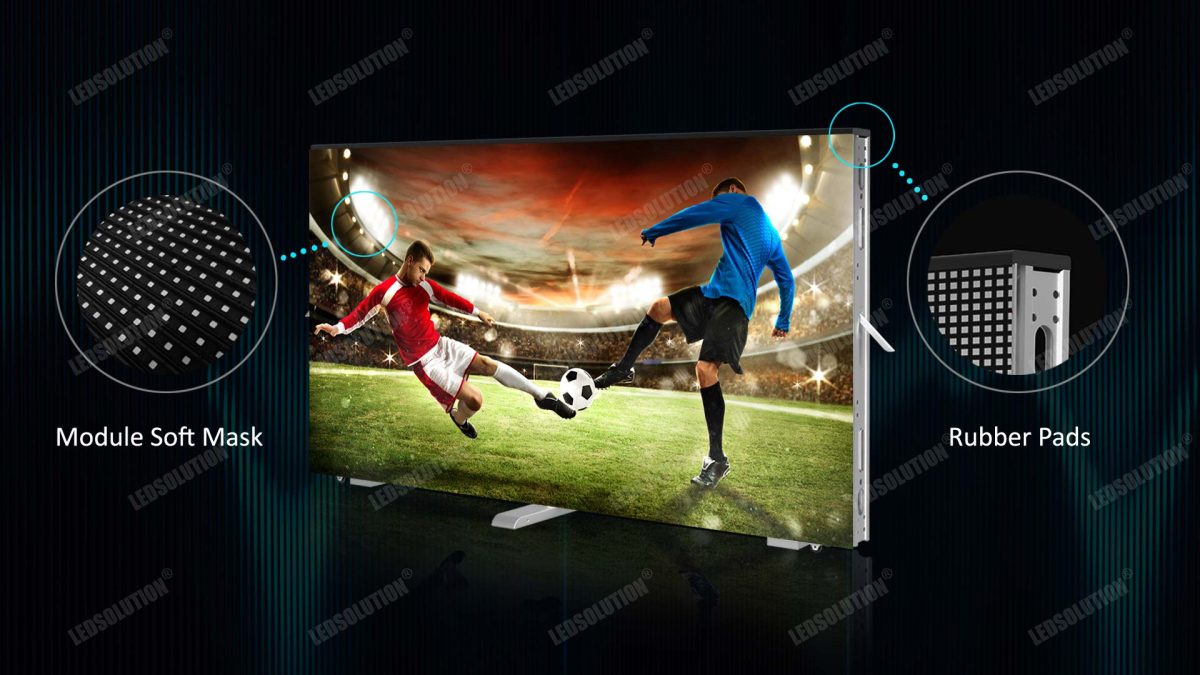

- Soft plastic mask and soft top protection
- Flight case package
Specification:
| Parameter | Value | Value | Value | Value | Value |
| Model | P160-P4.16 | P160-P5 | P160-P6.25 | P160-P8.3 | P160-P10 |
| Application | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Pitch | 4.16mm | 5mm | 6.25mm | 8.3mm | 10mm |
| Pixel density | 57600pixel | 40000pixel | 25600pixel | 14400pixel | 10000pixel |
| LED density | 57600pixel | 40000pixel | 25600pixel | 14400pixel | 10000pixel |
| Brightness | 6000nit | 6000nit | 6000nit | 6000nit | 6000nit |
| Color temperature | 6000deg. K | 6000deg. K | 6000deg. K | 6000deg. K | 6000deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. |
| Module size(W*H) | 400*300mm | 400*300mm | 400*300mm | 400*300mm | 400*300mm |
| Module resolution(W*H) | 96*72pixel | 80*60pixel | 64*48pixel | 48*36pixel | 40*30pixel |
| Module front protection | Soft Rubber Mask | Soft Rubber Mask | Soft Rubber Mask | Soft Rubber Mask | Soft Rubber Mask |
| LED Area size(W*H) | 1600*900mm | 1600*900mm | 1600*900mm | 1600*900mm | 1600*900mm |
| Cabinet size(W*H*D) | 1600*975*98mm | 1600*975*98mm | 1600*975*98mm | 1600*975*98mm | 1600*975*98mm |
| Cabinet sq. meter (LED Area) | 1.4400SQ.M | 1.4400SQ.M | 1.4400SQ.M | 1.4400SQ.M | 1.4400SQ.M |
| Cabinet resolution(W*H) | 384*216pixel | 320*180pixel | 256*144pixel | 192*108pixel | 160*90pixel |
| Cabinet material | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile | Aluminum profile |
| Cabinet weight | 42KG | 42KG | 42KG | 42KG | 42KG |
| Cabinet mode | Outdoor Stadium Perimeter | Outdoor Stadium Perimeter | Outdoor Stadium Perimeter | Outdoor Stadium Perimeter | Outdoor Stadium Perimeter |
| Cabinet top protection | Soft EVA bar protection | Soft EVA bar protection | Soft EVA bar protection | Soft EVA bar protection | Soft EVA bar protection |
| Service access | Front & Back Service | Front & Back Service | Front & Back Service | Front & Back Service | Front & Back Service |
| Ingress protection (front/rear) | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 |
| Operating temperature range | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Recommended minimum viewing distance | 3.16m | 3.80m | 4.75m | 6.31m | 7.60m |
| Recommended best viewing distance | 4.16~500m | 5~500m | 6.25~500m | 8.3~500m | 10~500m |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion |
| Grey scale (linear) | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color |
| Brightness control | 100Levels | 100Levels | 100Levels | 100Levels | 100Levels |
| Contrast ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Processing depth | 16bit | 16bit | 16bit | 16bit | 16bit |
| Video frame rate | 60Hertz | 60Hertz | 60Hertz | 60Hertz | 60Hertz |
| Display refresh rate | 1920HZ / 3840Hertz | 1920HZ / 3840Hertz | 1920HZ / 3840Hertz | 1920HZ / 3840Hertz | 1920HZ / 3840Hertz |
| Input voltage (nominal) | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz |
| Input power (max) | 800W/SQ.M | 800W/SQ.M | 800W/SQ.M | 800W/SQ.M | 800W/SQ.M |
| Input power (typical) | 320W/SQ.M | 320W/SQ.M | 320W/SQ.M | 320W/SQ.M | 320W/SQ.M |
| Lifetime (50% brightness) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Red wavelength (dominant) | 620~625 | 620~625 | 620~625 | 620~625 | 620~625 |
| Green wavelength (dominant) | 525~530 | 525~530 | 525~530 | 525~530 | 525~530 |
| Blue wavelength (dominant) | 470~475 | 470~475 | 470~475 | 470~475 | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber |

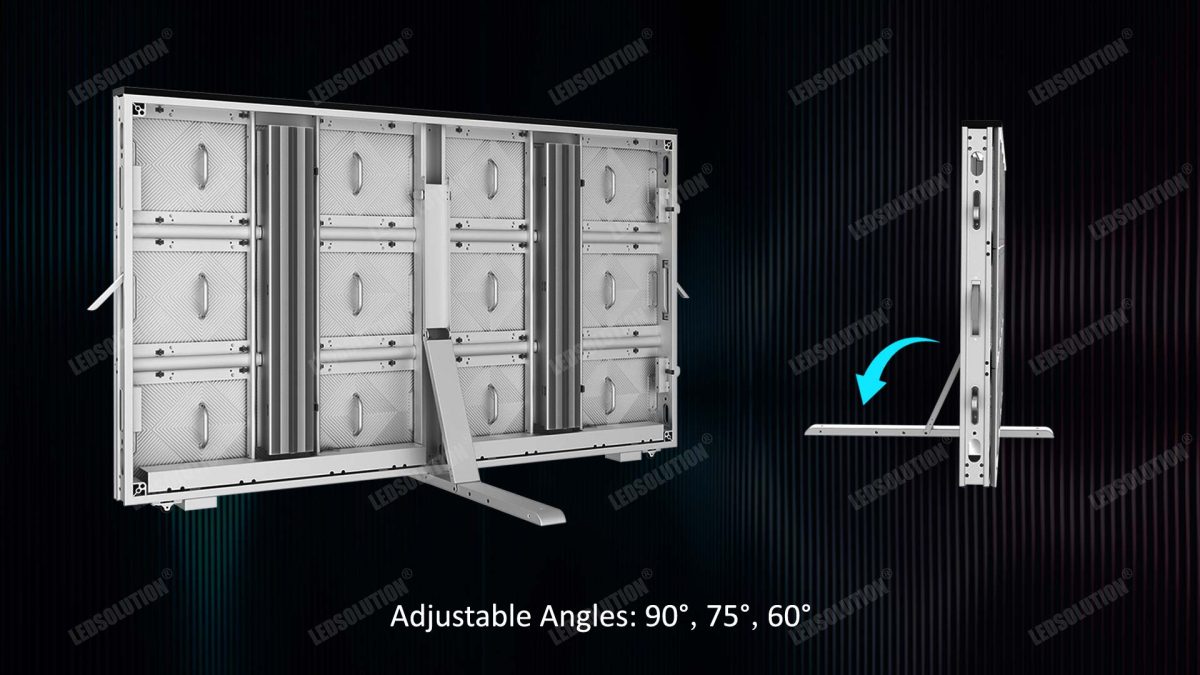

| Mounting system | Self-stand on ground by bracket | Self-stand on ground by bracket | Self-stand on ground by bracket | Self-stand on ground by bracket | Self-stand on ground by bracket |
| Controller | NOVA | NOVA | NOVA | NOVA | NOVA |
