P10 Outdoor Rental LED Display
The model LS-DO-P10-0.64mx0.64m P10 Outdoor Rental LED Display is the lightest outdoor led display in the world. The average weight of each square meter is 26kg per square meter.

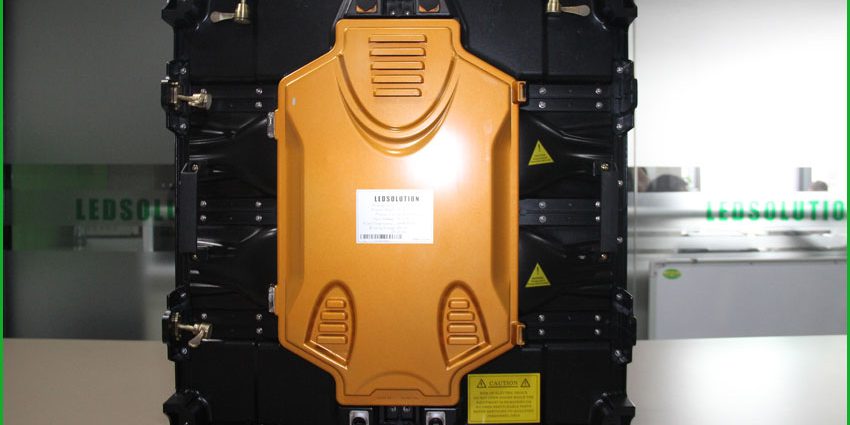

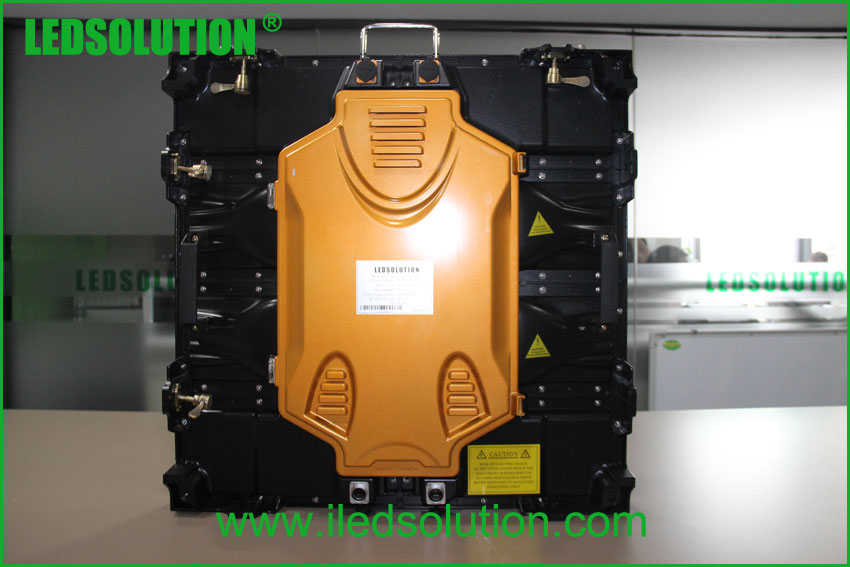

P10 Outdoor Rental LED Display Cabinet pictures:

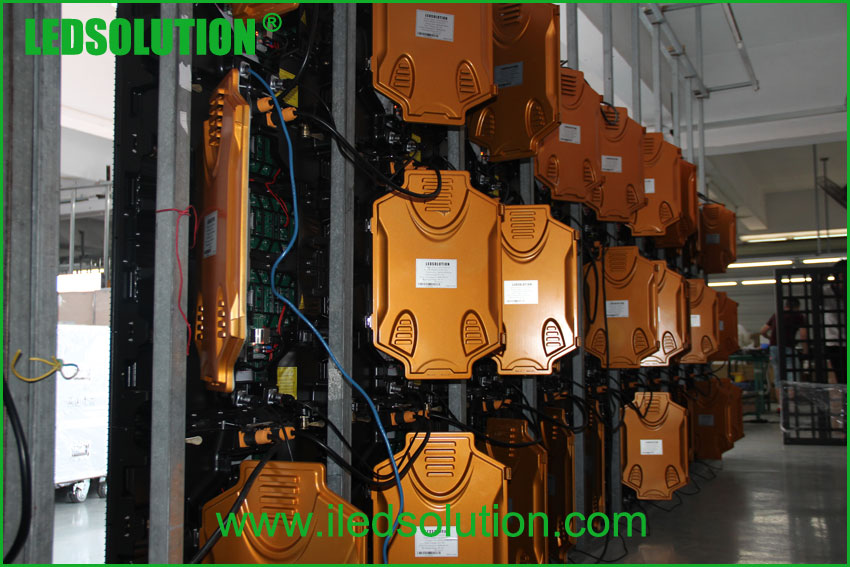

P10 Outdoor Rental LED Display pictures:
P10 Outdoor Rental LED Display Flight case pictures:
P10 Outdoor Rental LED Display LS-DO-P10-0.64mx0.64m Specification:
| Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 6,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 10.5 |
| Panel width | mm | 640 |
| Panel height | mm | 640 |
| Panel depth | mm | 90 |
| Panel area | sq. m. | 0.4096 |
| Panel material | Die-cast Aluminum Magnesium Alloy | |
| Panel Mode | Rental | |
| Ingress Protection (front/rear) | IP65/43 | |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel | 64×64 | |
| Dot per panel | 4,096 | |
| Dot per sq. meter | 10,000 | |
| LED per sq. meter | 10,000 | |
| Recommended minimum viewing distance | m | 7.6 |
| Recommended best viewing distance | m | 10~30 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 256 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel. | 300 |
| Input power (typical) | Watts / panel. | 120 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Hanging / Fixed |
