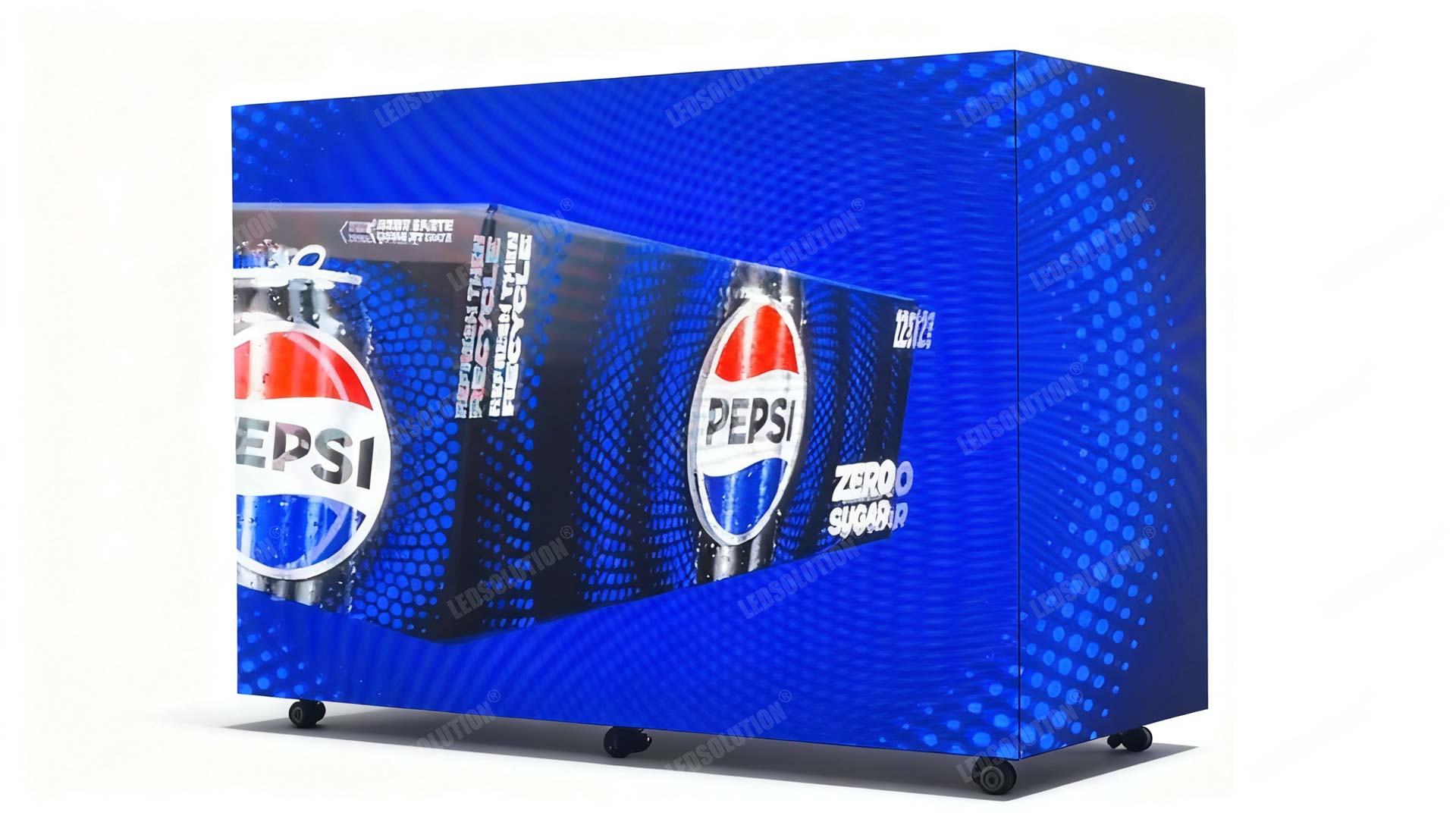

LED Counter | COUNTER-B Series (U-Shaped Right-Angle LED Reception Desk)

The COUNTER-B Series LED Reception Desk is a U-shaped right-angle LED counter designed for modern exhibition booths, retail spaces, and commercial reception environments. With its open U-shaped structure and precise 90-degree corner design, it creates a strong visual presence while maintaining a clean and organized layout for user interaction.

The display is formed using a flat LED surface combined with seamless right-angle transitions, ensuring smooth visual continuity across all sides. Each corner is engineered to achieve a precise 90-degree angle, delivering a sharp and professional appearance without visible gaps or distortion.

With pixel pitch options of 1.9mm and 2.6mm, the COUNTER-B provides flexibility for different viewing distances and application requirements. The display maintains clear and consistent image quality, making it suitable for close-range indoor use.

Constructed with a durable steel cabinet structure, the system ensures long-term stability and reliable performance in high-traffic environments such as exhibitions and retail stores. The flat screen design further enhances content readability and presentation clarity.

The COUNTER-B supports both front and rear service access, allowing flexible installation and maintenance based on site conditions. Integrated wheels enable easy movement and repositioning, making it ideal for both temporary setups and permanent installations.

The system is designed for plug-and-play operation, allowing quick setup without complex configuration. Content updates are simple and efficient, supporting wireless control via WiFi from mobile phones, tablets, or computers, enabling users to manage display content anytime with ease.

The maximum overall dimensions are 1634 × 817 × 1087 mm (L × W × H), making it compact yet highly functional for various space layouts.

For transportation and protection, the product is packaged in a flight case, ensuring safety and convenience during shipping and repeated use.

A GOB (Glue on Board) module option is available to enhance surface protection, improving resistance to impact, dust, and moisture, especially in demanding environments.

In addition, the modular design allows customization of screen size and structural layout, enabling the product to adapt to different booth designs and spatial requirements.

COUNTER-B Technical Overview

• Pixel Pitch Options: 1.9mm / 2.6mm
• Structure: U-shaped layout with precise 90° right-angle corners
• Display Surface: Flat and seamless LED screen
• Cabinet Material: Steel
• Maximum overall dimensions option 1 : 1507 × 505.8 × 1110 mm (L × W × H) (includes tabletop, excluding storage cabinet)
• Maximum overall dimensions option 2 : 1508 × 525 × 1130 mm (L × W × H) (includes storage cabinet)
• Service Access: Front service and rear service supported
• Mobility: Integrated wheels for easy movement
• System: Plug-and-play for fast deployment
• Control: Wireless content management via WiFi (mobile, tablet, or PC)
• Protection Option: GOB module available
• Packaging: Flight case for secure transport
• Installation: Modular design for flexible configuration
• Performance: Stable and reliable for continuous commercial use

COUNTER-B Key Features

• U-shaped LED counter design for interactive spaces
• Precise 90° right-angle corner structure
• Seamless flat display surface across all sides
• Flexible pixel pitch options for different applications
• Supports both front and rear maintenance
• Easy to move with integrated wheels
• Plug-and-play for quick setup
• Easy content updates via WiFi control
• Flight case included for safe transport
• Optional GOB protection for enhanced durability
• Customizable size and layout
• Suitable for exhibitions, retail, and reception areas

COUNTER-B Specification Sheet

Screen Parameter	Value	Value
Product Series	COUNTER-B	COUNTER-B
Model	COUNTER-B-P1.9	COUNTER-B-P2.6
Pixel Pitch	1.9mm	2.6mm
Application	Indoor	Indoor
Screen size (W*H)	(500+1500+500)mm * 1000mm	(500+1500+500)mm * 1000mm
Screen resolution	1280*512pixels	960*384 pixels
Display area	2.5 sqm	2.5 sqm
Screen Input power	Max 1500W, Average 600W	Max 1500W, Average 600W
Screen weight	74kg	74kg
Pixel density	262144 pixels/sqm	147456 pixels/sqm
Brightness	800nits	800nits
Display refresh rate	3840Hertz	3840Hertz
Color temperature	6500 deg. K	6500 deg. K
Viewing angle	140° Horizontal, 140° Vertical	140° Horizontal, 140° Vertical
Cabinet material	Steel	Steel
Service access	Front service	Front service
Ingress protection (front/rear)	IP23/43	IP23/43
Operating temperature range	-30 to +60 deg. C	-30 to +60 deg. C
Humidity operating	10% ~ 90% RH	10% ~ 90% RH
Pixel type and configuration	3in1 SMD	3in1 SMD
Recommended minimum viewing distance	1.5m	2m
Recommended best viewing distance	2~100m	2.6~100m
Colors	281 Trillion	281 Trillion
Grey scale (linear)	65536 levels per color	65536 levels per color
Brightness control	256 Levels	256 Levels
Contrast ratio	5000:1	5000:1
Processing depth	16 bit	16 bit
Video frame rate	60 Hertz	60 Hertz
Input voltage (nominal)	110 or 220 VAC	110 or 220 VAC
Input power frequency	50 to 60 Hertz	50 to 60 Hertz
Lifetime (50% brightness)	≥100000 Hours	≥100000 Hours
Red wavelength (dominant)	620~625 nm	620~625 nm
Green wavelength (dominant)	525~530 nm	525~530 nm
Blue wavelength (dominant)	470~475 nm	470~475 nm
Multimedia data format	DVI,MPG,AVI,WMV,RM etc.	DVI,MPG,AVI,WMV,RM etc.
Controller	NOVA	NOVA
Data interconnection	HDMI/WIFI/USB	HDMI/WIFI/USB
Packaging	Flight case	Flight case
Gross weight(screen and flight case)	141kg	141kg
