P6 Outdoor Rental LED Display

Model: LS-DO-P6-0.576mx0.576m

Application: Outdoor Rental or Fixed Installation (SMD)

Enquire us

Feature:

  1. Light weight,one person is able to carry one cabinet and install easiy.It makes the screen convenient in assmbly and transport.
  2. Urtra Thin,the depth of the cabinet is less than 91mm.

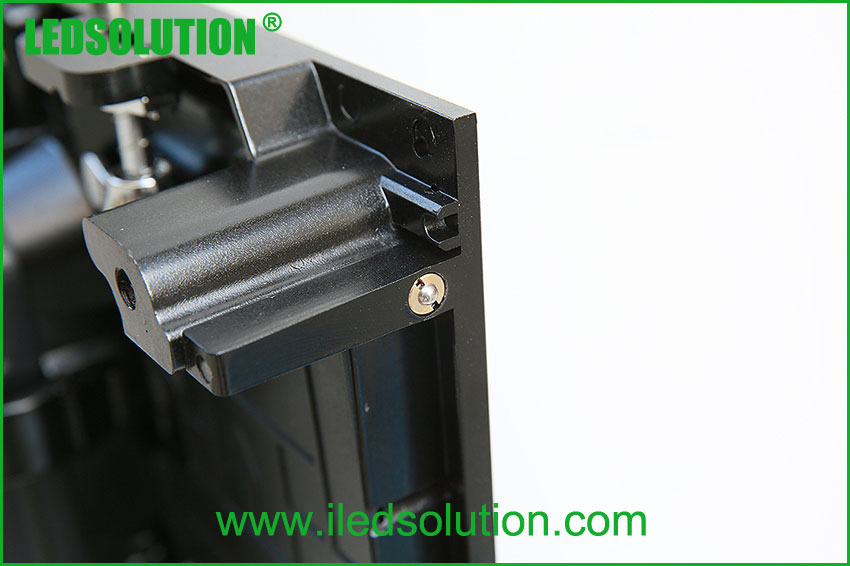

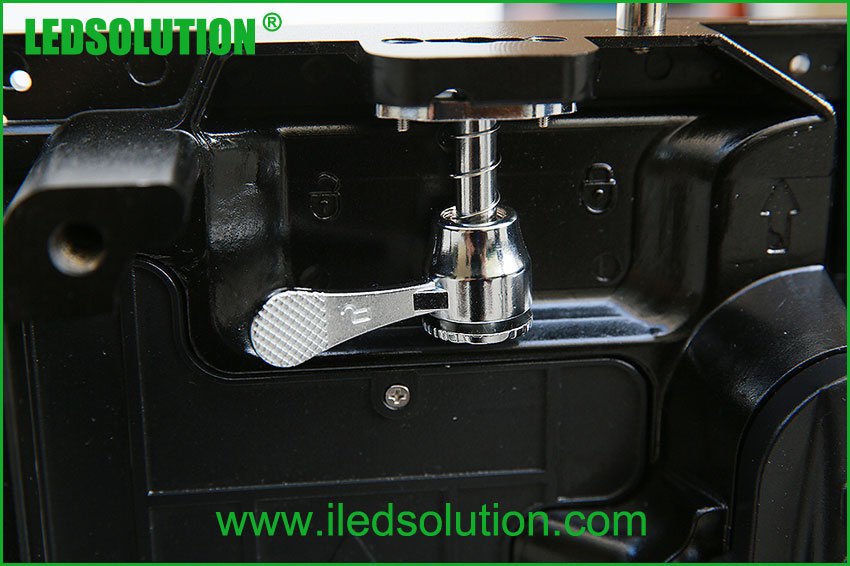

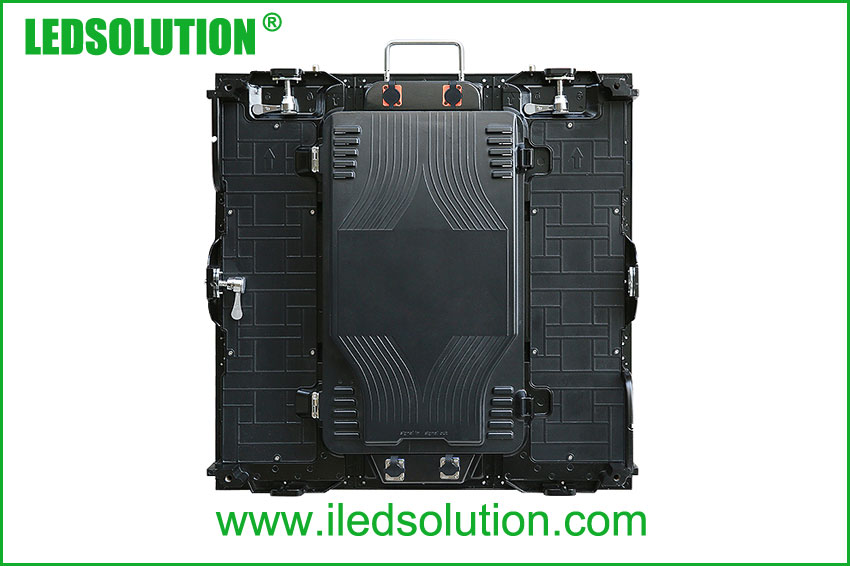

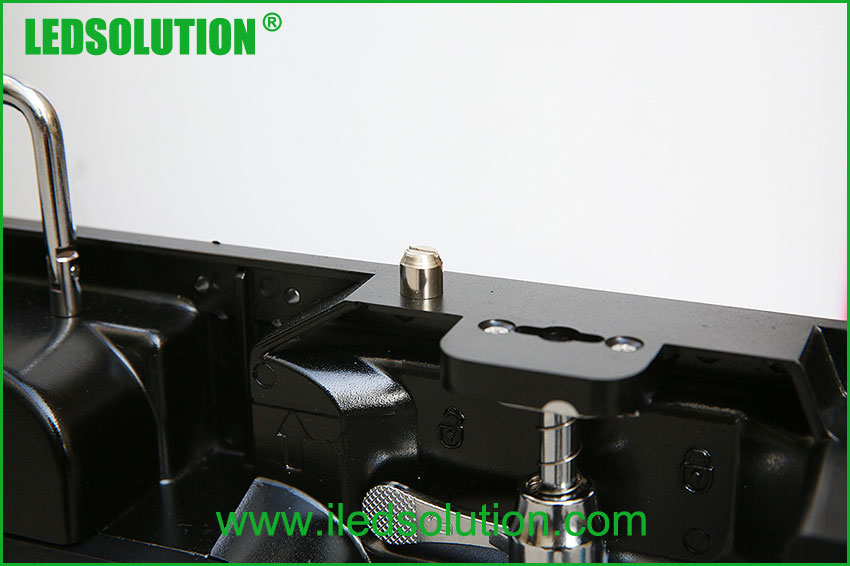

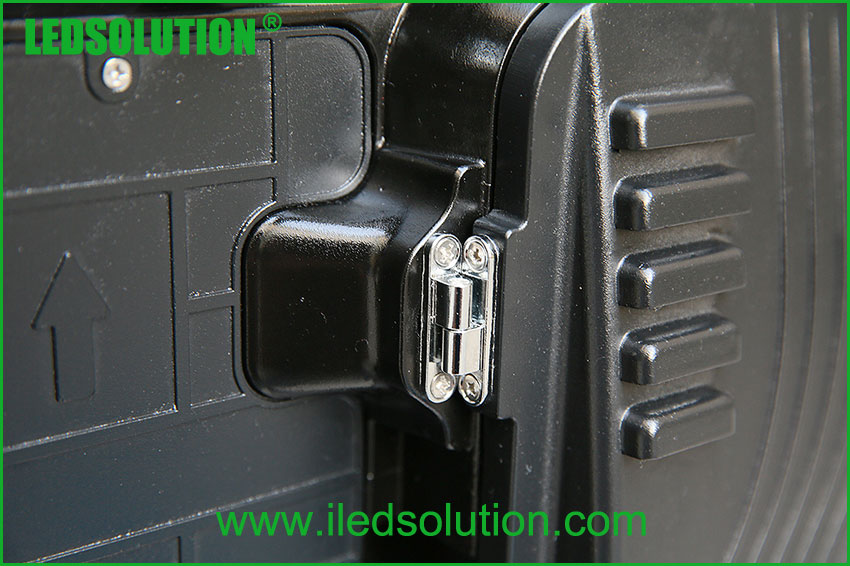

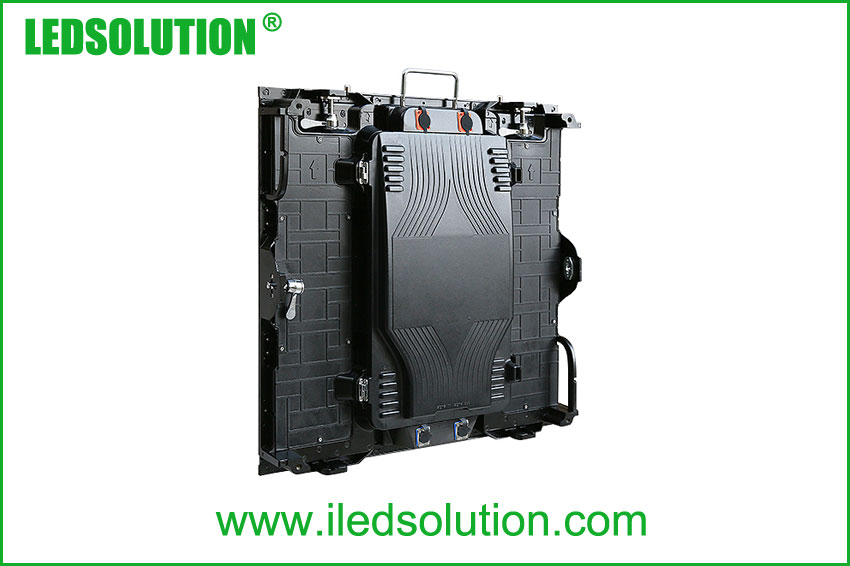

  3. Seanless assembly,the whole cabinet is die-cast.
  4. State-of-art 2727 3in1 Outdoor SMD.

Specification:



Parameter Unit Value
Pitch mm 6
Brightness nits 6,000
Color temperature deg. K 6,500
Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle – Vertical (50% brightness) deg. 140(-70 ~ +70)
Panel weight kg 9
Panel width mm 576
Panel height mm 576
Panel depth mm 91
Panel area sq. m. 0.332
Panel material Aluminum magnesium alloy
Panel Mode Die-Cast rental
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 3535 SMD
Resolution per panel 96×96
Dot per panel 9,216
Dot per sq. meter 27,778
LED per sq. meter 27,778
Recommended minimum viewing distance m 4.5
Recommended best viewing distance m 6~18
Colors 281 Trillion
Grey scale (linear) Levels 65,536 levels per color
Brightness control Levels 256
Contrast ratio 1,000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3,000
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts / panel. 300
Input power (typical) Watts / panel. 120
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
Mounting system Hanging / Fixed





Download:

LS-DO-P6-0.576mx0.576m.pdf
