A Rental LED Display Series include indoor and outdoor products. Outdoor P3.91 has brigtness option of 6000nit.
LEDSOLUTION R6 Series is a rental product that can make flat, curved, cylinder LED Display. Outdoor P3.91 has brigtness option of 6000nit..
Key Feature
- Cabinet size (W*H*D):
500mm*500mm*85mm /500mm*1000mm*85mm - Available pixel pitch:
Indoor 1.9mm, 2.6mm, 2.98mm, 3.91mm, 4.81mm
Outdoor 2.6mm, 2.98mm, 3.91mm, 4.81mm
- Thin & lightweight.
Cabinet thickness: 85mm - Easy & fast to set up and dismantle the cabinets.
- Flexible to create different screen shapes.

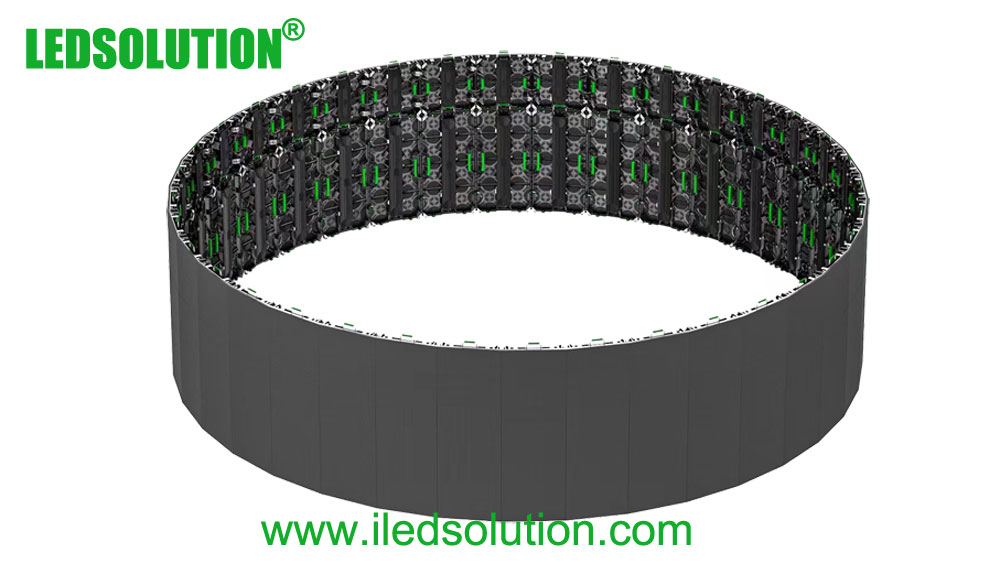

With ±15 degree adjustable radian lock, it can make flat screen, curved screen (convex or concave), wave screen. - Excellent image performance.
- Reliable and durable.
Main applications: rental, stage events, activity centers, exhibition, etc.
R6 Series Rental LED Display Specification
Indoor – 500x500mm
| LED Cabinet Parameter | Value | Value | Value | Value | Value |
| Model | LS-DI-P1.9-0.5mx0.5m-R6 | LS-DI-P2.6-0.5mx0.5m-R6 | LS-DI-P2.98-0.5mx0.5m-R6 | LS-DI-P3.91-0.5mx0.5m-R6 | LS-DI-P4.81-0.5mx0.5m-R6 |
| Application | Indoor | Indoor | Indoor | Indoor | Indoor |
| Pitch | 1.95mm | 2.60mm | 2.98mm | 3.91mm | 4.81mm |
| Pixel density | 262144pixel/sq.m | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| LED density | 262144pixel/sq.m | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| Brightness | 1000nit | 1000nit | 1000nit | 1000nit | 1000nit |
| Color temperature | 6500deg. K | 6500deg. K | 6500deg. K | 6500deg. K | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. |
| Module size(W*H) | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size(W*H) | 500*500mm | 500*500mm | 500*500mm | 500*500mm | 500*500mm |
| Cabinet depth | 85mm | 85mm | 85mm | 85mm | 85mm |
| Cabinet sq. meter | 0.25sq.m | 0.25sq.m | 0.25sq.m | 0.25sq.m | 0.25sq.m |
| Cabinet resolution(W*H) | 256*256pixel | 192*192pixel | 168*168pixel | 128*128pixel | 104*104pixel |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet weight | 7.5kg/cabinet | 7.5kg/cabinet | 7.5kg/cabinet | 7.5kg/cabinet | 7.5kg/cabinet |
| Cabinet mode | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation |
| Service access | Back / Front Service | Back / Front Service | Back / Front Service | Back / Front Service | Back / Front Service |
| Ingress protection (front/rear) | IP23/43 | IP23/43 | IP23/43 | IP23/43 | IP23/43 |
| Operating temperature range | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Recommended minimum viewing distance | 1.5m | 2.0m | 2.3m | 3.0m | 3.7m |
| Recommended best viewing distance | 1.95~200m | 2.604~200m | 2.98~200m | 3.91~200m | 4.81~200m |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion |
| Grey scale (linear) | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color |
| Brightness control | 100Levels | 100Levels | 100Levels | 100Levels | 100Levels |
| Contrast ratio | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
| Processing depth | 16bit | 16bit | 16bit | 16bit | 16bit |
| Video frame rate | 60Hertz | 60Hertz | 60Hertz | 60Hertz | 60Hertz |
| Display refresh rate | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ |
| Input voltage (nominal) | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz |
| Input power (max) | 600 Watts/sqm | 600 Watts/sqm | 600 Watts/sqm | 600 Watts/sqm | 600 Watts/sqm |
| Input power (typical) | 240 Watts/sqm | 240 Watts/sqm | 240 Watts/sqm | 240 Watts/sqm | 240 Watts/sqm |
| Lifetime (50% brightness) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Red wavelength (dominant) | 620~625nm | 620~625nm | 620~625nm | 620~625nm | 620~625 |
| Green wavelength (dominant) | 525~530nm | 525~530nm | 525~530nm | 525~530nm | 525~530 |
| Blue wavelength (dominant) | 470~475nm | 470~475nm | 470~475nm | 470~475nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber |
| Controller | NOVA | NOVA | NOVA | NOVA | NOVA |
R6 Series Rental LED Display Specification
Outdoor – 500x500mm
| LED Cabinet Parameter | Value | Value | Value | Value |
| Model | LS-DO-P2.6-0.5mx0.5m-R6 | LS-DO-P2.98-0.5mx0.5m-R6 | LS-DO-P3.91-0.5mx0.5m-R6 | LS-DO-P4.81-0.5mx0.5m-R6 |
| Application | Outdoor | Outdoor | Outdoor | Outdoor |
| Pitch | 2.60mm | 2.98mm | 3.91mm | 4.81mm |
| Pixel density | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| LED density | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| Brightness | 4000nit | 4000nit | 4000/6000nit | 4000nit |
| Color temperature | 6500deg. K | 6500deg. K | 6500deg. K | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. |
| Module size(W*H) | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size(W*H) | 500*500mm | 500*500mm | 500*500mm | 500*500mm |
| Cabinet depth | 85mm | 85mm | 85mm | 85mm |
| Cabinet sq. meter | 0.25sq.m | 0.25sq.m | 0.25sq.m | 0.25sq.m |
| Cabinet resolution(W*H) | 192*192pixel | 168*168pixel | 128*128pixel | 104*104pixel |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet weight | 8kg/cabinet | 8kg/cabinet | 8kg/cabinet | 8kg/cabinet |
| Cabinet mode | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation |
| Service access | Back Service | Back Service | Back Service | Back Service |
| Ingress protection (front/rear) | IP23/43 | IP65/65 | IP65/65 | IP65/65 |
| Operating temperature range | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Recommended minimum viewing distance | 2.0m | 2.3m | 3.0m | 3.7m |
| Recommended best viewing distance | 2.604~200m | 2.98~200m | 3.91~200m | 4.81~200m |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion |
| Grey scale (linear) | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color |
| Brightness control | 100Levels | 100Levels | 100Levels | 100Levels |
| Contrast ratio | 3000:1 | 2000:1 | 2000:1 | 2000:1 |
| Processing depth | 16bit | 16bit | 16bit | 16bit |
| Video frame rate | 60Hertz | 60Hertz | 60Hertz | 60Hertz |
| Display refresh rate | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ |
| Input voltage (nominal) | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz |
| Input power (max) | 800 Watts/sqm | 800 Watts/sqm | 800 Watts/sqm | 800 Watts/sqm |
| Input power (typical) | 320 Watts/sqm | 320 Watts/sqm | 320 Watts/sqm | 320 Watts/sqm |
| Lifetime (50% brightness) | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Red wavelength (dominant) | 620~625nm | 620~625nm | 620~625nm | 620~625nm |
| Green wavelength (dominant) | 525~530nm | 525~530nm | 525~530nm | 525~530nm |
| Blue wavelength (dominant) | 470~475nm | 470~475nm | 470~475nm | 470~475nm |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber |
| Controller | NOVA | NOVA | NOVA | NOVA |
R6 Series Rental LED Display Specification
Indoor – 500x1000mm
| LED Cabinet Parameter | Value | Value | Value | Value | Value |
| Model | LS-DI-P1.9-0.5mx1m-R6 | LS-DI-P2.6-0.5mx1m-R6 | LS-DI-P2.98-0.5mx1m-R6 | LS-DI-P3.91-0.5mx1m-R6 | LS-DI-P4.81-0.5mx1m-R6 |
| Application | Indoor | Indoor | Indoor | Indoor | Indoor |
| Pitch | 1.95mm | 2.60mm | 2.98mm | 3.91mm | 4.81mm |
| Pixel density | 262144pixel/sq.m | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| LED density | 262144pixel/sq.m | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| Brightness | 1000nit | 1000nit | 1000nit | 1000nit | 1000nit |
| Color temperature | 6500deg. K | 6500deg. K | 6500deg. K | 6500deg. K | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. |
| Module size(W*H) | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size(W*H) | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm |
| Cabinet depth | 85mm | 85mm | 85mm | 85mm | 85mm |
| Cabinet sq. meter | 0.50sq.m | 0.50sq.m | 0.50sq.m | 0.50sq.m | 0.50sq.m |
| Cabinet resolution(W*H) | 256*512pixel | 192*384pixel | 168*332pixel | 128*256pixel | 104*208pixel |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet weight | 13.5kg/cabinet | 13.5kg/cabinet | 13.5kg/cabinet | 13.5kg/cabinet | 13.5kg/cabinet |
| Cabinet mode | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation |
| Service access | Back / Front Service | Back / Front Service | Back / Front Service | Back / Front Service | Back / Front Service |
| Ingress protection (front/rear) | IP23/43 | IP23/43 | IP23/43 | IP23/43 | IP23/43 |
| Operating temperature range | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Recommended minimum viewing distance | 1.5m | 2.0m | 2.3m | 3.0m | 3.7m |
| Recommended best viewing distance | 1.95~200m | 2.6~200m | 2.98~200m | 3.91~200m | 4.81~200m |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion |
| Grey scale (linear) | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color |
| Brightness control | 100Levels | 100Levels | 100Levels | 100Levels | 100Levels |
| Contrast ratio | 3000:1 | 3000:1 | 3000:1 | 3000:1 | 3000:1 |
| Processing depth | 16bit | 16bit | 16bit | 16bit | 16bit |
| Video frame rate | 60Hertz | 60Hertz | 60Hertz | 60Hertz | 60Hertz |
| Display refresh rate | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ |
| Input voltage (nominal) | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz |
| Input power (max) | 600 Watts/sqm | 600 Watts/sqm | 600 Watts/sqm | 600 Watts/sqm | 600 Watts/sqm |
| Input power (typical) | 240 Watts/sqm | 240 Watts/sqm | 240 Watts/sqm | 240 Watts/sqm | 240 Watts/sqm |
| Lifetime (50% brightness) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Red wavelength (dominant) | 620~625nm | 620~625nm | 620~625nm | 620~625nm | 620~625nm |
| Green wavelength (dominant) | 525~530nm | 525~530nm | 525~530nm | 525~530nm | 525~530nm |
| Blue wavelength (dominant) | 470~475nm | 470~475nm | 470~475nm | 470~475nm | 470~475nm |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber |
| Controller | NOVA | NOVA | NOVA | NOVA | NOVA |
R6 Series Rental LED Display Specification
Outdoor – 500x1000mm
| LED Cabinet Parameter | Value | Value | Value | Value |
| Model | LS-DO-P2.6-0.5mx1m-R6 | LS-DO-P2.98-0.5mx1m-R6 | LS-DO-P3.91-0.5mx1m-R6 | LS-DO-P4.81-0.5mx1m-R6 |
| Application | Outdoor | Outdoor | Outdoor | Outdoor |
| Pitch | 2.60mm | 2.98mm | 3.91mm | 4.81mm |
| Pixel density | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| LED density | 147456pixel/sq.m | 112896pixel/sq.m | 65536pixel/sq.m | 43264pixel/sq.m |
| Brightness | 4000nit | 4000nit | 4000/6000nit | 4000nit |
| Color temperature | 6500deg. K | 6500deg. K | 6500deg. K | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. | 140(-70 ~ +70)deg. |
| Module size(W*H) | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet size(W*H) | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm |
| Cabinet depth | 85mm | 85mm | 85mm | 85mm |
| Cabinet sq. meter | 0.50sq.m | 0.50sq.m | 0.50sq.m | 0.50sq.m |
| Cabinet resolution(W*H) | 192*384pixel | 168*332pixel | 128*256pixel | 104*208pixel |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet weight | 13.5kg/cabinet | 14kg/cabinet | 14kg/cabinet | 14kg/cabinet |
| Cabinet mode | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation | Rental & fixed installation |
| Service access | Back Service | Back Service | Back Service | Back Service |
| Ingress protection (front/rear) | IP23/43 | IP65/65 | IP65/65 | IP65/65 |
| Operating temperature range | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Recommended minimum viewing distance | 2.0m | 2.3m | 3.0m | 3.7m |
| Recommended best viewing distance | 2.6~200m | 2.98~200m | 3.91~200m | 4.81~200m |
| Colors | 281 Trillion | 281 Trillion | 281 Trillion | 281 Trillion |
| Grey scale (linear) | 65536 levels per color | 65536 levels per color | 65536 levels per color | 65536 levels per color |
| Brightness control | 100Levels | 100Levels | 100Levels | 100Levels |
| Contrast ratio | 3000:1 | 2000:1 | 2000:1 | 2000:1 |
| Processing depth | 16bit | 16bit | 16bit | 16bit |
| Video frame rate | 60Hertz | 60Hertz | 60Hertz | 60Hertz |
| Display refresh rate | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ | 1920Hertz / 3840HZ |
| Input voltage (nominal) | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz | 50 to 60 Hertz |
| Input power (max) | 800 Watts/sqm | 800 Watts/sqm | 800 Watts/sqm | 800 Watts/sqm |
| Input power (typical) | 320 Watts/sqm | 320 Watts/sqm | 320 Watts/sqm | 320 Watts/sqm |
| Lifetime (50% brightness) | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Red wavelength (dominant) | 620~625nm | 620~625nm | 620~625nm | 620~625nm |
| Green wavelength (dominant) | 525~530nm | 525~530nm | 525~530nm | 525~530nm |
| Blue wavelength (dominant) | 470~475nm | 470~475nm | 470~475nm | 470~475nm |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber | UTP Cat 5/Optical Fiber |
| Controller | NOVA | NOVA | NOVA | NOVA |
Project Case
Related Products
P1.9 Indoor Rental LED Display 500x500mm
P1.9 Indoor Rental LED Display 500x500mm Model: LS-DI-P1.9-0.5mx0.5m-K Application: Indoor Rental or Fixed Installation
LS-DI-P4.81-0.5mx0.5m-K
P4.81 Indoor Rental LED Display Model: LS-DI-P4.81-0.5mx0.5m-K Application: Indoor Rental or Fixed Installation
LS-DI-P3.91-0.5mx0.5m-K
P3.91 Indoor Rental LED Display Model: LS-DI-P3.91-0.5mx0.5m-K Application: Indoor Rental or Fixed Installation
LS-DI-P2.98-0.5mx0.5m-K
P2.98 Indoor Rental LED Display Model: LS-DI-P2.98-0.5mx0.5m-K Application: Indoor Rental or Fixed Installation
LS-DI-P2.6-0.5mx0.5m-K
P2.6 Indoor Rental LED Display Application: Indoor Rental or Fixed Installation Feature Specification LED Cabinet Parameter Value Model LS-DI-P2.6-0.5mx0.5m-K Application Indoor Pitch 2.60mm Pixel density 147456pixel/sq.m LED density 147456pixel/sq.m Brightness 1000nit Color temperature 6500deg. K Viewing angle – Horizontal 140(-70 ~ +70) deg. Viewing angle – Vertical 140(-70 ~ +70)deg. Module size(W*H) 250*250mm Cabinet size(W*H) 500*500mm…
