C Series HD LED Display

Application: Indoor Fixed Installation
Pitch: 1.25mm, 1.5mm, 1.8mm, 2mm, 2.5mm, 3mm, 4mm

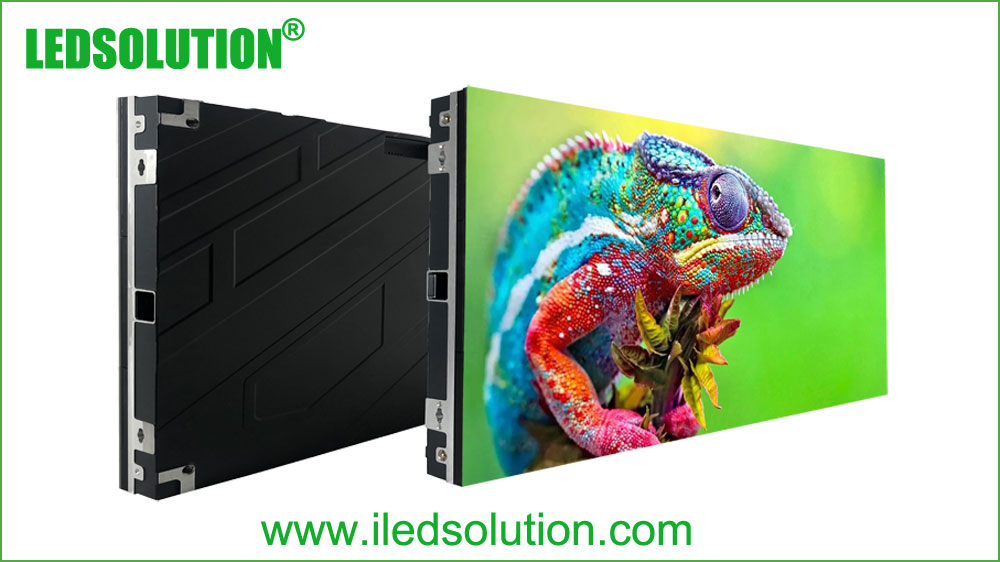

C Series HD LED Display has 4 different cabient sizes: 960x480mm, 640x640mm, 640x480mm, 320x480mm. With these sizes of cabinets, C Series HD LED Display can config any size of LED Displays.

C Series HD LED Display is full front service, Cabinet can be fixed from front side, modules can be fixed / maintain from front side.

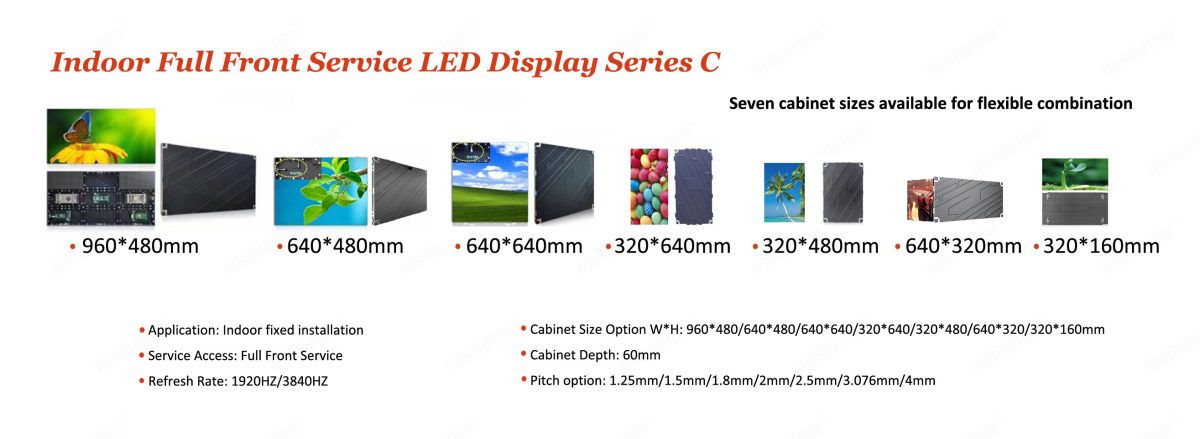

C Series HD LED Display Cabinet Size Option
C Series HD LED Display Cabinet Size Option

C Series HD LED Display Feature

  • Extremely high resolution;
  • Excellent image & video quality;
  • Flat & seamless surface;
  • Thin & light LED panel design;
  • Low power consumption, environmentally friendly;
  • Wide viewing angle, 140 degree both horizontal and vertical;
  • Module option:SMD and GOB;
  • Front service solutions available to fit different installation sites.

C Series HD LED Display Specification

ParameterValue
ApplicationIndoor
Pitch1.25 / 1.5 / 1.8 / 2 / 2.5 / 3 / 4mm
Pixel density640000 / 422500 / 288906 / 250000 / 105625 / 62500 pixel/sq.m
Brightness 600 / 600 / 800 / 800 / 1000 / 1000 / 1000 / 1000nit
Color temperature 6500deg. K
Viewing angle – Horizontal140(-70 ~ +70) deg.
Viewing angle – Vertical140(-70 ~ +70)deg.
Module size(W*H)320*160mm
Module resolution(W*H)256*128 / 208*104 / 172*86 / 160*80 / 128*64 / 104*52 / 80*40 pixels
Cabinet size(W*H)960*480 / 640*640 / 640*480 / 320*480mm
Cabinet depth60mm
Cabinet sq. meter0.4608 / 0.4096 / 0.3072 / 0.1536sq.m
Cabinet material Die-cast Aluminum
Cabinet weight 7.35kg/cabinet
Cabinet modeFixed installation
Service accessFull front service
Ingress protection (front/rear) IP23/IP43
Operating temperature range -30 to +60 deg. C
Humidity operating10% ~ 90% RH
Pixel type and configuration 3in1 SMD
Colors  281 Trillion
Grey scale (linear) 65536 levels per color
Brightness control 100Levels
Contrast ratio 3000:1
Processing depth 16bit
Video frame rate 60Hertz
Display refresh rate 1920 / 3840Hertz
Input voltage (nominal) 110 / 220VAC
Input power frequency 50 to 60 Hertz
Input power (max) 600 Watts/ sqm
Input power (typical)240 Watts/ sqm
Lifetime (50% brightness) ≥100000
Red wavelength (dominant) 620~625nm
Green wavelength (dominant) 525~530nm
Blue wavelength (dominant) 470~475nm
Multimedia data formatDVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
ControllerNOVA

C Series HD LED Display Video
