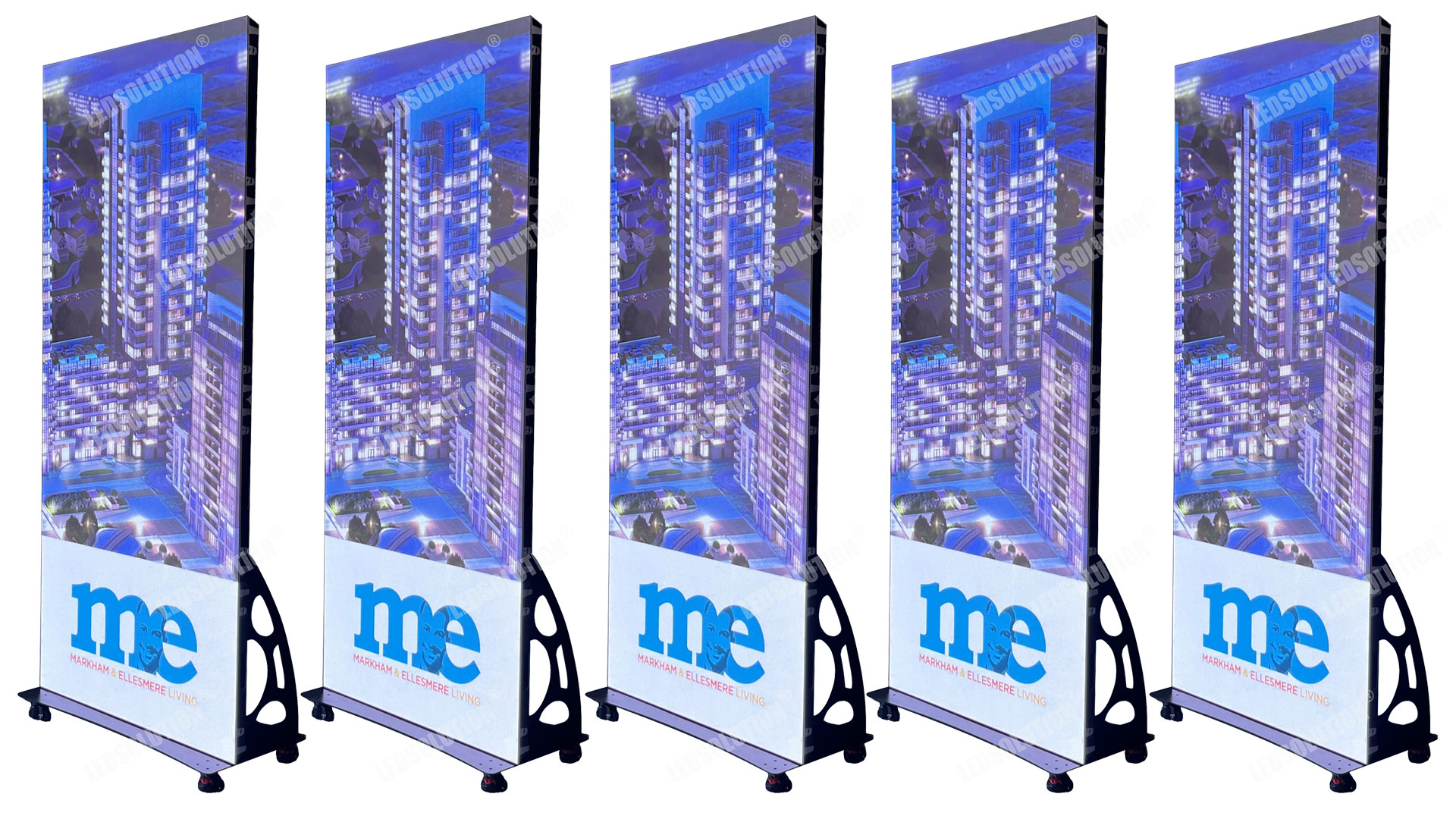

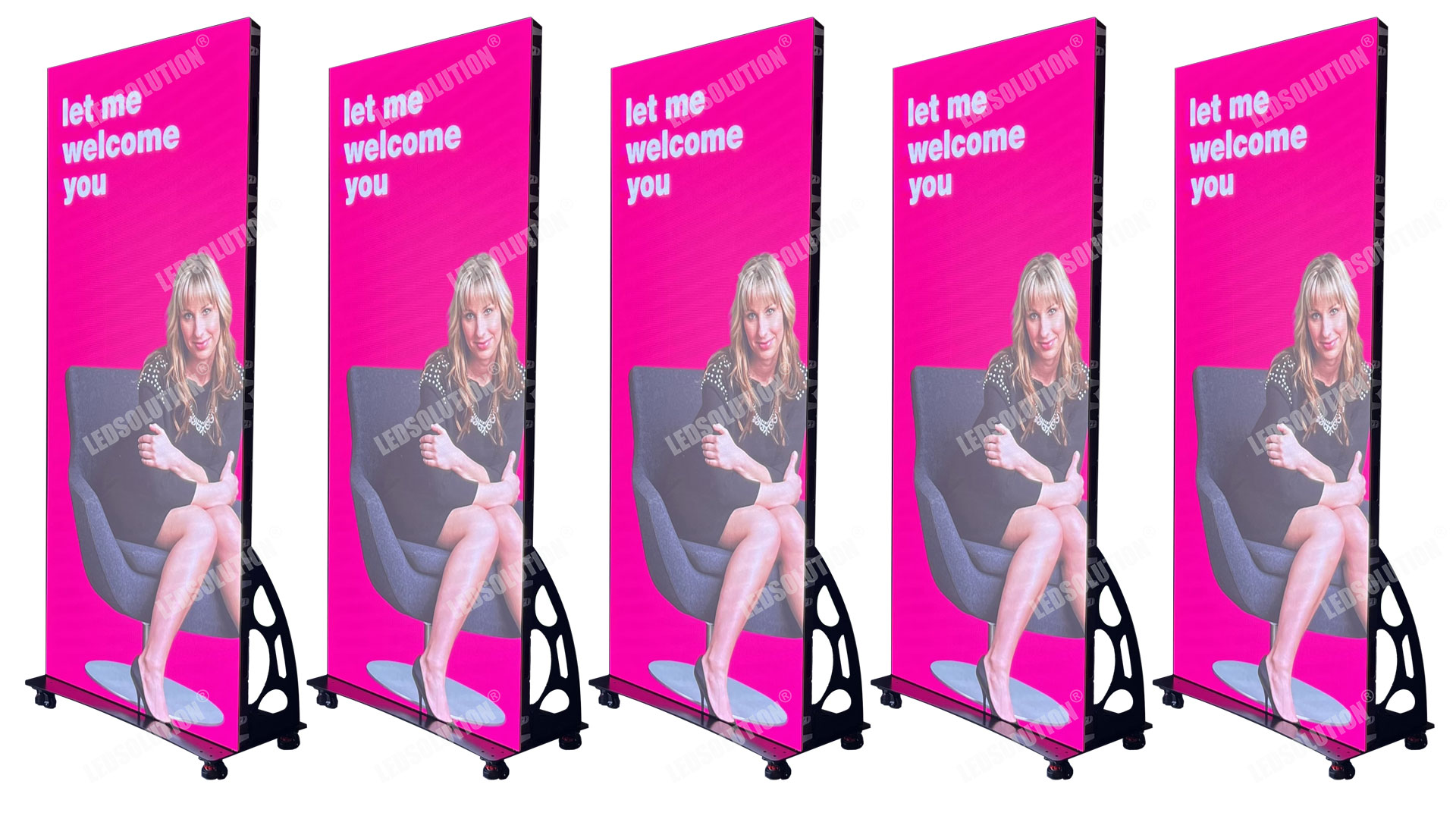

Indoor PRO95 LED Poster
Size: 960x2160mm
Application: Indoor Advertising
PRO95 Poster Series 960x2160mm Feature
1. Sleek Poster Format (960 × 2160 mm)
A tall, elegant LED poster structure built using stacked PRO95 cabinets (each 960 × 540 mm). Ideal for wall-mounted, freestanding, or embedded applications.
2. True 16:9 Aspect Ratio + Seamless 4K Setup
Each 960 × 2160 mm poster maintains a vertical 16:9 ratio. Combine 4 posters to create a perfect full HD or 4K display, making it ideal for broadcast-grade or premium retail environments.
3. Advanced Pixel Pitches
Available in high-resolution options: P1.0, P1.25, P1.5, P1.8, P2.0, and P2.5—ensuring sharp images even at close viewing distances.
4. Cable-Free Modules
Modules connect internally without external cables, keeping the design clean and enabling quick installation.
5. Full‑Front Service Access
No need for rear access—modules, power box, and receiving card can all be maintained or replaced from the front within seconds.
6. Ultra‑Thin and Lightweight Design
Only 50 mm thick and around 10 kg per cabinet—perfect for applications where space and weight matter.
7. High Visual Performance
3840 Hz refresh rate and high contrast ratio (~5000:1) deliver flicker-free, vibrant visuals suitable for camera environments.
8. Horizontally Expandable
Each 960 × 2160 mm poster can be connected horizontally—expand from 2 to N units to form large displays or customized sizes tailored to your project.
9. Durable, Long-Lasting Construction
Die-cast aluminum structure with a lifespan of up to 100,000 hours, providing long-term value and stable performance.
PRO95 Poster Series 960x2160mm Specification Sheet
| Parameter | Value |
| Product Series | PRO95 Poster Series |
| Pixel pitch | P1.25 / P1.5 / P1.8 /P2 /P2.5 |
| Application | Indoor |
| Brightness | 800-1000 nits |
| Color temperature | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. |
| Module size | 320*180mm |
| Module type | Hard-connection |
| LED size | 960*2160mm |
| Single or Double sides | Single side |
| Size with ground base | (W) 960x (H) 2240 x (D) 410mm or Customized |
| LED sq. meter | 2.07sq.m |
| Cabinet material | Die-cast Aluminum |
| Cabinet weight | 50kg/set |
| Service access | Full front service |
| Ingress protection (front/rear) | IP23/IP23 |
| Front protection option | SMD / GOB |
| Operating temperature range | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD |
| Colors | 281 Trillion |
| Grey scale (linear) | 65536 levels per color |
| Brightness control | 100Levels |
| Contrast ratio | 5000:1 |
| Processing depth | 16bit |
| Video frame rate | 60Hertz |
| Display refresh rate | 3840Hertz |
| Input voltage (nominal) | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz |
| Input power (max) | 600W/sqm |
| Input power (typical) | 240W/sqm |
| Lifetime (50% brightness) | ≥100000 |
| Red wavelength (dominant) | 620~625 |
| Green wavelength (dominant) | 525~530 |
| Blue wavelength (dominant) | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber |
| Controller | NOVASTAR / COLORLIGHT / HUIDU |
| Installation | Self-stand with wheel base |
