LEDSOLUTION Energy Saving LED Display
Keywords: Energy Saving LED Display
6 Years ago, LEDSOLUTION start to research and develop the energy saving LED Display and has released the Energy saving LED Display in year 2011. Now more and more customer pay attention on energy saving, LEDSOLUTION start a promotion for P10 outdoor energy saving LED Display.
Normal P10 LED Module VS Energy Saving LED Module

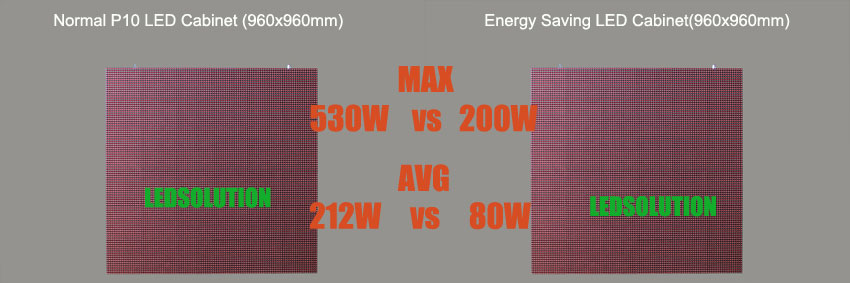

Normal P10 LED Cabinet VS Energy Saving LED Cabinet
Average Power consumption for P10 Outdoor LED Cabinet
Parameter Normal P10 LED Cabinet VS Energy Saving LED Cabinet
| Parameter | NormalP10 LED Cabinet | Energy SavingP10 LED Cabinet |
| Pitch | 10mm | |
| Brightness | 7000nit | |
| Color temperature | 6500 deg. K | |
| Viewing angle – Horizontal (50% brightness) | 130 (+65/-65) deg. | |
| Viewing angle – Vertical (50% brightness) | 60(+30/-30) deg. | |
| Panel weight | 53 kg | |
| Panel width | 960 mm | |
| Panel height | 960 mm | |
| Panel depth | 170 mm | |
| Panel area | 0.9216 sq. m. | |
| Panel material | Epoxy paint coated Cold rolled steel | |
| Ingress protection (front/rear) | IP65/IP65 | |
| Operating temperature range | -30 to +60 deg. C | |
| Humidity operating | 10% ~ 90% | |
| Pixel type and configuration | 1R1G1B | |
| Resolution per panel | 96 x 96 | |
| Dot per panel | 9,216 | |
| Dot per sq. meter | 10,000 | |
| LED per sq. meter | 30,000 | |
| Recommended minimum viewing distance | 7.6 | |
| Recommended best viewing distance | 10~100 | |
| Colors | 281 Trillion | |
| Grey scale (linear) | 65,536 levels per color | |
| Brightness control | 100 Levels | |
| Contrast ratio | 1,000:1 | |
| Processing depth | 16 Bit | |
| Video frame rate | 60 Hertz | |
| Display refresh rate | 180~3,000 Hertz | |
| Input voltage (nominal) | 110 to 240 VAC | |
| Input power frequency | 50 to 60 Hertz | |
| Input power (max) | 530 Watts / cabinet | 200 Watts / cabinet |
| Input power (typical) | 212 Watts / cabinet | 80 Watts / cabinet |
| Lifetime (50% brightness) | ≥100,000 | |
| Red wavelength (dominant) | 620~625 | |
| Green wavelength (dominant) | 525~530 | |
| Blue wavelength (dominant) | 470~475 | |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Fixed with 4pcs M10 bolts | |
Contact us today to have a energy saving solution, info@ledsolution-cor.com
