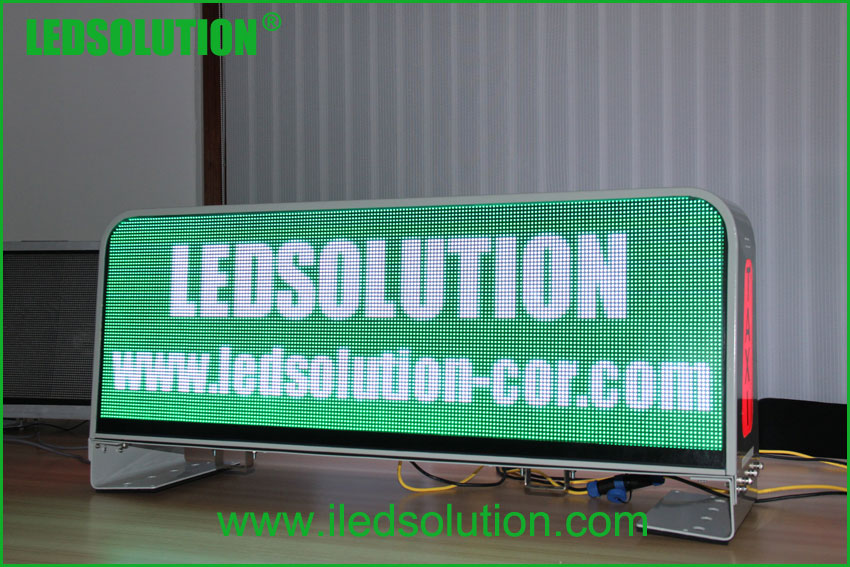

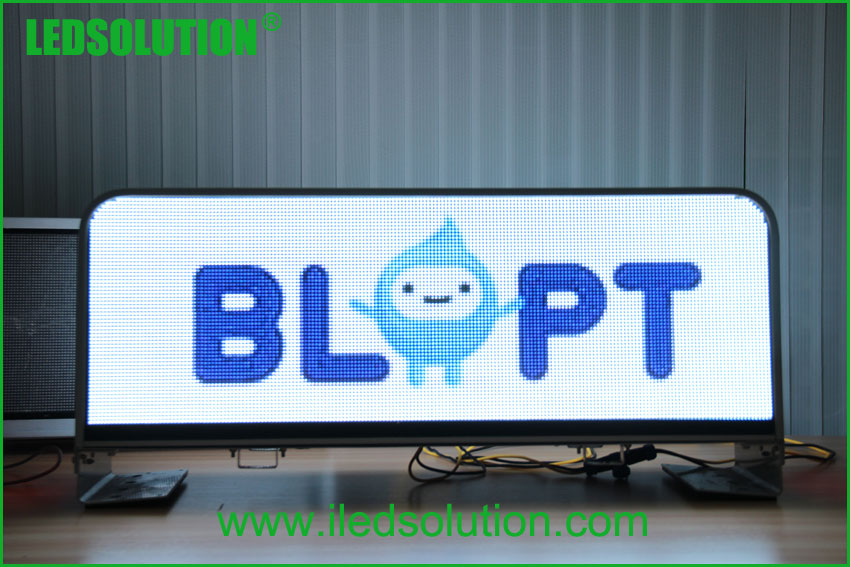

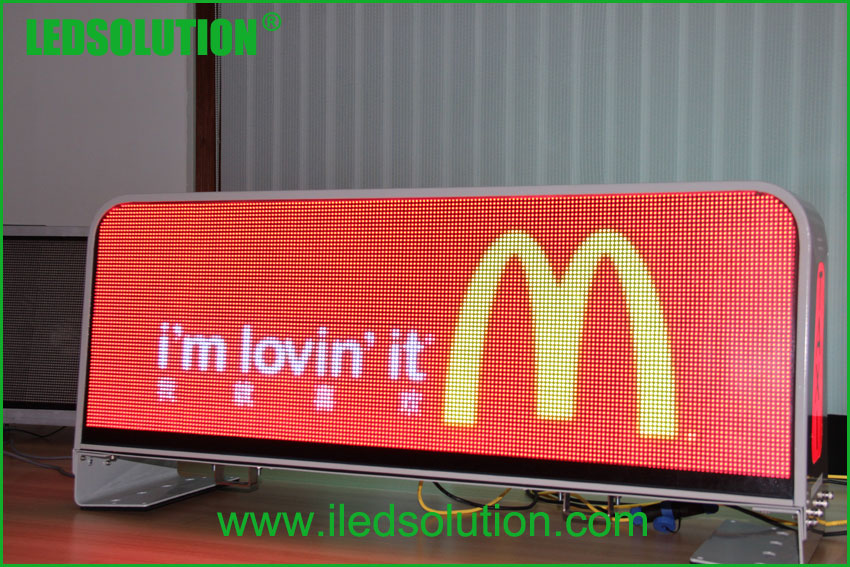

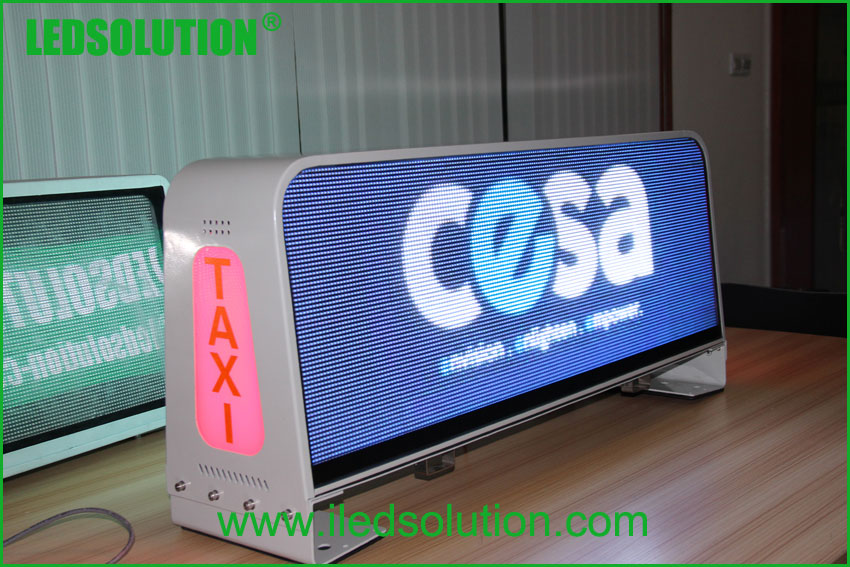

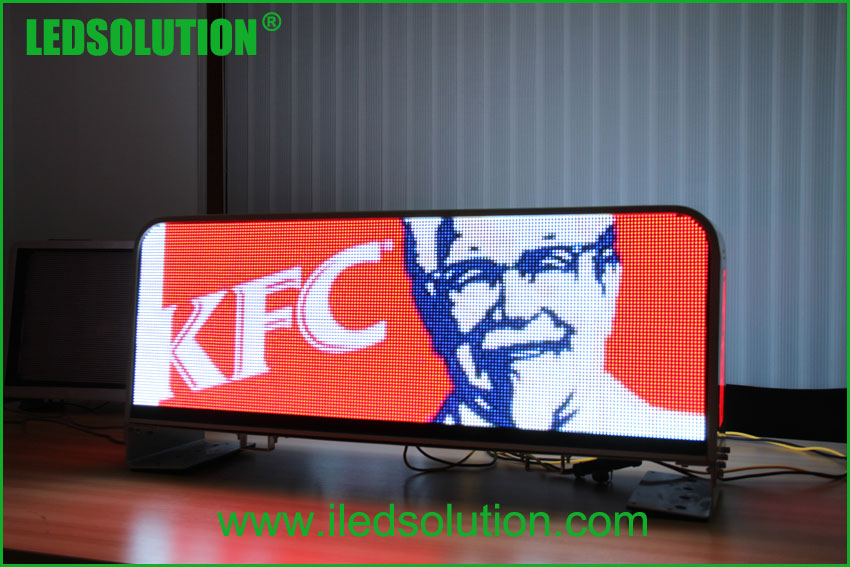

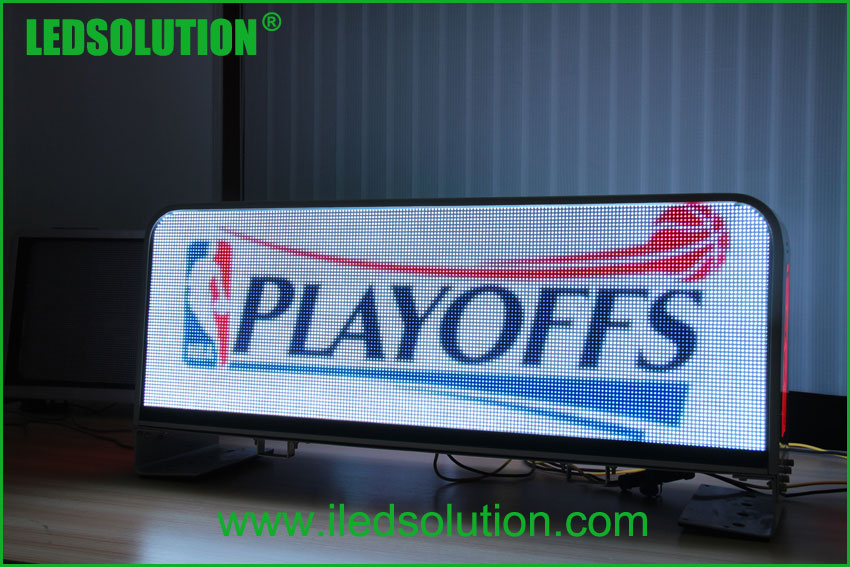

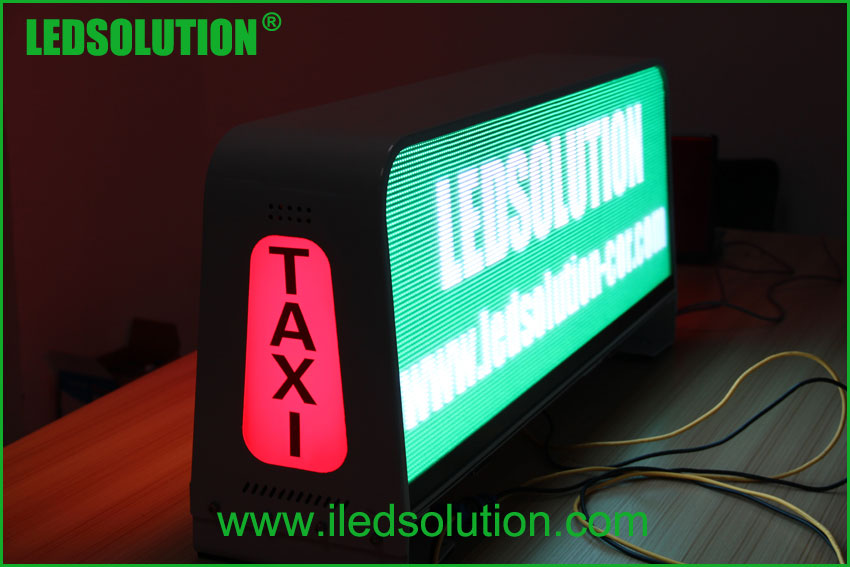

Model: LS-TX-P5-0.96mx0.32m

Application: Outdoor Taxi Top LED Display

Enquire us


*Light weight design;
*3G/4G communication;
*120degree wide viewing angle;
*Brightness option:4000nit / 7000nit;
*7/24 working.


Parameter Value
Pitch 5mm
Brightness 4000nit / 7000nit
Color temperature 6,500 deg. K
Viewing angle – Horizontal (50% brightness) 140(-70 ~ +70) deg.
Viewing angle –Vertical (50% brightness) 140(-70 ~ +70) deg.
Panel weight 23kg
Panel size W960mm*H320mm
Housing size W984mm*H440mm*D240mm
Panel design Double face
Panel material Aluminum
Panel color Silver/yellow/cutomized
Weather protection IP65/65
Operating temperature range -30 to +60 deg. C
Humidity operating RH 10% ~ 90%
Pixel type and configuration 3in1 SMD
Resolution per panel 192*64pixel
Dot per panel 12,288
Dot per sq. meter 40,000
LED per sq. meter 40,000
Recommended minimum viewing distance 3.8m
Recommended best viewing distance 4~12m
Colors 281 trillion
Grey scale (linear) 65,536 levels per color
Contrast ratio 1,000:1
Processing depth 16 bit
Video frame rate 60 Hertz
Display refresh rate 180~3,000 Hertz
Input voltage (nominal) 9~36V
Input power frequency 50 to 60 Hertz
Input power (max) 1,200W
Input power (typical) 480W
Lifetime (50% brightness) ≥100,000
Red wavelength (dominant) 620~625 nm
Green wavelength (dominant) 520~525 nm
Blue wavelength (dominant) 470~475 nm
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Controller Asynchronous
Data interconnection USB/3G wireless
Mounting system Fixed with bolts
