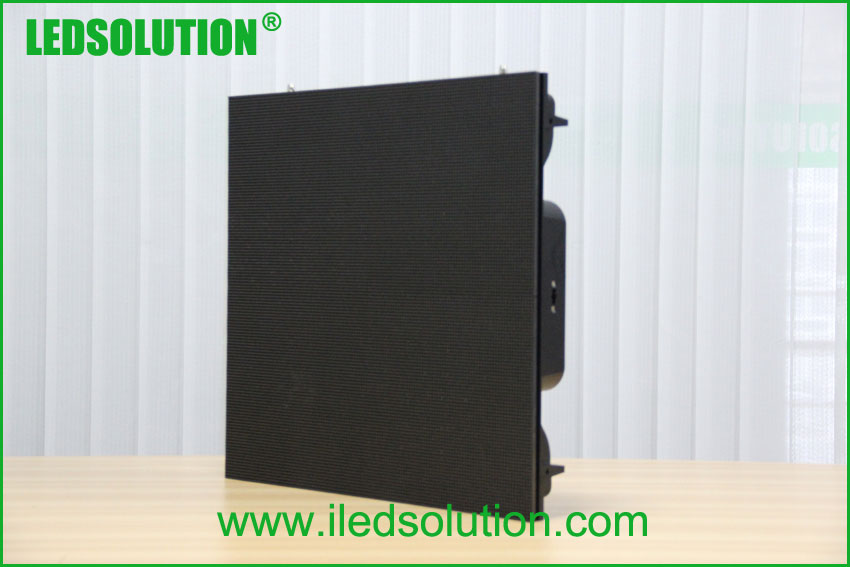

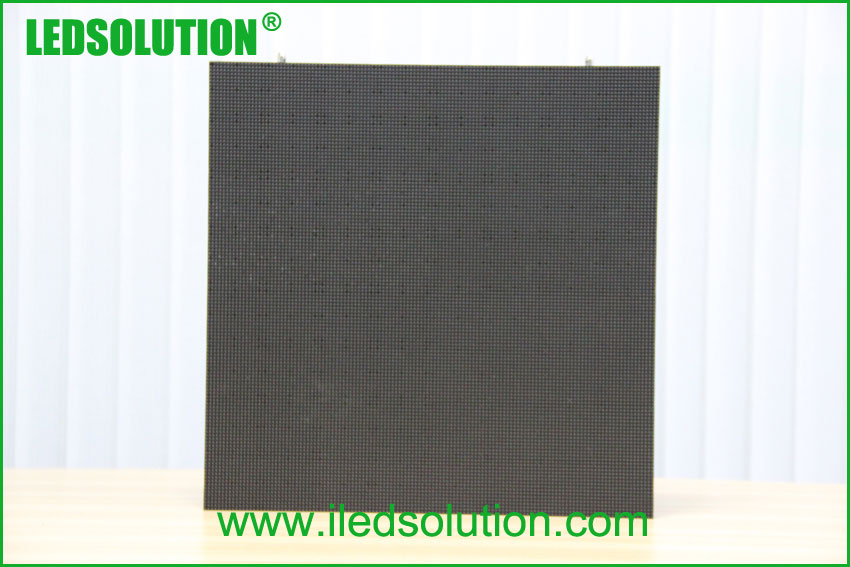

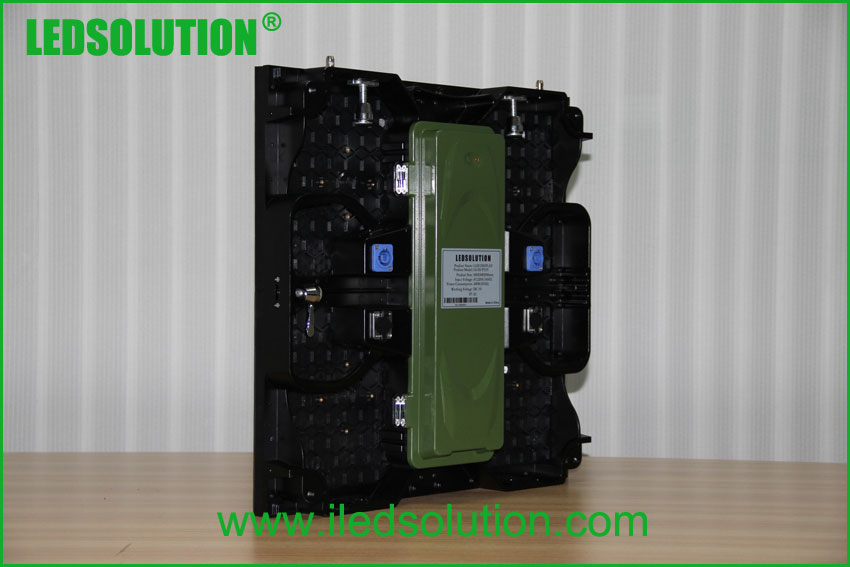

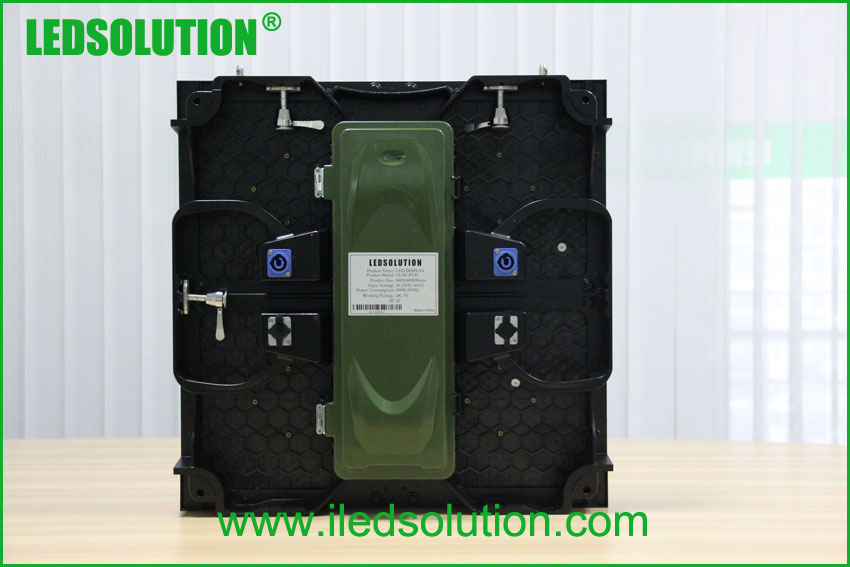

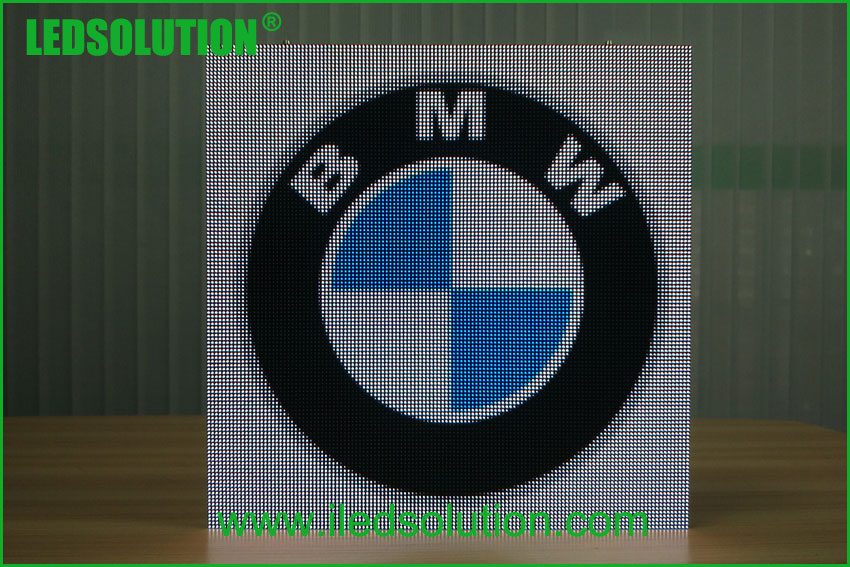

Model: LS-DI-P6.25-0.5mx0.5m

Application: Indoor Rental or Fixed Installation

Enquiry us


Light weight cabinet,6kg/cabinet,
Pitch option 3.91mm,4.81mm, 6.25mm,
Urtra Thin,the depth of the cabinet is 78mm,
Seanless assembly.


Parameter Unit Value
Pitch mm 6.25
Brightness nits 1,500
Color temperature deg. K 6,500
Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle – Vertical (50% brightness) deg. 140(-70 ~ +70)
Panel weight kg 6
Panel width mm 500
Panel height mm 500
Panel depth mm 78
Panel area sq. m. 0.25
Panel material Epoxy paint coated Aluminum
Panel Mode Die-Cast rental
Operating temperature range deg. C -20 to +60
Humidity operating RH 10% ~ 60%
Pixel type and configuration R/G/B 3-in-1 SMD
Resolution per panel 80×80
Dot per panel 6,400
Dot per sq. meter 25,600
LED per sq. meter 25,600
Recommended minimum viewing distance m 4.8
Recommended best viewing distance m 6~18
Colors 281 Trillion
Grey scale (linear) Levels 65,536
Brightness control Levels 256
Contrast ratio 2,000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3,000
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts / panel. 200
Input power (typical) Watts / panel. 80
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
Mounting system Hanging/Fixed
