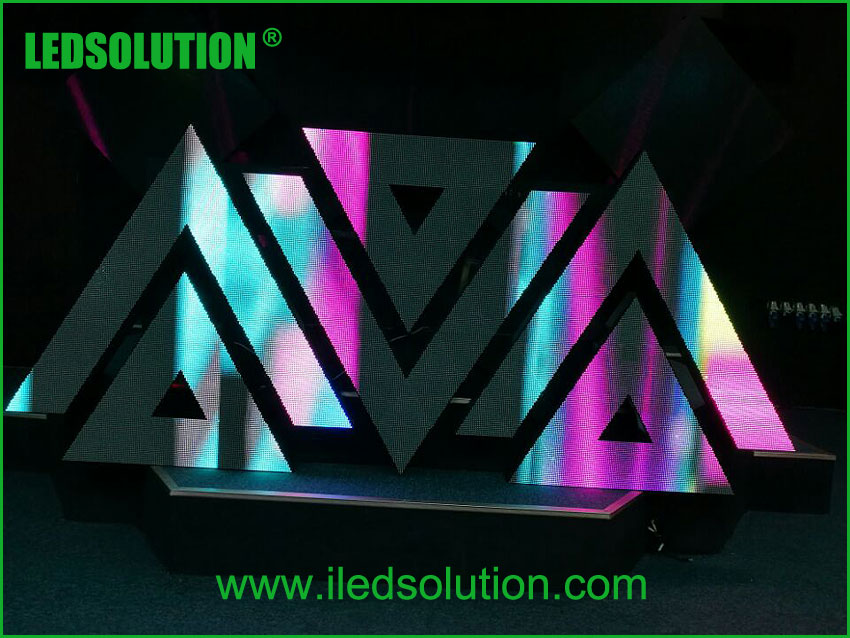

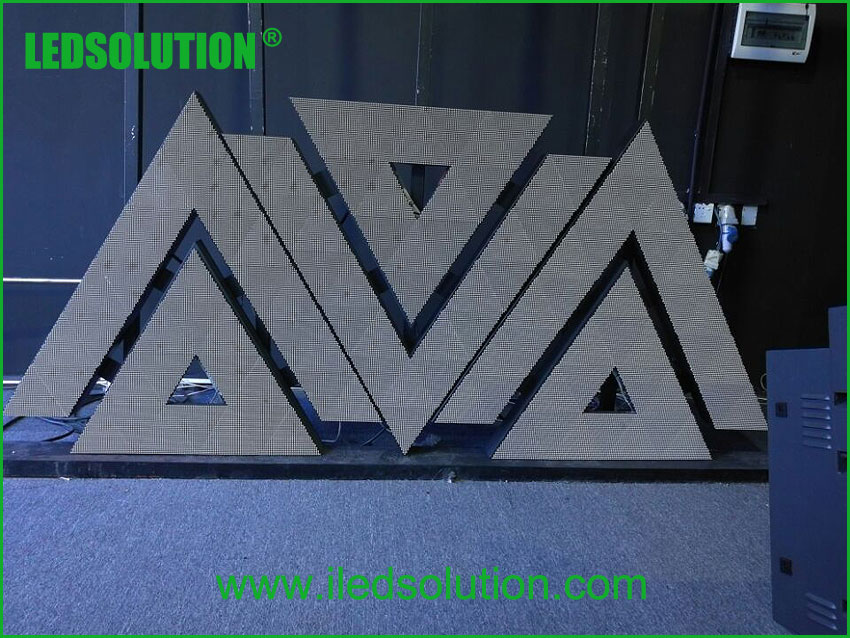

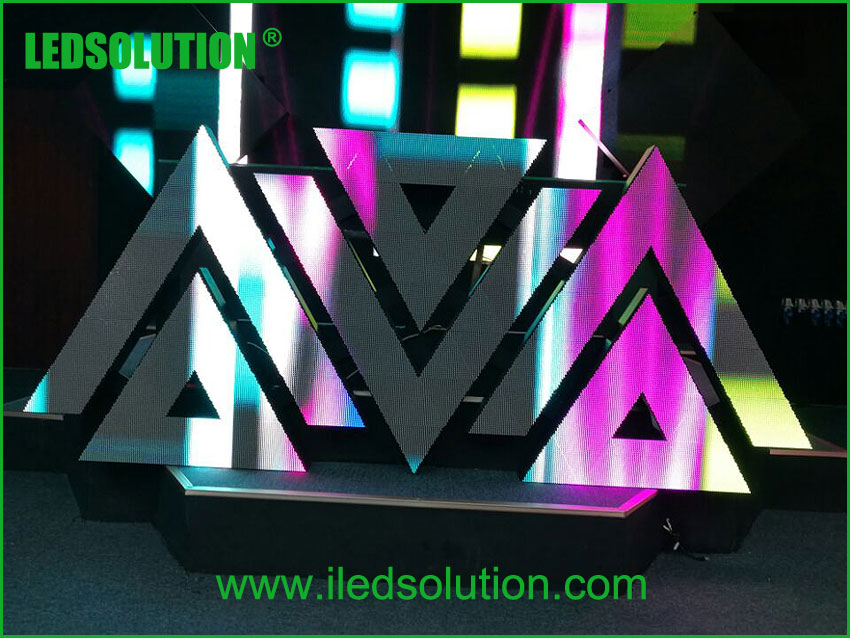

P5 Indoor LED DJ Booth

Model: LS-DJ-AVA

Application: Bar, Club or Stage Use

Enquire us


* Pitch 5mm
* Creative design
* Easy to maintain;
* Indoor Application


Parameter Unit Value
Pitch mm 5
Brightness nits 1200
Color temperature deg. K 6500
Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle -Vertical (50% brightness) deg. 140(-70 ~ +70)
Panel weight kg 60
Panel width mm 2520
Panel height mm 1073
Panel depth mm 80
Panel area sq. m. 2.69 ( Max W*H)
Panel material Epoxy paint coated Cold rolled steel
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 3in1 SMD
Dot per sq. meter 40,000
LED per sq. meter 40,000
Recommended minimum viewing distance m 3.8
Recommended best viewing distance m 3.8~20
Colors 281 trillion
Grey scale (linear) Levels 65,536 levels per color
Brightness control Levels 100
Contrast ratio 1,000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3,000
Input voltage (nominal) VAC 110 or 220
Input power frequency Hertz 50 to 60
Input power (max) Watts / set 1200
Input power (typical) Watts / set 600
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5
Control way Synchronous with computer
Mounting system Fixed with M10 bolts


Data Sheet:
