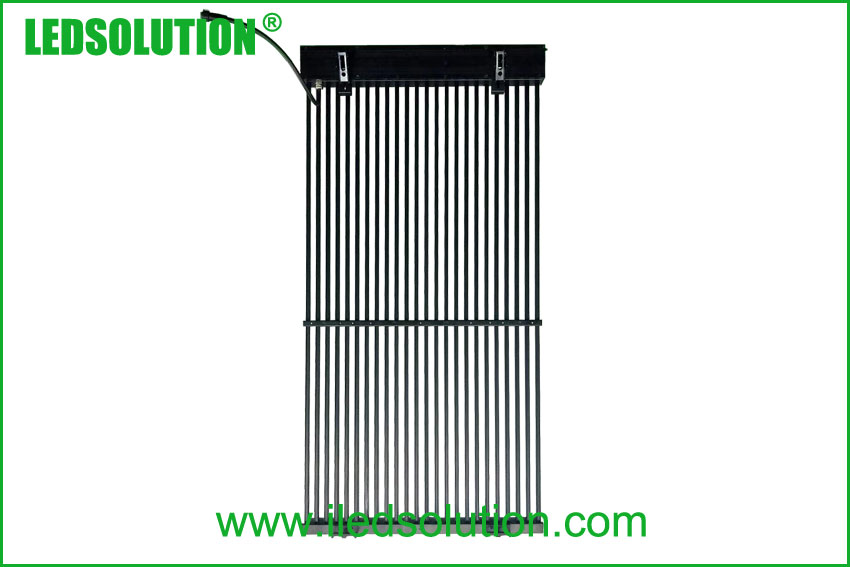

P20 Curtain LED Display / LED Facade

Model: LS-OC-P20-0.5mx1m

Application: Outdoor Fixed Installation

Feature

  • Epistar Top Rank LED
  • 6000nit, visible under sunshine
  • IP65/65
  • Front Service & Back service
  • Transparent Rate: 36%
  • Light Weight:18kg/sqm
  • Panel size: 500*1000mm
  • Designed for glass building, fixed installation

Specification

Parameter

Unit

Value

Pitch

mm

20(horizontal) /20(vertical)

Brightness

nits

7000

Color temperature

deg. K

6500

Viewing angle – Horizontal/Vertical

deg.

130/60

Panel weight

Kg/panel

9

Led panel + frame for installation weight

Kg/m2

26

Panel width

mm

500

Panel height

mm

1000

Panel depth

mm

67

Frame depth

mm

64

Panel area

sq. m.

0.5

Panel material



Epoxy paint coated Aluminum Strip

Transparent rate



50%

Ingress protection (front/rear)

IP65

IP67/67

Service access



Front & Back

Operating temperature range

deg. C

-30 to +60

Humidity operating

RH

10% ~ 90%

Pixel type and configuration

R/G/B

DIP LED

Resolution per panel



25*50

Dot per panel



1250

Dot per sq. meter



2500

LED per sq. meter



7500

Recommended minimum viewing distance

m

15

Best viewing distance

m

15~300

Drive Mode



Constant current drive

Colors



281 Trillion

Grey scale (linear)

Levels

65536 levels per color

Brightness control

Levels

100

Contrast ratio



1000:1

Processing depth

bit

12

Video frame rate

Hertz

60

Display refresh rate

Hertz

1920

Input voltage (nominal)

VAC

110 to 240

Input power frequency

Hertz

50 to 60

Input power (max)

Watts/ m2

400

Input power (typical)

Watts/ m2

160

Lifetime (50% brightness)

Hours

≥100000

Red wavelength (dominant)

nm

620~625

Green wavelength (dominant)

nm

525~530

Blue wavelength (dominant)

nm

470~475

Panel input format



DVI,MPG,AVI,WMV,RM etc.

Controller



YDEA
