P12.5-8.33 Curtain LED Display
Model: LS-OC-P12.5-8.33-SMD-0.5mx1m
Application: Outdoor Fixed Installation
Feature
- Epistar Top Rank LED
- 6000+nit, visible under sunshine
- IP65/65
- Front & Back service
- Transparent Rate: 20%
- Light Weight:19kg/sqm
- Panel size: 1500*1000mm
- Designed for glass building, fixed installation
Specification
| Parameter | Unit | Value |
| Pitch | mm | 12.5(horizontal) 8.33(vertical) |
| Brightness | nits | 6000 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal/Vertical | deg. | 140 / 140 |
| Panel weight | Kg/panel | 9.5 |
| Led panel + frame for installation weight | Kg/m2 | 27 |
| Panel width | mm | 500 |
| Panel height | mm | 1000 |
| Panel depth | mm | 67 |
| Frame depth | mm | 64 |
| Panel area | sq. m. | 0.5 |
| Panel material | Epoxy paint coated Aluminum Strip | |
| Transparent rate | 20% | |
| Ingress protection (front/rear) | IP65 | IP67/67 |
| Service access | Front & Back | |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | SMD LED |
| Resolution per panel | 40*80 | |
| Dot per panel | 3200 | |
| Dot per sq. meter | 6400 | |
| LED per sq. meter | 6400 | |
| Recommended minimum viewing distance | m | 8 |
| Best viewing distance | m | 8~300 |
| Drive Mode | Constant current drive | |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1000:1 | |
| Processing depth | bit | 12 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 1920 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/ m2 | 800 |
| Input power (typical) | Watts/ m2 | 320 |
| Lifetime (50% brightness) | Hours | ≥100000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Panel input format | DVI,MPG,AVI,WMV,RM etc. | |
| Controller | YDEA |
Download
LS-OC-P12.5-8.33-SMD-0.5mx1m.pdf
Video
Project cases
Related Products

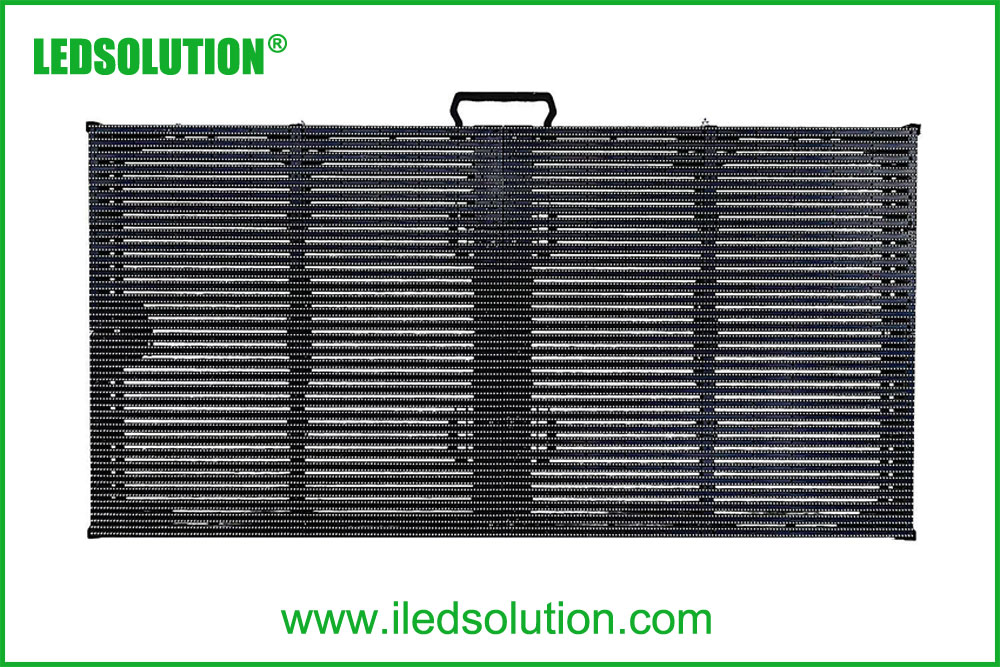

LS-OC-P3.91-7.81-1mx0.5m
