P10 Flex LED Display
Keywords: P10 Flex LED Display

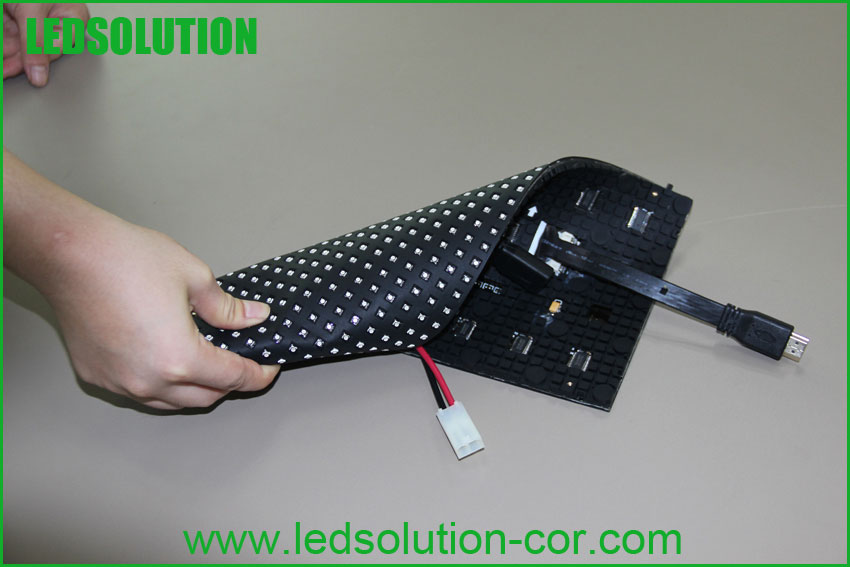

The flex led module make us realize 360 degree bend designing of led display.
Module:
LS-FM-P10-320X160
Feature:
- Size 320*160mm
- Pitch 10mm
- Indoor application
- 360degree band, concave & convex design both possible.
- Front service
Specification:
| Parameter | Unit | Value |
| Pitch | mm | 10 |
| Brightness | nits | 1,500 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 0.4 |
| Panel width | mm | 320 |
| Panel height | mm | 160 |
| Panel depth | mm | 8 |
| Panel resolution | sq. m. | 32×16 |
| Panel material | Rubber | |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Dot per sq. meter | 10,000 | |
| LED per sq. meter | 10,000 | |
| Recommended minimum viewing distance | m | 7.6 |
| Recommended best viewing distance | m | 13~34 |
| Colors | 281 trillion | |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 14 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 600 |
| Input voltage (nominal) | VDC | 5V |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / pc | 38 |
| Input power (typical) | Watts / pc | 15 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Panel input format | HDMI | |
| Mounting system | Magnet |
