Model: LS-TX-P4-1.024mx0.384m

Application: Outdoor Taxi Top LED Display

Enquire us


*Light weight design;
*3G/4G communication;
*120degree wide viewing angle;
*Brightness option:6000nit;
*7/24 working.


Parameter Value
Pitch 4mm
Brightness 6000nits
Color temperature 6500 deg. K
Viewing angle – Horizontal (50% brightness) 140(-70 ~ +70) deg.
Viewing angle –Vertical (50% brightness) 140(-70 ~ +70) deg.
Panel weight 20 kg
Panel size W1024mm*H384mm
Housing size W1050mm*H510mm*D200
Panel design Double face
Panel material Aluminum
Panel color Silver/yellow/customized
Weather protection IP65/65
Operating temperature range -30 to +60 deg. C
Humidity operating RH 10% ~ 90%
Pixel type and configuration 3in1 SMD
Resolution per panel 256*96pixel
Dot per panel 57600
Dot per sq. meter 62500
LED per sq. meter 62500
Recommended minimum viewing distance 3m
Recommended best viewing distance 4~16m
Colors 281 trillion
Grey scale (linear) 65536 levels per color
Contrast ratio 1000:1
Processing depth 16 bit
Video frame rate 60 Hertz
Display refresh rate 180~3000 Hertz
Input voltage (nominal) 9~36V
Input power frequency 50 to 60 Hertz
Input power (max) 1200W
Input power (typical) 480W
Lifetime (50% brightness) ≥100000
Red wavelength (dominant) 620~625 nm
Green wavelength (dominant) 520~525 nm
Blue wavelength (dominant) 470~475 nm
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Controller Asynchronous
Data interconnection 3G/4G wireless
Mounting system Fixed with bolts

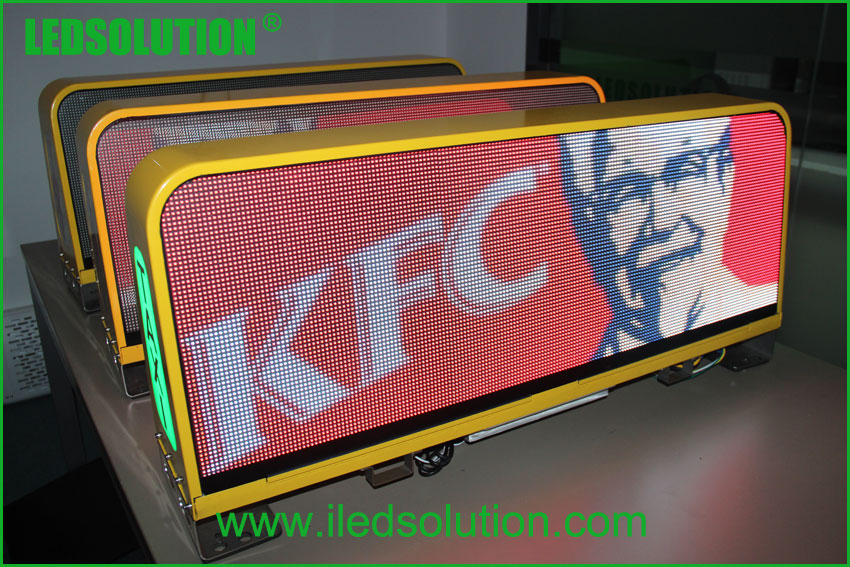

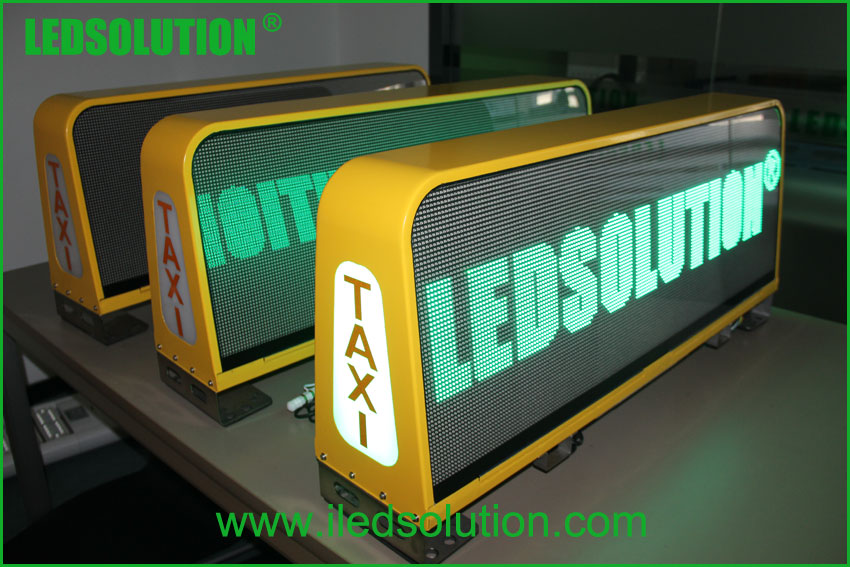

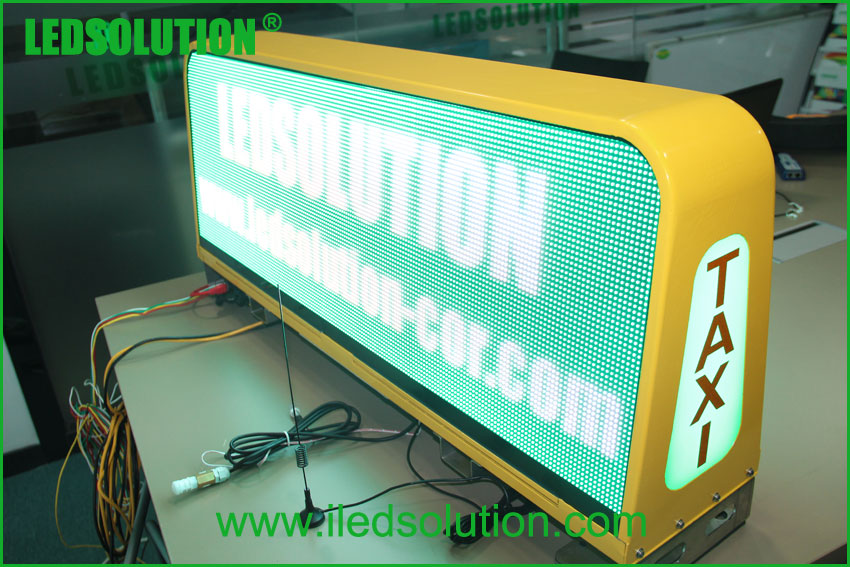

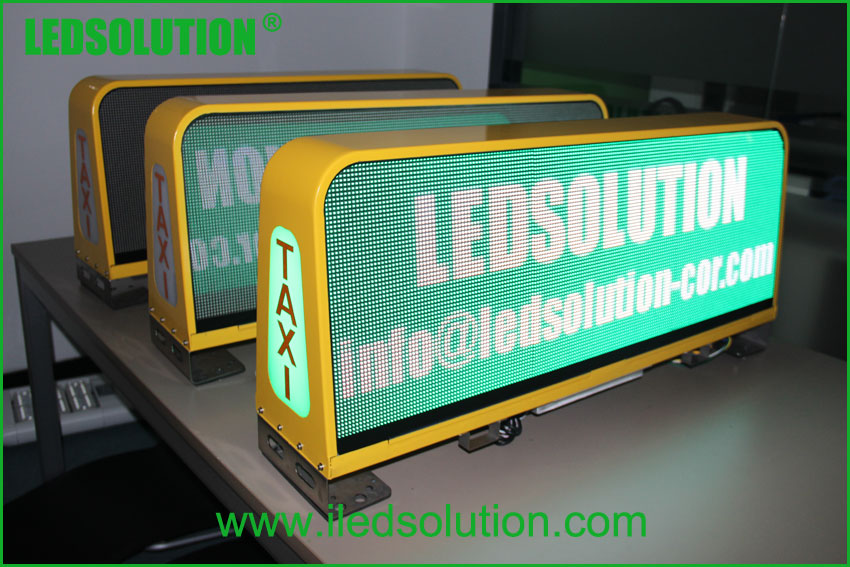

Project cases:
