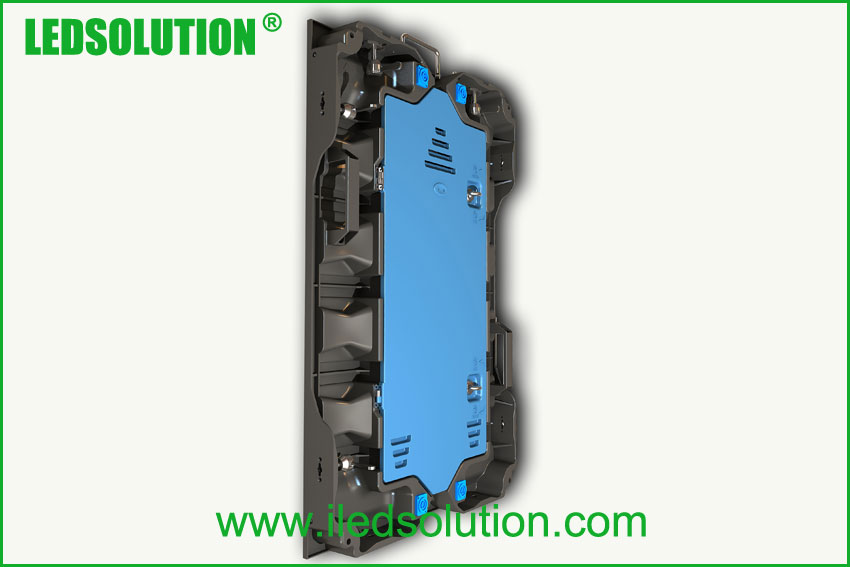

P4 Outdoor Rental LED Display

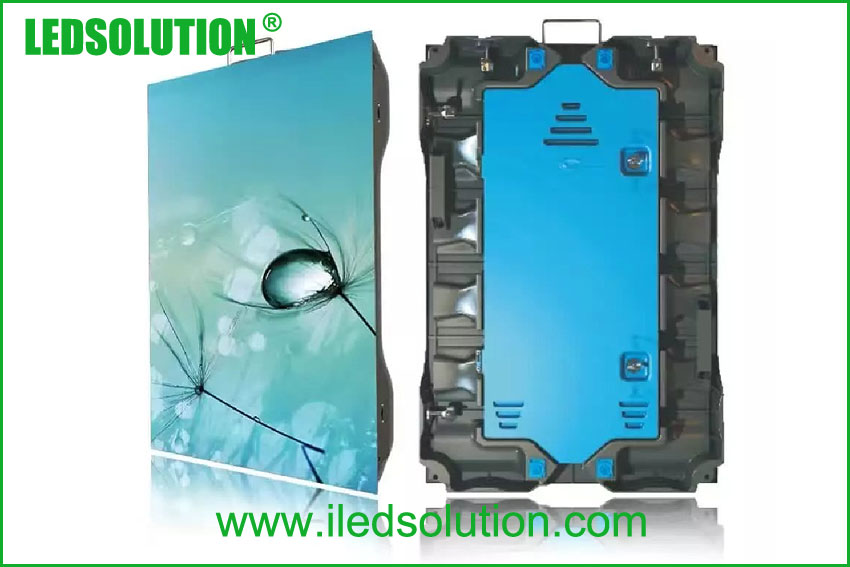

Model: LS-DO-P4-0.512mx0.768m
Application: Outdoor Rental & Fix installation
Enquire us
Feature:
* Pitch 4mm
* Light weight: one person is able to carry one cabinet easily, very convenient in assembly and transport.
* Urtra Thin: Depth of the cabinet is 90mm only,Save space for both the application site and transportation.
* Precise Die-cast Aluminum Cabinet: seamless assembly;
* Easy to maintain;
* Removable center cabinet;
* Cabinet weight only 12kg
* Outdoor Application
Specification:
| Parameter | Unit | Value |
| Pitch | mm | 4 |
| Brightness | nits | 5000 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 12 |
| Panel width | mm | 512 |
| Panel height | mm | 768 |
| Panel depth | mm | 90 |
| Panel area | sq. m. | 0.393216 |
| Panel material | Epoxy paint coated Aluminum | |
| Panel Mode | Die-Cast rental | |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | Outdoor 3in1 SMD |
| Resolution per panel | 128×192 | |
| Dot per panel | 24576 | |
| Dot per sq. meter | 62500 | |
| LED per sq. meter | 62500 | |
| Recommended minimum viewing distance | m | 3 |
| Recommended best viewing distance | m | 4~100 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 256 |
| Contrast ratio | 1000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel. | 400 |
| Input power (typical) | Watts / panel. | 160 |
| Lifetime (50% brightness) | Hours | ≥100000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Hanging / Fixed |
