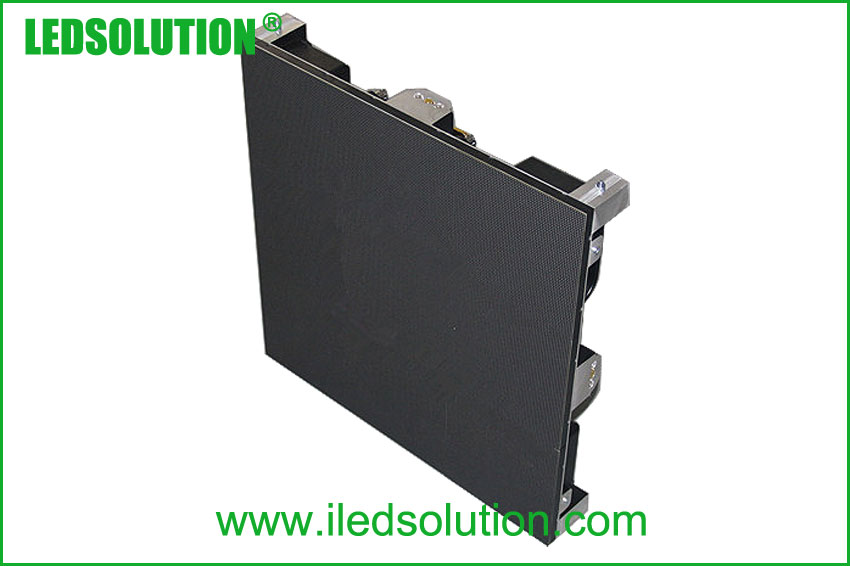

Product: Indoor P2.5 Front Service Rental LED Display

Model: LS-DI-P2.5-MF-0.48mx0.48m

Application: Indoor Rental or Fixed Installation

Enquire us


* Light weight: one person is able to carry one cabinet easily, very convenient in assembly and transport.
* Urtra Thin: Depth of the cabinet is 90mm only,Save space for both the application site and transportation.
* Precise Die-cast Aluminum Magnesium Alloy Cabinet: seamless assembly;

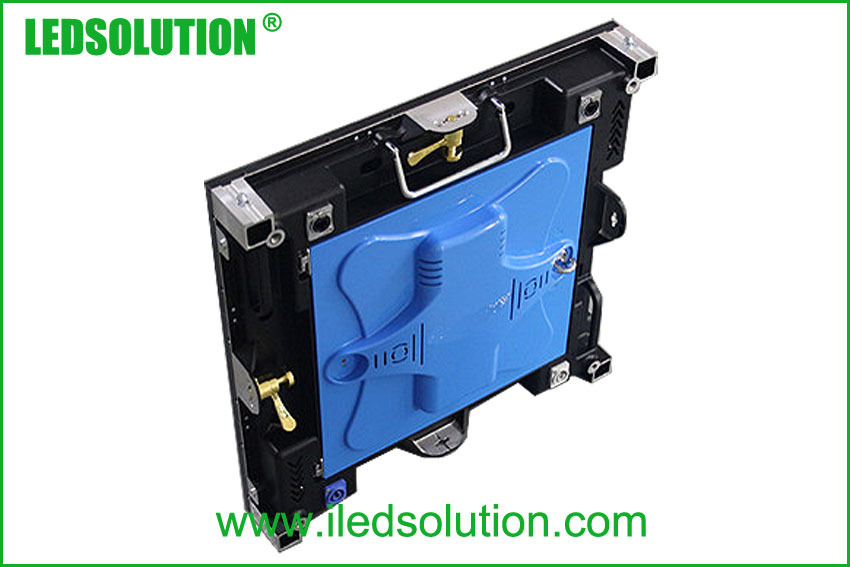

* Easy to maintain;Front Service;
* Removable center cabinet.


Parameter Unit Value
Pitch mm 2.5
Brightness nits 800
Color temperature deg. K 6,500
Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle – Vertical (50% brightness) deg. 140(-70 ~ +70)
Panel weight kg 7
Panel width mm 480
Panel height mm 480
Panel depth mm 89.5
Panel area sq. m. 0.2304
Panel material Aluminum alloy
Panel service access Front & Back
Operating temperature range deg. C -20 to +60
Humidity operating RH 10% ~ 60%
Pixel type and configuration R/G/B 3-in-1 SMD
Resolution per panel 192×192
Dot per panel 36,864
Dot per sq. meter 160,000
LED per sq. meter 160,000
Recommended minimum viewing distance m 2
Recommended best viewing distance m 2-50
Colors 281 Trillion
Grey scale (linear) Levels 65,536
Brightness control Levels 256
Contrast ratio 2,000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 1,200
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts / panel. 200
Input power (typical) Watts / panel. 80
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5
Mounting system Fixed & Rental
