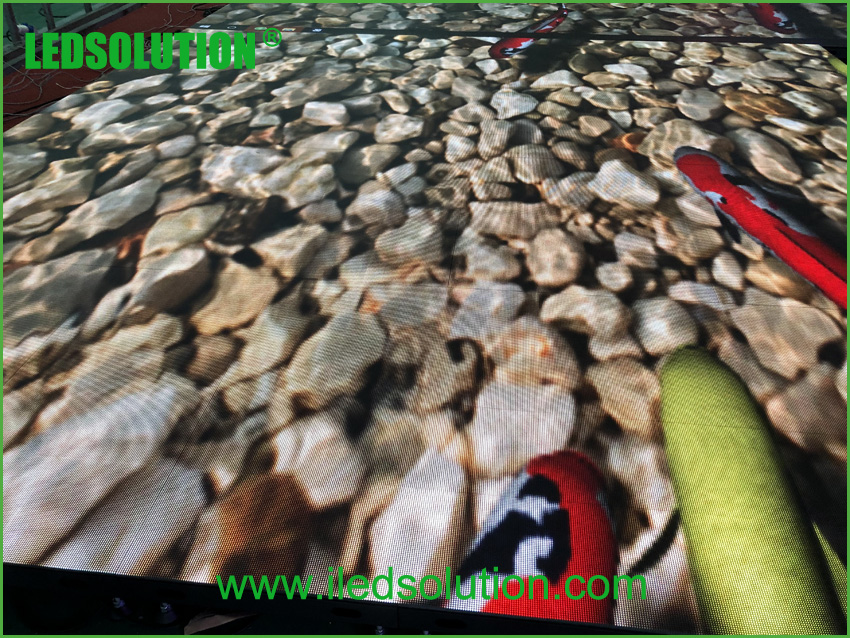

P3.91 Non-Interactive LED Floor
Model: LS-FL-P3.91-0.5mx1m
Application: LED Floor for rental or fixed installation
Enquire usFeature
- Non-interactive
- Panel size option 500*1000mm
- For both rental and fix installation
- Steel cabinet
- Include installation base
- Weight bearing 1.5ton/sqm
Specification
| Parameter | Unit | Value |
| Pitch | mm | 3.91 |
| Brightness | nits | 1800 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70~ +70) |
| Panel weight | kg | 25 |
| Panel width | mm | 500 |
| Panel height | mm | 1000 |
| Panel depth | mm | 70 |
| Panel area | sq. m. | 0.5 |
| Installation height | mm | 13~17cm adjustable with feet base |
| Panel material | Steel | |
| Service access | Front service | |
| Interactive | Non | |
| Load per square meter | Ton/m2 | 1.5 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| International Protection | IP | IP43/23 |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel | 128×256 | |
| Dot per panel | 32768 | |
| Dot per sq. meter | 65536 | |
| LED per sq. meter | 65536 | |
| Recommended minimum viewing distance | m | 4 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65,536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1,000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3,000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/Panel | 400 |
| Input power (typical) | Watts/Panel | 160 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 625 |
| Green wavelength (dominant) | nm | 525 |
| Blue wavelength (dominant) | nm | 470 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Mounting system | Fixed on ground |
