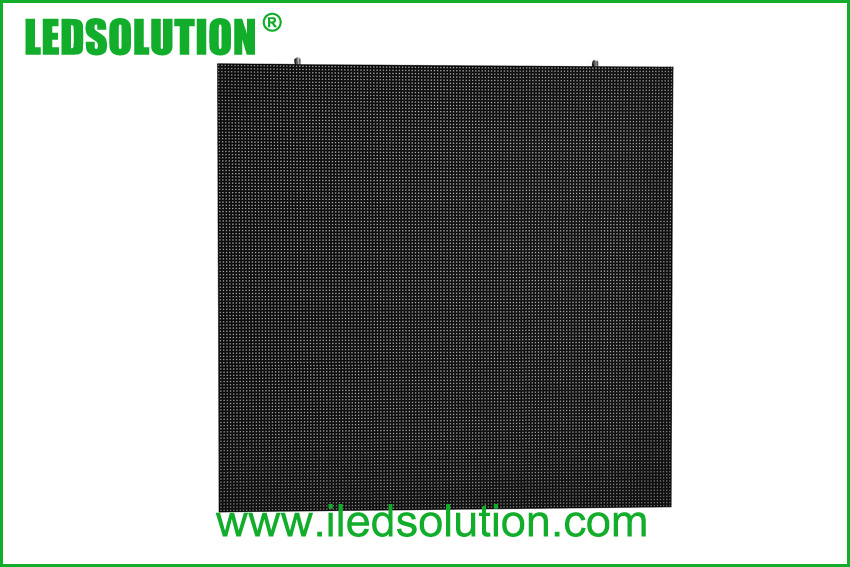

P4 Outdoor Module Front Service LED Display
Model: LS-O-P4-SMD-MF-0.96mx0.96m-IP65
Application: SMD LED Display for fixed installation
Feature:
- For Outdoor fixed installation application;
- SMD LED Display;
- Weatherproof to IP65/65 standards;
- High resolution images and long lifetime;
- Easily configured for various size and aspect ratios;
- Wide viewing angle;
- Brightness from 6000 nits onwards.
- Service access: Module front service
- Steel cabinet (option: Die-cast aluminum cabinet)
Specification:
| Parameter | Unit | Value |
| Pitch | mm | 4 |
| Brightness | nits | 6000 |
| Color temperature | deg. K | 6500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 40 |
| Panel width | mm | 960 |
| Panel height | mm | 960 |
| Panel depth | mm | 181 |
| Panel area | sq. m. | 0.9216 |
| Panel material | Steel | |
| Service access | Module front service | |
| Ingress protection (front/rear) | IP | IP65/IP65 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | Outdoor 3in1 SMD |
| Resolution per panel | 240*240 | |
| Dot per panel | 57600 | |
| Dot per sq. meter | 62500 | |
| LED per sq. meter | 62500 | |
| Recommended minimum viewing distance | m | 3 |
| Recommended best viewing distance | m | 4~100 |
| Colors | 281 Trillion | |
| Grey scale (linear) | Levels | 65536 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio | 1000:1 | |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel | 900 |
| Input power (typical) | Watts / panel | 360 |
| Lifetime (50% brightness) | Hours | ≥100000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. | |
| Data interconnection | UTP Cat 5/Optical Fiber | |
| Mounting system | Fixed with 4pcs M10 bolts | |
| Controller | Linsn/NOVA |
