A flexible Rental LED Display Series which can config flat screen / Convex or Concave screen / Wave screen / L shape screen / Corner screen / U-shape screen / four-faced pillar screen / cylinder screen, etc.

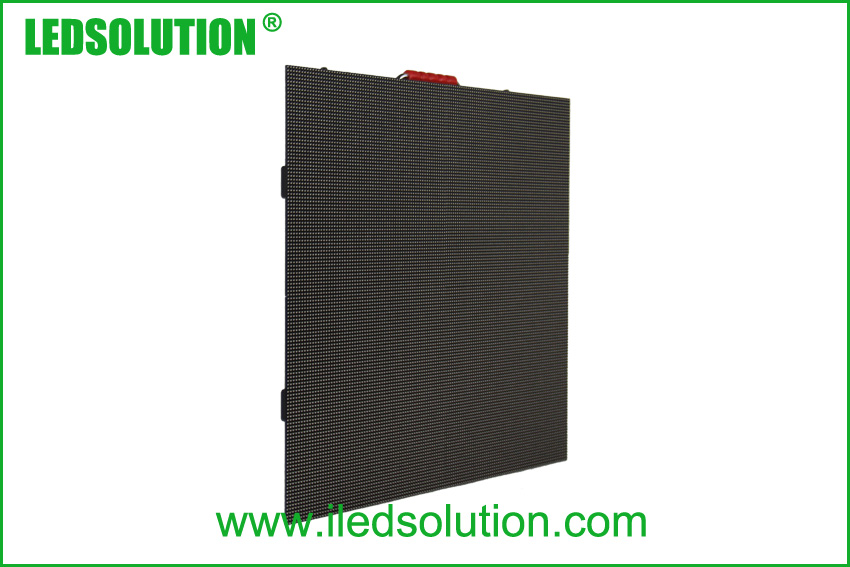

LEDSOLUTION 500CL series is a super versatile product that can build multiple shapes of LED displays easily. By using only one type of cabinet, we can make flat, curved, cylinder, squared LED displays, etc. It’s indeed a good solution for applications that need different screen shapes, such as stage performance.

Key Features:

  • Cabinet size: 500mm*500mm*78mm (W*H*D)
  • Available pixel pitch:
    Indoor 1.9mm, 2.6mm, 2.98mm, 3.91mm, 4.81mm
    Outdoor 2.6mm, 2.98mm, 3.91mm, 4.81mm
  • Thin & lightweight. Cabinet thickness: 78mm, weight:7.5kg.
  • Easy & fast to set up and dismantle the cabinets.
  • Flexible to create different screen shapes. With ±15 degree adjustable radian lock, it can make flat screen, curved screen (convex or concave), wave screen, L-shape screen, U-shape screen, four-faced pillar screen, cylinder screen, etc.
  • Excellent image performance.
  • Reliable and durable.

Main applications: rental, stage events, activity centers, exhibition, etc.

LED Cabinet ParameterValue Value Value Value Value
ModelLS-DI-P1.9-0.5mx0.5m-CLLS-DI-P2.6-0.5mx0.5m-CLLS-DI-P2.98-0.5mx0.5m-CLLS-DI-P3.91-0.5mx0.5m-CLLS-DI-P4.81-0.5mx0.5m-CL
ApplicationIndoorIndoorIndoorIndoorIndoor
Pitch1.90mm2.60mm2.98mm3.91mm4.81mm
Pixel density262144pixel/sq.m147456pixel/sq.m112896pixel/sq.m65536pixel/sq.m43264pixel/sq.m
LED density262144pixel/sq.m147456pixel/sq.m112896pixel/sq.m65536pixel/sq.m43264pixel/sq.m
Brightness 800nit1000nit1000nit1000nit1000nit
Color temperature 6500deg. K 6500deg. K 6500deg. K 6500deg. K 6500deg. K
Viewing angle – Horizontal140(-70 ~ +70) deg. 140(-70 ~ +70) deg. 140(-70 ~ +70) deg. 140(-70 ~ +70) deg. 140(-70 ~ +70) deg.
Viewing angle – Vertical140(-70 ~ +70)deg. 140(-70 ~ +70)deg. 140(-70 ~ +70)deg. 140(-70 ~ +70)deg. 140(-70 ~ +70)deg.
Module size(W*H)250*250mm250*250mm250*250mm250*250mm250*250mm
Cabinet size(W*H)500*500mm500*500mm500*500mm500*500mm500*500mm
Cabinet depth82mm82mm82mm82mm82mm
Cabinet sq. meter0.250sq.m0.250sq.m0.250sq.m0.250sq.m0.250sq.m
Cabinet resolution(W*H)256*256pixel192*192pixel168*168pixel128*128pixel208*208pixel
Cabinet material AluminumAluminumAluminumAluminumAluminum
Cabinet weight 7.5kg/cabinet7.5kg/cabinet7.5kg/cabinet7.5kg/cabinet7.5kg/cabinet
Cabinet modeRental & fixed installationRental & fixed installationRental & fixed installationRental & fixed installationRental & fixed installation
Cabinet Assembly angle90°/180°/165°~195°90°/180°/165°~195°90°/180°/165°~195°90°/180°/165°~195°90°/180°/165°~195°
Service accessFront and backFront and backFront and backFront and backFront and back
Ingress protection (front/rear) IP23/23IP23/23IP23/23IP23/23IP23/23
Operating temperature range -30 to +60 deg. C-30 to +60 deg. C-30 to +60 deg. C-30 to +60 deg. C-30 to +60 deg. C
Humidity operating10% ~ 90% RH10% ~ 90% RH10% ~ 90% RH10% ~ 90% RH10% ~ 90% RH
Pixel type and configuration 3in1 SMD 3in1 SMD 3in1 SMD 3in1 SMD 3in1 SMD
Recommended minimum viewing distance 1.4m2.0m2.3m3.0m3.7m
Recommended best viewing distance1.9~200m2.6~200m2.98~200m3.91~200m4.81~200m
Colors  281 Trillion281 Trillion281 Trillion281 Trillion281 Trillion
Grey scale (linear) 65536 levels per color 65536 levels per color 65536 levels per color 65536 levels per color 65536 levels per color
Brightness control 100Levels 100Levels 100Levels 100Levels 100Levels
Contrast ratio 3000:13000:13000:13000:13000:1
Processing depth 16bit 16bit 16bit 16bit 16bit
Video frame rate 60Hertz 60Hertz 60Hertz 60Hertz 60Hertz
Display refresh rate 1920Hertz / 3840HZ1920Hertz / 3840HZ1920Hertz / 3840HZ1920Hertz / 3840HZ1920Hertz / 3840HZ
Input voltage (nominal) 110 or 220VAC110 or 220VAC110 or 220VAC110 or 220VAC110 or 220VAC
Input power frequency 50 to 60 Hertz 50 to 60 Hertz 50 to 60 Hertz 50 to 60 Hertz 50 to 60 Hertz
Input power (max) 600Watts/ sqm600Watts/ sqm600Watts/ sqm600Watts/ sqm600Watts/ sqm
Input power (typical)240Watts/ sqm240Watts/ sqm240Watts/ sqm240Watts/ sqm240Watts/ sqm
Lifetime (50% brightness) ≥100000 ≥100000 ≥100000 ≥100000 ≥100000
Red wavelength (dominant) 620~625620~625620~625620~625620~625
Green wavelength (dominant) 525~530525~530525~530525~530525~530
Blue wavelength (dominant) 470~475470~475470~475470~475470~475
Multimedia data formatDVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical FiberUTP Cat 5/Optical FiberUTP Cat 5/Optical FiberUTP Cat 5/Optical FiberUTP Cat 5/Optical Fiber
ControllerNOVANOVANOVANOVANOVA
LED Cabinet ParameterValue Value Value
ModelLS-DO-P2.98-0.5mx0.5m-CLLS-DO-P3.91-0.5mx0.5m-CLLS-DO-P4.81-0.5mx0.5m-CL
ApplicationOutdoorOutdoorOutdoor
Pitch2.98mm3.91mm4.81mm
Pixel density112896pixel/sq.m65536pixel/sq.m43264pixel/sq.m
LED density112896pixel/sq.m65536pixel/sq.m43264pixel/sq.m
Brightness 4000nit4000nit4000nit
Color temperature 6500deg. K 6500deg. K 6500deg. K
Viewing angle – Horizontal140(-70 ~ +70) deg. 140(-70 ~ +70) deg. 140(-70 ~ +70) deg.
Viewing angle – Vertical140(-70 ~ +70)deg. 140(-70 ~ +70)deg. 140(-70 ~ +70)deg.
Module size(W*H)250*250mm250*250mm250*250mm
Cabinet size(W*H)500*500mm500*500mm500*500mm
Cabinet depth82mm82mm82mm
Cabinet sq. meter0.250sq.m0.250sq.m0.250sq.m
Cabinet resolution(W*H)168*168pixel128*128pixel208*208pixel
Cabinet material AluminumAluminumAluminum
Cabinet weight 8.5kg/cabinet8.5kg/cabinet8.5kg/cabinet
Cabinet modeRental & fixed installationRental & fixed installationRental & fixed installation
Cabinet Assembly angle90°/180°/165°~195°90°/180°/165°~195°90°/180°/165°~195°
Service accessBack serviceBack serviceBack service
Ingress protection (front/rear) IP65/65IP65/65IP65/65
Operating temperature range -30 to +60 deg. C-30 to +60 deg. C-30 to +60 deg. C
Humidity operating10% ~ 90% RH10% ~ 90% RH10% ~ 90% RH
Pixel type and configuration 3in1 SMD 3in1 SMD 3in1 SMD
Recommended minimum viewing distance 2.3m3.0m3.7m
Recommended best viewing distance2.98~200m3.91~200m4.81~200m
Colors  281 Trillion281 Trillion281 Trillion
Grey scale (linear) 65536 levels per color 65536 levels per color 65536 levels per color
Brightness control 100Levels 100Levels 100Levels
Contrast ratio 2000:12000:12000:1
Processing depth 16bit 16bit 16bit
Video frame rate 60Hertz 60Hertz 60Hertz
Display refresh rate 1920Hertz / 3840HZ1920Hertz / 3840HZ1920Hertz / 3840HZ
Input voltage (nominal) 110 or 220VAC110 or 220VAC110 or 220VAC
Input power frequency 50 to 60 Hertz 50 to 60 Hertz 50 to 60 Hertz
Input power (max) 1200Watts/ sqm1200Watts/ sqm1200Watts/ sqm
Input power (typical)480Watts/ sqm480Watts/ sqm480Watts/ sqm
Lifetime (50% brightness) ≥100000 ≥100000 ≥100000
Red wavelength (dominant) 620~625620~625620~625
Green wavelength (dominant) 525~530525~530525~530
Blue wavelength (dominant) 470~475470~475470~475
Multimedia data formatDVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical FiberUTP Cat 5/Optical FiberUTP Cat 5/Optical Fiber
ControllerNOVANOVANOVA
