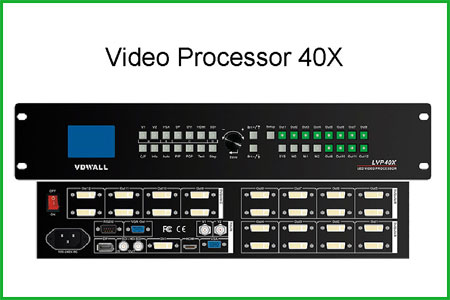

LED Video Processor 40X profile
Features
1. 10+ Bit Faroudja DCDI Cinema Processing
2. New Faroudja Real Color
3. Advanced 4×4 Pixels Interpolation Scaling Algorithm
4. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
5. Seamless Switching,Fade-in / Fade-out Switching
6. 3 display modes, and seamless switching between these modes
7. Unrestricted HD Picture-in-Picture ( PIP ) & Picture-Off-Picture( POP )
8. Independent H & V Scaling Ratios
9. HDMI 1.3a with HDCP, HD 1080p input
10. SDI / HD-SDI / 3G-SDI ( 1080p ) Input
11. Frame synchronous technology, no miss alignment or delay between two adjacent image output
12. Multi-machine in parallel, 4×4 in parallel can connect 7680 x 4320 LED screen
13. Fast 64-level output brightness adjustment
14. Easy setup and adjustment through keys on the panel
15. Press keys on frontal panel to directly select 7-channel input signal source, including:
1 x SDI / HD-SDI 1 x HDMI ( with HDCP ) 1 x DVI
1 x VGA 1 x DP ( DisplayPort ) 2 x CVBS
16. Robust 24 / 7 operation
● Notes to model
Model NO. | DVI output quantity | DVI output port quantity | The max size for P4 screen | The max size for P5 screen | The max size for P6 screen |
LVP404 | 4 | 8 | 132 | 207 | 298 |
LVP408 | 8 | 16 | 264 | 414 | 596 |
LVP412 | 12 | 24 | 396 | 621 | 894 |
● Feature one : Fade-in / Fade-out
Feature two : Frame synchronization
Specifications
Inputs |
||||
Nums / Type | 2×Composite video1×D/P( Display Port )1×VGA (RGBHV)
1×DVI 1×HDMI 1×SDI / HD-SDI |
|||
Video system | PAL / NTSC | |||
Composite VideoScope / Impedance | 1V (p_p) / 75Ω | |||
VGA Format | PC(VESA) | ≤1600×1200@60HZ | ||
VGA Scope / Impedance | R、G、B = 0.7 V (p_p) / 75Ω | |||
DVI Format | SD / HD(EIA-861B) | ≤1920×1080@60HZ | ||
PC(VESA) | ≤1600×1200@60HZ | |||
HDMI Format( HDCP ) | SD / HD(EIA-861B) | ≤1920×1080@60HZ | ||
PC(VESA) | ≤1600×1200@60HZ | |||
DP Format | SD / HD(EIA-861B) | ≤1920×1080@60HZ | ||
PC(VESA) | ≤1600×1200@60HZ | |||
SDI Format | SDI-SMPTE 259M-C | 576i @50HZ480i @60HZ | ||
HD-SDI 3G-SDI Format |
HDSDI-SMPTE292MSMPTE 274M/296M | 1080i 720P | ||
Input Connectors | VGA:15pin D_Sub( Female )DVI:24+1 DVI_D Composite video:BNCDP:DdisplayPortSDI / HD-SDI: BNC |
|||
Outputs |
||||
Nums / Type | 1×VGA( RGBHV )LVP412:24×DVI ; LVP408:16×DVI ; LVP404:8×DVI1×SDI / HD-SDI | |||
DVI Format | 1024×768@60Hz 1280×1024@60Hz 1600×1200@60Hz 1920×1080@60Hz |
|||
RGB Scope / Impedance | R、G、B=0.7V(p_p) / 75Ω | |||
Output Connectors | DVI :24+1 DVI_DRGBHV : 15pin D_sub( female ) | |||
Others |
||||
Control | Panel Button / Knob | |||
Power | 100-240VAC 60W 50 / 60Hz | |||
Operating Temp | 5-40 ℃ | |||
Humidity | 15-85% | |||
Size | 190mm(high) x 400mm(wide) x 525mm (length) | |||
Weight | 6.2Kg |
Application
Rental Performance, Abnormity screen display, Ultra large LED screen display, Mixed LED screen display, Stage Entertainment & Theater, High-end meetings & Exhibitions etc.
● Connection Diagram:
