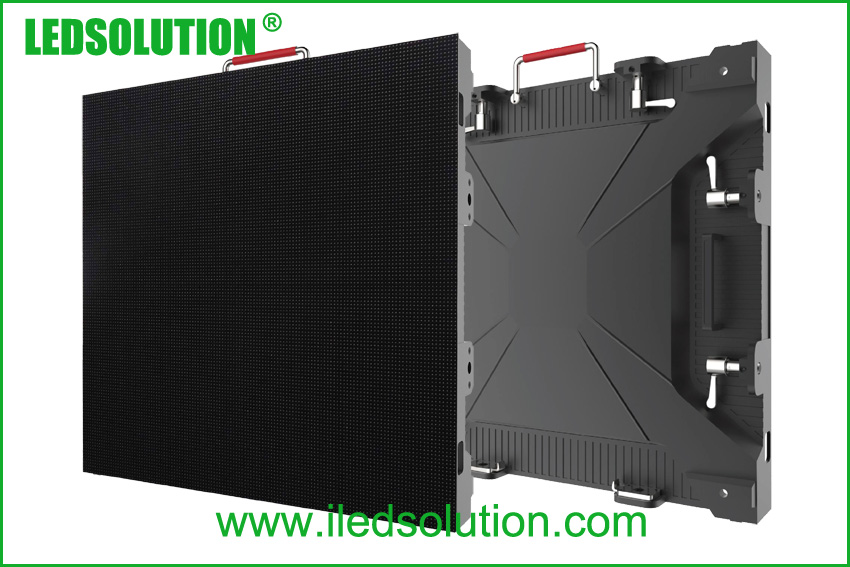

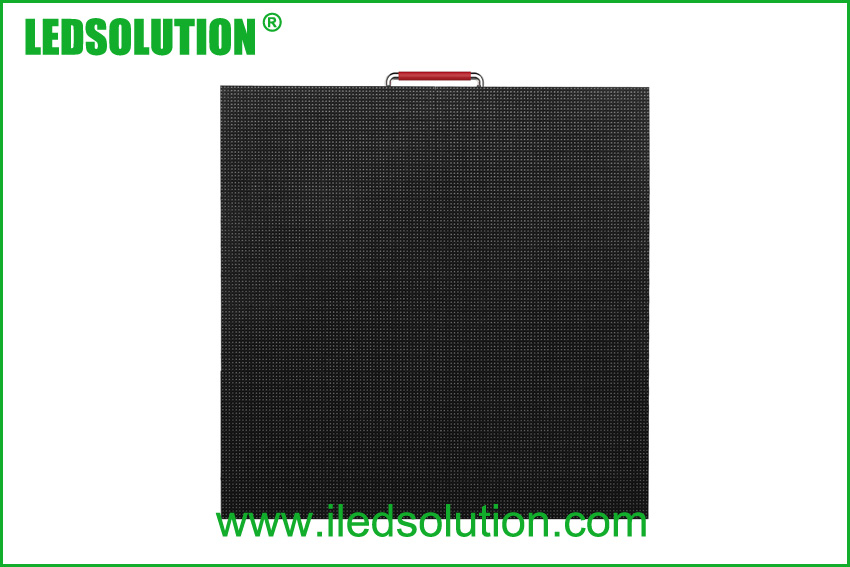

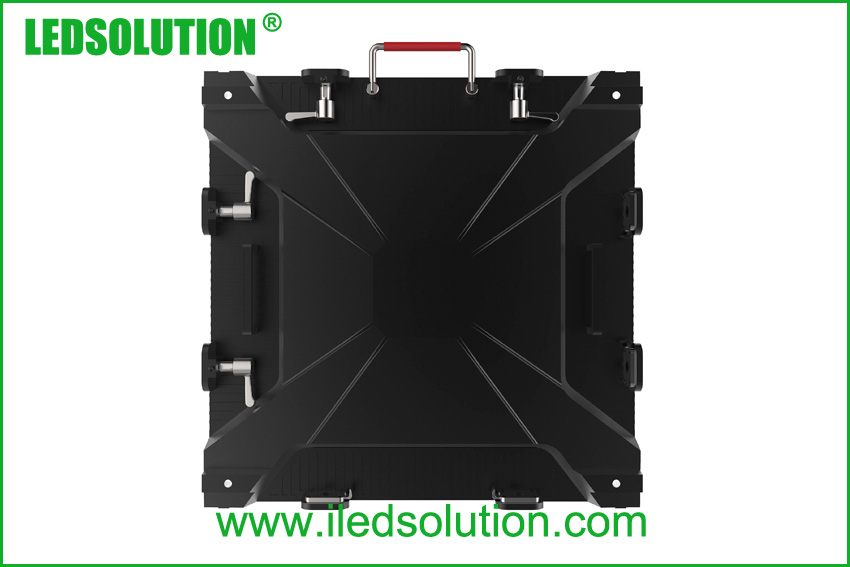

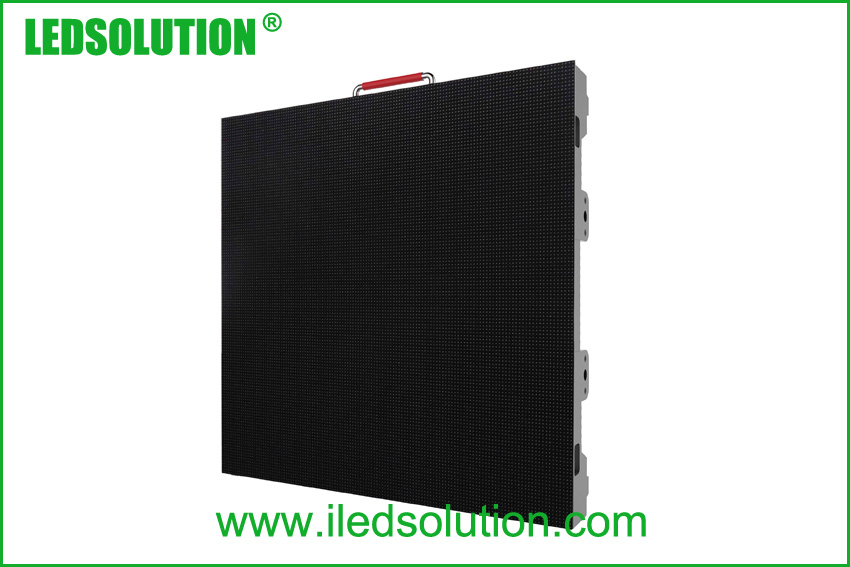

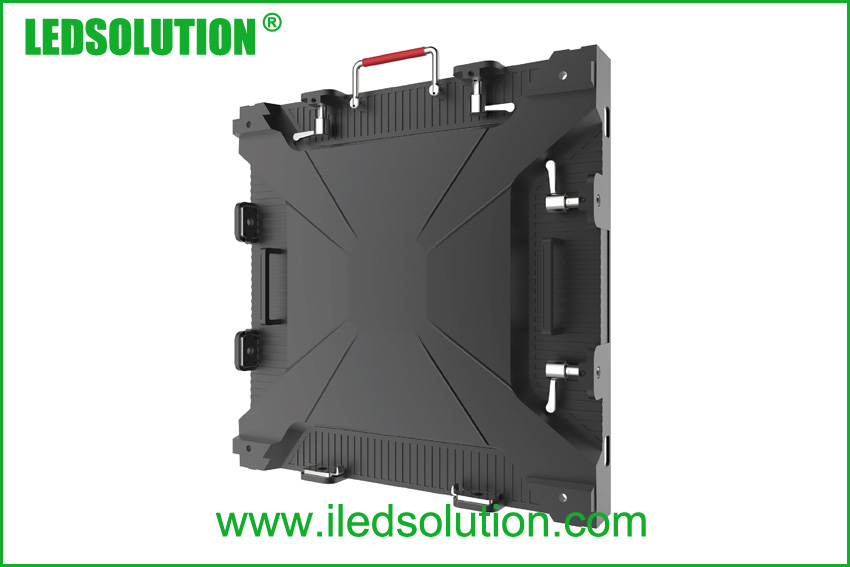

P1.875 HD LED Display
Fine Pixel Pitch LED Displays
Model: LS-DI-P1.875-MF-0.48mx0.48m
Application: HD Indoor Fixed Installation
Feature
- Light weight,one person is able to carry one cabinet and install easiy.It makes the screen convenient in assmbly and transport.
- Urtra Thin,the depth of the cabinet is less than 90mm.
- Seanless assembly,the whole cabinet is die-cast.
- State-of-art indoor 3in1 SMD.
Front Serviceable
Specification
Parameter | Value |
Model | LS-DI-P1.875-MF-0.48mx0.48m |
Pitch | 1.875mm |
Resolution per panel | 256*256pixel |
Dot per panel | 65536 |
Dot per sq. meter | 284444 |
Brightness | 1000nits |
Color temperature | 6500 deg. K |
Viewing angle – Horizontal | 140(-70 ~ +70) deg. |
Viewing angle – Vertical | 140(-70 ~ +70) deg. |
Panel weight | 8.5kg |
Panel size | 480*480*61mm |
Panel area | 0.2304 sq. m. |
Panel material | Epoxy paint coated Die-cast aluminum |
Service access | Magnet module front service |
Operating temperature range | -20 to +60 deg. C |
Humidity operating | RH 10% ~ 60% |
Pixel type and configuration | 3-in-1 SMD |
Colors | 281 Trillion |
Grey scale (linear) | 65536 Levels |
Brightness control | 256 Levels |
Contrast ratio | 3000:1 |
Processing depth | 16 bit |
Video frame rate | 60 Hertz |
Display refresh rate | 1920 Hertz |
Input voltage (nominal) | 110 to 240 VAC |
Input power frequency | 50 to 60 Hertz |
Input power (max) | 800W/sq.m |
Input power (avg.) | 320W/sq.m |
Lifetime (50% brightness) | ≥100,000 Hours |
Red wavelength (dominant) | 620~625 nm |
Green wavelength (dominant) | 520~525 nm |
Blue wavelength (dominant) | 470~475 nm |
Multimedia data format | DVI,MPG,AVI,WMV,RM etc. |
Data interconnection | UTP Cat 5 |
Mounting system | Fixed installation |
