P4 Oudoor Circular LED Display
Model: LS-FM-P4-1.024mx0.256m
Application: Outdoor Fixed Installation
Feature
- Pitch 4mm
- 360 degree design
- Outdoor Waterproof
- Visible under the sunshine
Specification
Parameter | Unit | Value |
Pitch | mm | 4 |
Brightness | nits | 3800 |
Color temperature | deg. K | 6500 |
Viewing angle -Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
Viewing angle -Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
Sign weight | kg | 12 |
Sign diameter | mm | 326 |
Sign perimeter | mm | 1024 |
Sign height | mm | 256 |
Sign area | sq. m. | 0.262 |
Sign frame material |
| Epoxy paint coated Cold rolled steel |
Sign protection |
| IP65 |
Operating temperature range | deg. C | -30 to +60 |
Humidity operating | RH | 10% ~ 90% |
Pixel type and configuration | R/G/B | 3in1 SMD |
Resolution per Sign |
| 256*64 |
Dot per Sign |
| 16384 |
Dot per sq. meter |
| 62500 |
LED per sq. meter |
| 62500 |
Recommended minimum viewing distance | m | 4 |
Recommended best viewing distance | m | 4~16 |
Colors |
| 281 trillion |
Grey scale (linear) | Levels | 65536 levels per color |
Brightness control | Levels | 100 |
Contrast ratio |
| 1000:1 |
Processing depth | bit | 16 |
Video frame rate | Hertz | 60 |
Display refresh rate | Hertz | 180~3000 |
Input voltage (nominal) | VAC | 110 to 240 |
Input power frequency | Hertz | 50 to 60 |
Input power (max) | Watts / sq. m. | 180 |
Input power (typical) | Watts / sq. m. | 100 |
Lifetime (50% brightness) | Hours | ≥100000 |
Red wavelength (dominant) | nm | 620~625 |
Green wavelength (dominant) | nm | 520~525 |
Blue wavelength (dominant) | nm | 470~475 |
Multimedia data format |
| DVI,MPG,AVI,WMV,RM etc. |
Data interconnection |
| WIFI |
Control |
| Windows app / Android App |
Mounting system |
| Fixed to wall by bolts |
Package |
| Carton |
Package size | mm | 440*540*490 |
Gross weight | Kg | 13.5 |
Volume weight | Kg | 23.5 |
Download
LS-FM-P4-1.024mx0.256m Circular Sign
Video
Project cases
Related Products

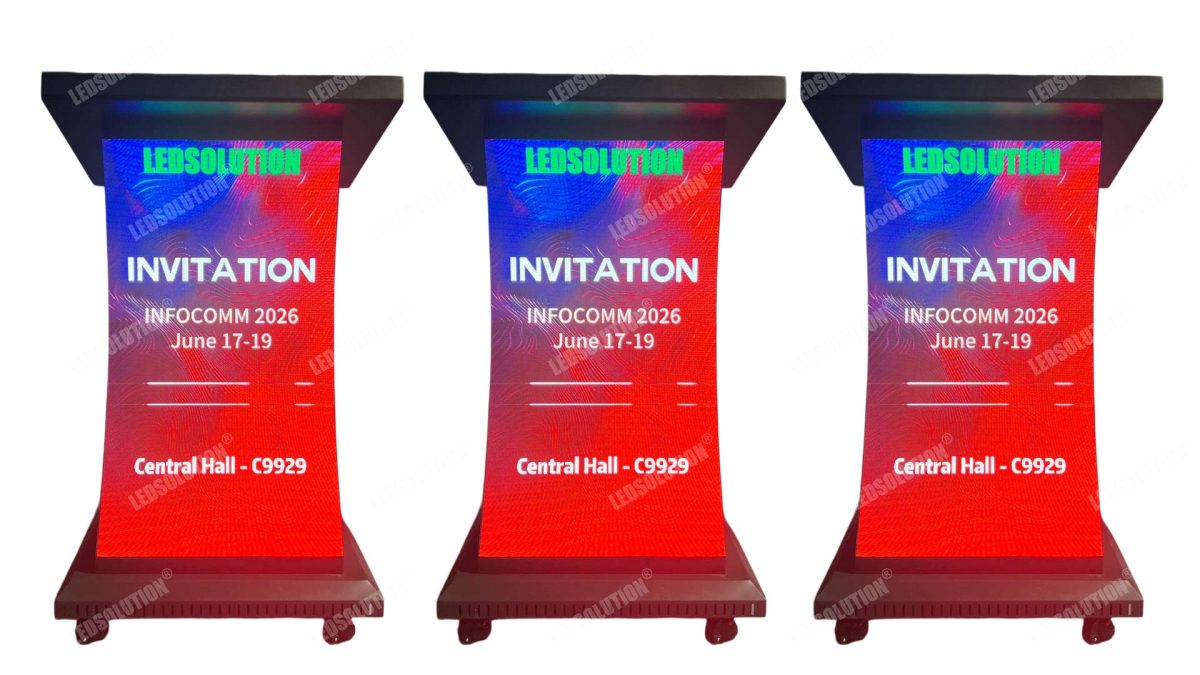

Podium LED Display
