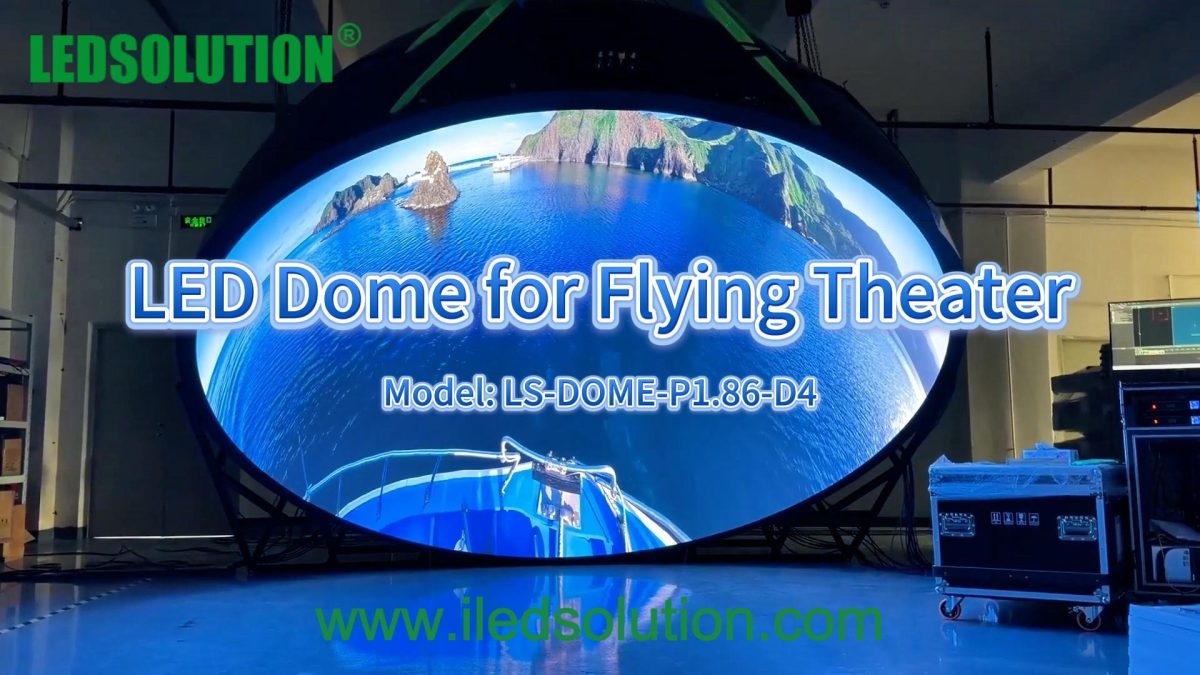

4m Flying Theater LED Dome Display | P1.8 Full-Dome LED System
Model: LS-DOME-P1.8-D4-VFOV180º-HFOV180º-25.13SQM
Application

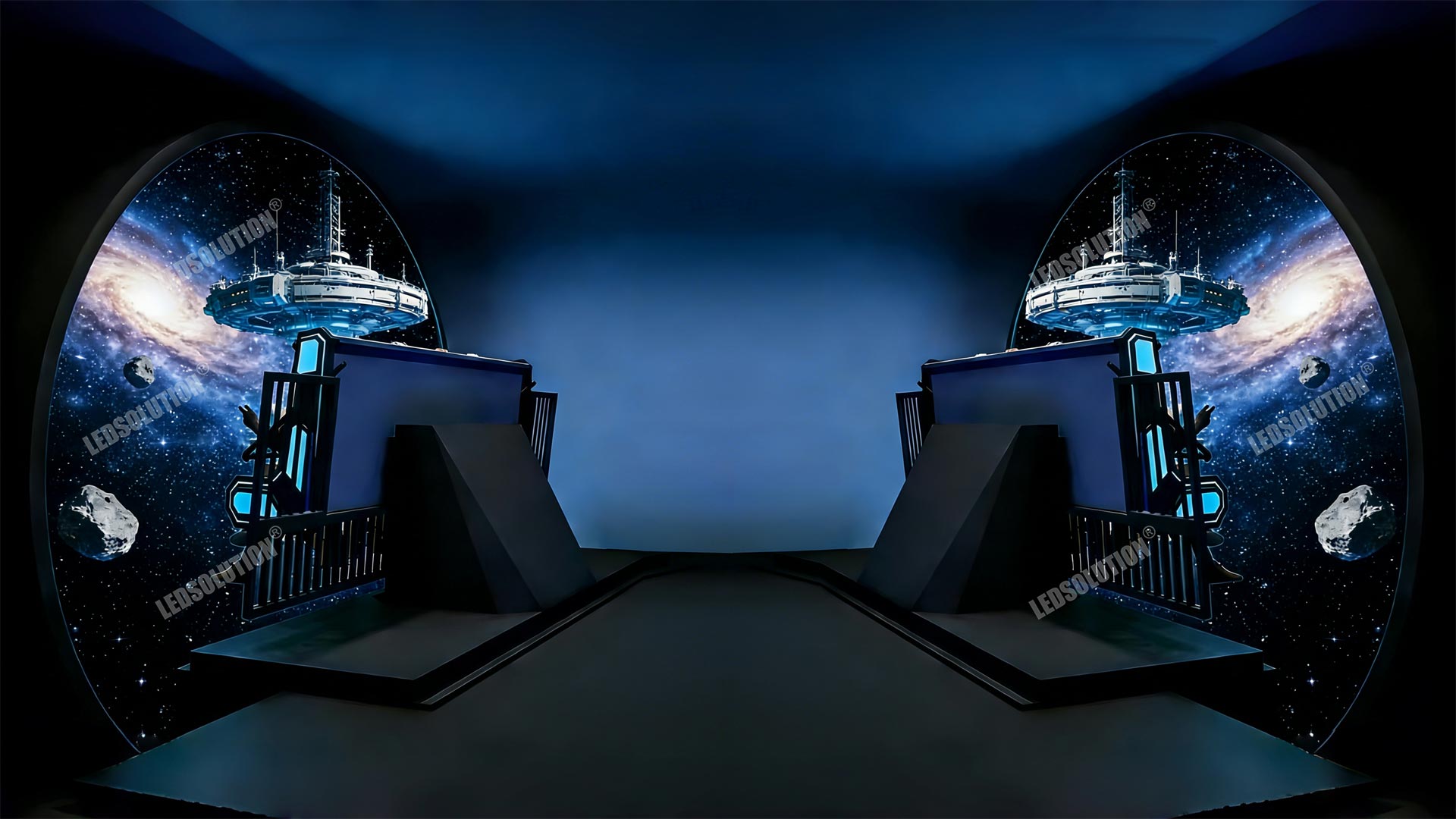

Designed for flying theater attractions, motion-based simulation systems, and dome-based immersive environments, delivering a continuous 180° visual experience for commercial and professional applications.
The LEDSOLUTION LS-DOME-P1.8-D4-VFOV180º-HFOV180º-25.13SQM is a high-performance LED Dome for Flying Theater, engineered for simulation-based attractions and immersive visual environments.
This 4m LED Dome for Flying Theater features a precision-built hemispherical structure with a diameter of 4 meters and a fine pixel pitch of 1.86mm. The system delivers a native resolution of 3360 × 3376 pixels, providing high image clarity and fine detail across the entire dome surface. The resolution density ensures stable visual performance even at close viewing distances, which is critical for flying theater and motion-based applications.
Designed to fully occupy the viewer’s field of vision, this LED Dome for Flying Theater supports 180° horizontal and 180° vertical field of view, forming a continuous wraparound visual surface. The dome is constructed using custom-engineered curved LED modules, allowing precise curvature alignment and a seamless display with no visible gaps, lines, or distortion.
Compared with traditional projection-based domes, the 4m LED Dome for Flying Theater offers higher brightness, improved contrast, and consistent image quality. Wide viewing angles and accurate color reproduction ensure uniform visuals for all audience positions, regardless of seating location.
The system adopts a modular and front-serviceable design, enabling efficient installation, maintenance, and long-term operation. Combined with professional-grade video processing and stable thermal management, the LS-DOME-P1.8-D4 provides a reliable LED dome solution for demanding commercial environments such as flying theaters, flight simulators, theme parks, museums, and immersive entertainment venues.
LED Dome Main Feature
High-Resolution P1.86mm Pixel Pitch
The fine 1.86mm pixel pitch delivers a total resolution of 3360 × 3376 pixels, ensuring sharp, detailed visuals across the entire LED Dome for Flying Theater, even at close viewing distances.
4-Meter Diameter Dome Structure
This 4m LED Dome for Flying Theater is precision-engineered to form a true hemispherical shape, providing full visual coverage and an immersive viewing environment for flying theater attractions.
Seamless Visual Surface
Custom curved LED panels create a smooth, continuous dome surface with no visible seams, maintaining image integrity across the entire LED Dome for Flying Theater.
Wide Viewing Angle Performance
The system maintains consistent brightness and color accuracy from multiple viewing angles, ensuring a clear and uniform experience for all audience seating positions.
Optimized for Flying Theater and Simulation
Specifically designed for flying theater systems, motion platforms, and simulation environments where immersive visual continuity and low distortion are essential.
Front Maintenance Access
All LED modules support front access maintenance, allowing fast servicing and component replacement without dismantling the structure, reducing operational downtime.
High Brightness and Contrast
The 4m LED Dome for Flying Theater delivers vivid colors and strong contrast, suitable for dark and semi-lit environments commonly used in immersive attractions.
Robust Structure and Stable Operation
Built with high-precision framing and industrial-grade LED components, the system is designed for continuous, long-term operation in professional venues.
Customizable and Scalable Design
The LED dome system can be adapted to different dome diameters, resolutions, and installation environments based on specific flying theater project requirements.
Professional-Grade Control System
Supports advanced video processing, multiple signal inputs, and synchronization with motion systems, ensuring accurate content playback for flying theater applications.
LED Dome Cabinet Specification
| LED Cabinet Parameter | Value |
| Model | LS-DOME-P1.8-D4-VFOV180º-HFOV180º-25.13SQM |
| Application | Indoor |
| Pitch | 1.86mm |
| Pixel density | 2890508pixel/sq.m |
| LED density | 2890508pixel/sq.m |
| Brightness | 800nit |
| Color temperature | 6500deg. K |
| Viewing angle – Horizontal | 140(-70 ~ +70) deg. |
| Viewing angle – Vertical | 140(-70 ~ +70)deg. |
| Module size(W*H) | Customized for led dome |
| Cabinet size | Refer to drawing before production |
| Cabinet material | Steel+Aluminum |
| Cabinet weight | 35kg/sqm |
| Cabinet mode | Indoor fixed installation |
| Service access | Magnet module front service |
| Ingress protection (front/rear) | IP23 |
| Operating temperature range | -30 to +60 deg. C |
| Humidity operating | 10% ~ 90% RH |
| Pixel type and configuration | 3in1 SMD |
| Recommended minimum viewing distance | 1.4m |
| Recommended best viewing distance | 1.8~20m |
| Acoustically transparent | No |
| Colors | 281 Trillion |
| Grey scale (linear) | 65536 levels per color |
| Brightness control | 100Levels |
| Contrast ratio | 3000:1 |
| Processing depth | 16bit |
| Video frame rate | 60HZ / 120HZ optional |
| Display refresh rate | 3840HZ / 7680HZ optional |
| Input voltage (nominal) | 110 or 220VAC |
| Input power frequency | 50 to 60 Hertz |
| Input power (max) | 600Watts/ sqm |
| Input power (typical) | 240Watts/ sqm |
| Lifetime (50% brightness) | ≥100000 |
| Red wavelength (dominant) | 620~625 |
| Green wavelength (dominant) | 525~530 |
| Blue wavelength (dominant) | 470~475 |
| Multimedia data format | DVI,MPG,AVI,WMV,RM etc. |
| Data interconnection | UTP Cat 5/Optical Fiber |
| Controller | LEDSOLUTION Dome Control System |
LED Dome System Specification
| LED dome parameter | |
| LED dome diameter | 4000mm |
| HFOV | 180° |
| VFOV | 180° |
| ARC of Equator | 6283mm |
| ARC in vertical | 6283mm |
| Vertical height | 4000 |
| LED area | 25.130sq.m |
| Arc minutes per pixel | 3.20Arc minutes per pixel |
| LED dome resolution(Approx.) W*H | 3360*3376pixel |
| LED dome weight | 880kg |
| LED dome weight include structure(Approx.) | 2010kg |
| LED dome power (Max) | 20104Watts |
| LED dome power (typical) | 8042Watts |
