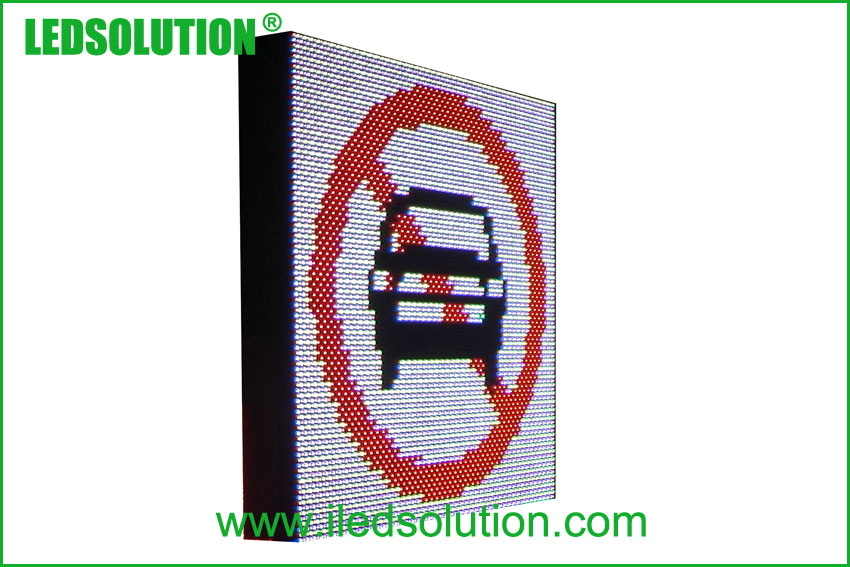

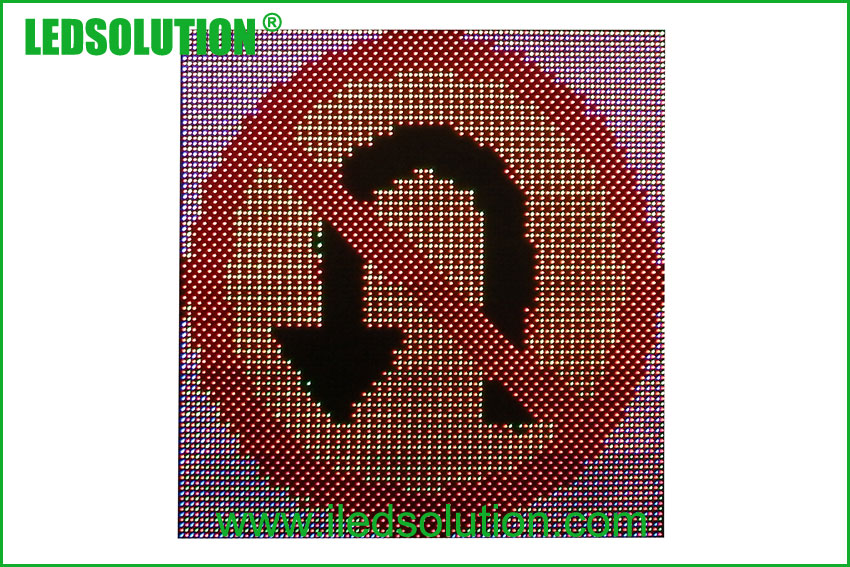

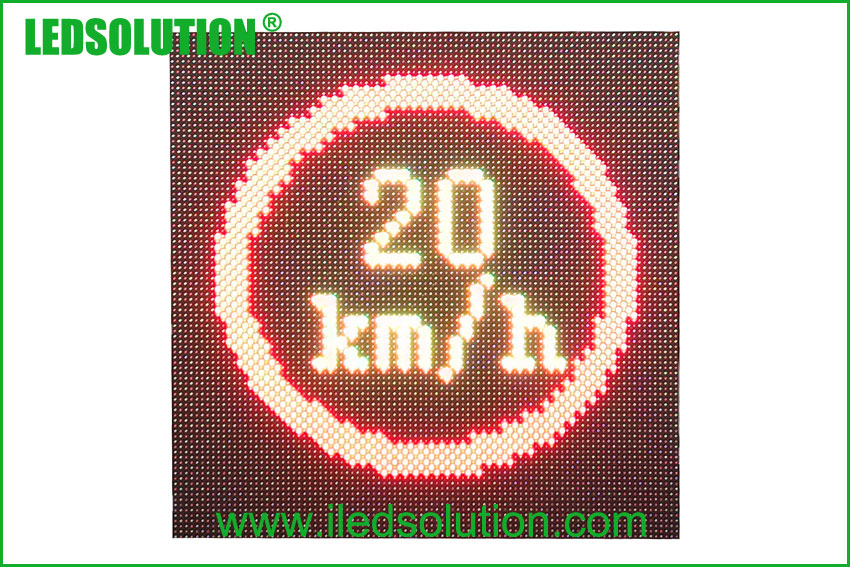

P20 Traffic LED Display

Model: LS-VMS-P20-0.96mx0.96m-IP65

Application: Outdoor traffic application


Enquiry us

Feature:

  1. Pitch 20mm;
  2. Pixel config: 2R1G1B / 1R1G1B;
  3. Brightness:8000nit+;
  4. Cabinet protection: IP65/65;
  5. Remote control by Fiber optic or 3G;
  6. Communication protocal:TCP/IP;

Specification:

Parameter Unit Value
Pitch mm 20
LEDs 5mm oval / 3mm oval
Brightness nits 8,000
Color temperature deg. K 6,500
Viewing angle – Horizontal (50% brightness) deg. 130 (+65/-65)
Viewing angle – Vertical (50% brightness) deg. 60(+30/-30)
Panel weight kg 55
Panel width mm 960
Panel height mm 960
Panel depth mm 150
Panel area sq. m. 0.9216
Panel material Epoxy paint coated steel
Panel color Black
Panel service access Back service
Ingress protection (front/rear) IP IP65/IP65
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 2,1,1 / 1,1,1
Resolution per panel 48×48
Dot per panel 2,304
Dot per sq. meter 2,500
LED per sq. meter 10,000 / 7,500
Recommended minimum viewing distance m 20
Recommended best viewing distance m 25~100
Colors 68.7 Billion
Grey scale (linear) Levels 4,096 levels per color
Brightness control Levels 8
Contrast ratio 1,000:1
Video frame rate Hertz 60
Input voltage (nominal) VAC 110
Input power frequency Hertz 50 to 60
Input power (max) Watts / panel 600
Input power (typical) Watts / panel 240
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Control system Asynchronous
Multimedia data format Ethernet
Data interconnection UTP Cat 5
Mounting system Fixed with M10 bolts
