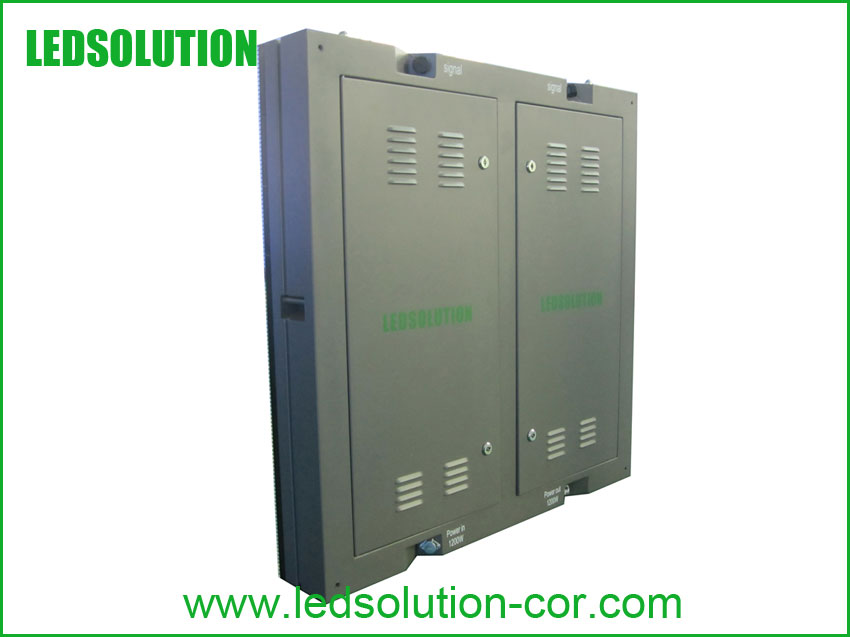

P16 Outdoor LED Display

Model: LS-O-P16-1.024mx1.024m

Application: Outdoor Fixed Installation

Enquire us

Feature:

For Outdoor fixed installation application;Weatherproof to IP65/43 standards;
High resolution images and long lifetime;
Easily configured for various size and aspect ratios;
Wide viewing angle;
Brightness from 6000 nits onwards.

Specification:

Parameter Unit Value
Pitch mm 16
Brightness nits 6,000
Color temperature deg. K 6,500
Viewing angle – Horizontal (50% brightness) deg. 130 (+65/-65)
Viewing angle – Vertical (50% brightness) deg. 60(+30/-30)
Panel weight kg 58
Panel width mm 1,024
Panel height mm 1,024
Panel depth mm 150
Panel area sq. m. 1.05
Panel material Epoxy paint coated Cold rolled steel
Ingress protection (front/rear) IP IP65/IP43
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 1,1,1
Resolution per panel 64×64
Dot per panel 4,096
Dot per sq. meter 3,906
LED per sq. meter 11,718
Recommended minimum viewing distance m 16
Recommended best viewing distance m 22~53
Colors 281 trillion
Grey scale (linear) Levels 65,536s per color
Brightness control Levels 100
Contrast ratio 1,000:1
Processing depth bit 16
Video frame rate Hertz 60
Display refresh rate Hertz 180~3,000
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts / panel 1,200
Input power (typical) Watts / panel 480
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 520~525
Blue wavelength (dominant) nm 470~475
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
Mounting system Fixed with 4pcs M10 bolts



Download:

LS-O-P16-1.28mx0.768m-IP65.pdf

LS-O-P16-1.024mx1.024m(1R1G1B).pdf
