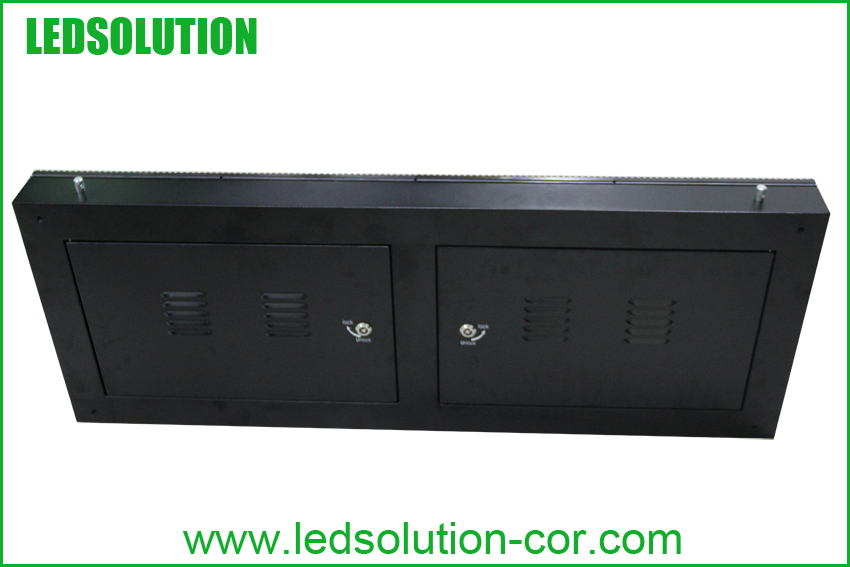

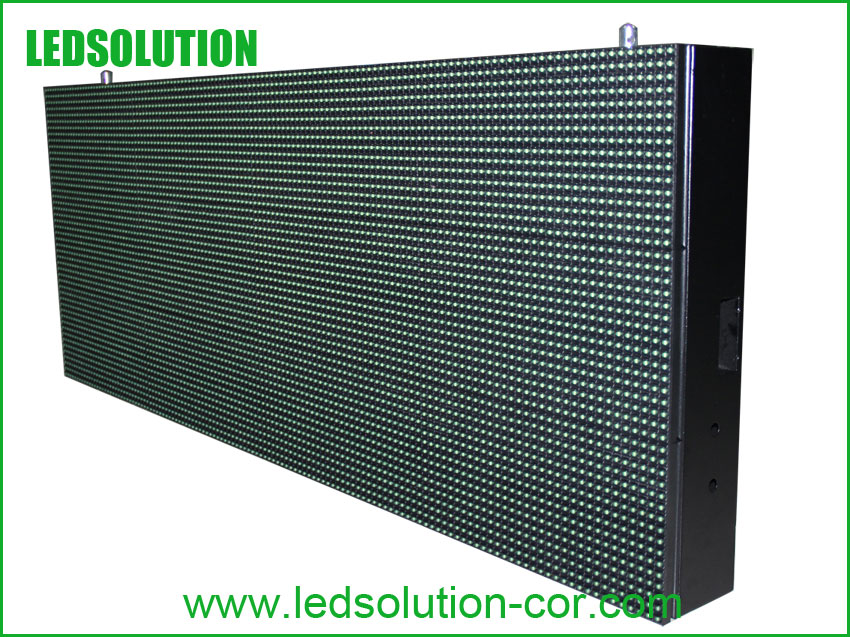

Modular Gas Price LED Display A

Application: Outdoor Gas Price LED Display

Enquire us

Feature:

  1. For Outdoor Gas price station to show gas price;
  2. Weatherproof to IP65 standards;
  3. High resolution images and long lifetime;
  4. Easily configured for various size and aspect ratios;
  5. Wide viewing angle;
  6. Brightness from 3600nit onwards.
  7. Color option: red/green/blue/white;
  8. RF wireless communication, RF remote controller;
  9. Any font of number is available.

Specification:

Parameter Unit Value
Pitch mm 10
Brightness nits 3,600
Color deg. K RED/GREEN/BLUE/WHITE
Viewing angle – Horizontal (50% brightness) deg. 130 (+65/-65)
Viewing angle – Vertical (50% brightness) deg. 60(+30/-30)
Panel weight kg 24
Panel width mm 1280
Panel height mm 480
Panel depth mm 120
Panel area sq. m. 0.6144
Panel material Epoxy paint coated Cold rolled steel
Ingress protection (front/rear) IP IP65/IP43
Operating temperature range deg. C -30 to +60
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B/W 1
Resolution per panel 128×48
Dot per panel 6,144
Dot per sq. meter 10,000
LED per sq. meter 10,000
Recommended minimum viewing distance m 7.6
Recommended best viewing distance m 10~30
Brightness control Levels 8
Contrast ratio 1,000:1
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts / cabinet 200
Input power (typical) Watts / cabinet 80
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 525~530
Blue wavelength (dominant) nm 470~475
White K 6000
Multimedia data format Text & Graphic
Data interconnection UTP Cat 5/Optical Fiber
Mounting system Fixed with 4pcs M10 bolts
