Horn LED Display

Application: Bar, Club, shopping mall

Enquire us

Feature:

* Pitch option: 40mm, 50mm, 60mm, 80mm,100mm
* Easy to maintain
* Creative design
* Customized shape.
Specification:

Parameter Unit Value
Product Model   LS-DF80I
Pitch mm 80
Pixel density Dot/sqm 156
Brightness nits 450
Color temperature deg. K 6500
Viewing angle – Horizontal (50% brightness) deg. 140(-70 ~ +70)
Viewing angle – Vertical (50% brightness) deg. 140(-70 ~ +70)
Dot size Mm 18x18x10.5
Dot weight G 5
Operating temperature range deg. C -30 to +60
Panel Material   PC
Humidity operating RH 10% ~ 90%
Pixel type and configuration R/G/B 3in1 SMD
Service access   Front service
Input voltage (nominal) VAC 110 to 240
Input power frequency Hertz 50 to 60
Input power (max) Watts/m2 70
Input power (typical) Watts/m2 35
Lifetime (50% brightness) Hours ≥100,000
Red wavelength (dominant) nm 620~625
Green wavelength (dominant) nm 525~530
Blue wavelength (dominant) nm 470~475
Control system   PC based dynamic capture&mapping


Photos:


LEDSOLUTION Vortex LED Display

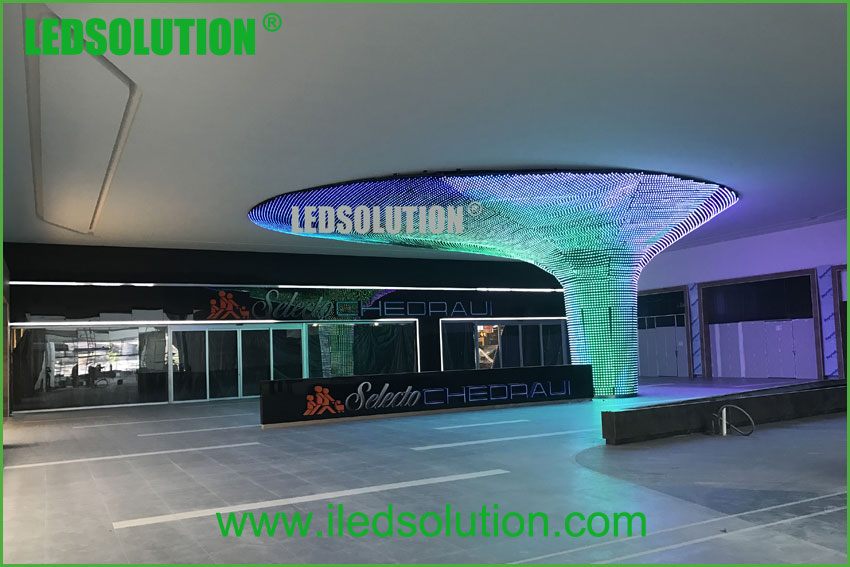

Horn LED Display



P80 Horn LED Sign
