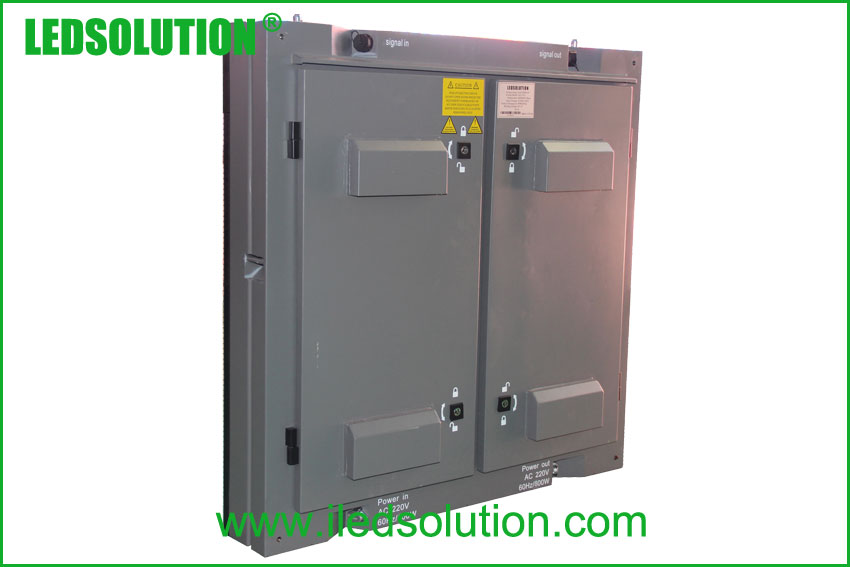

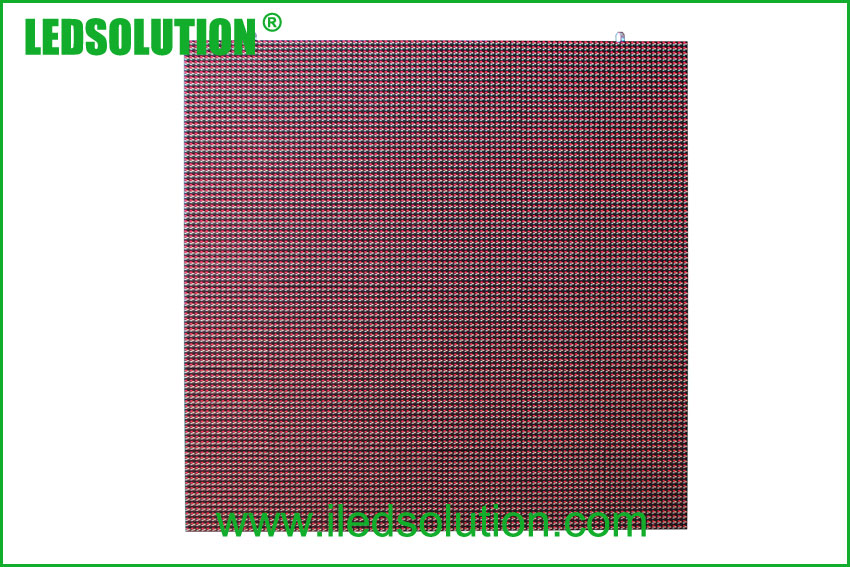

P10 Traffic LED Display
Model: LS-VMS-P10-0.96mx0.96m-IP65
Application: Outdoor traffic application
Feature:
- Pitch 10mm;
- Pixel config: 1R1G1B;
- Brightness:6000~8000nit;
- Cabinet protection: IP65/65;
- Cabinet size: 0.96mx0.96m
- Remote control by Fiber optic or 3G;
- Communication protocal:TCP/IP;
Specification:
| Parameter | Unit | Value |
| Pitch | mm | 10 |
| LEDs | DIP LED | |
| Brightness | nits | 8,000 |
| Color temperature | deg. K | 6,500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 130 (+65/-65) |
| Viewing angle – Vertical (50% brightness) | deg. | 60(+30/-30) |
| Panel weight | kg | 55 |
| Panel width | mm | 960 |
| Panel height | mm | 960 |
| Panel depth | mm | 150 |
| Panel area | sq. m. | 0.9216 |
| Panel material | Epoxy paint coated steel | |
| Panel color | Black / White / Gray | |
| Panel service access | Back service | |
| Ingress protection (front/rear) | IP | IP65/IP65 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 1,1,1 |
| Resolution per panel | 96×96 | |
| Dot per panel | 9,216 | |
| Dot per sq. meter | 10,000 | |
| LED per sq. meter | 30,000 | |
| Recommended minimum viewing distance | m | 7.6 |
| Recommended best viewing distance | m | 10~100 |
| Colors | 68.7 Billion | |
| Grey scale (linear) | Levels | 4,096 levels per color |
| Brightness control | Levels | 8 |
| Contrast ratio | 1,000:1 | |
| Video frame rate | Hertz | 60 |
| Input voltage (nominal) | VAC | 110 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts / panel | 800 |
| Input power (typical) | Watts / panel | 320 |
| Lifetime (50% brightness) | Hours | ≥100,000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Control system | Asynchronous | |
| Multimedia data format | Ethernet | |
| Data interconnection | UTP Cat 5 | |
| Mounting system | Fixed with M10 bolts |
