The S960 Series Aluminum Outdoor LED Display is the ideal solution for outdoor fixed installations, combining durability and advanced design features. Crafted with aluminum cabinets and modules, it excels in heat dissipation, ensuring optimal performance in various outdoor conditions.

This display boasts a range of innovative features, starting with hidden wiring, which not only enhances aesthetics but also ensures safety and reliability. The cabinet’s slim profile, measuring just 80mm in depth, offers a sleek and space-saving design, making it suitable for a variety of outdoor installations.

One standout feature is the cable-free module system, simplifying installation and maintenance. The dual-service capability, with both front and back service options, further streamlines maintenance procedures, ensuring minimal downtime and efficient servicing.

With available pixel pitch options of 5.7mm, 6.67mm, 8mm, and 10mm, the S960 Series can cater to diverse display requirements while maintaining excellent image quality. Despite its robust build, the lightweight cabinet, weighing only 30kg per square meter, simplifies installation and transportation.

Moreover, this display guarantees perfect flatness, ensuring a seamless and distortion-free visual experience. Whether you need a high-resolution outdoor display for advertising, events, or information dissemination, the S960 Series Aluminum Outdoor LED Display offers an outstanding solution that’s reliable, versatile, and visually impressive.

PITCH OPTION & SPECIFICATION

Parameter	Value	Value	Value	Value	Value	Value	Value
Model	S960-P4	S960-P4.4	S960-P5	S960-P5.7	S960-P6.67	S960-P8	S960-P10
Application	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Pitch	4	4.4	5	5.7	6.67	8	10
Pixel density	62500pixel	51566pixel	40000pixel	30625pixel	22500pixel	15625pixel	10000pixel
LED density	62500pixel	51566pixel	40000pixel	30625pixel	22500pixel	15625pixel	10000pixel
Brightness	6000nit	6000nit	6000nit	6000nit	6000nit	6000nit	6000nit
Color temperature	6500deg. K	6500deg. K	6500deg. K	6500deg. K	6500deg. K	6500deg. K	6500deg. K
Viewing angle – Horizontal	140(-70 ~ +70) deg.	140(-70 ~ +70) deg.	140(-70 ~ +70) deg.	140(-70 ~ +70) deg.	140(-70 ~ +70) deg.	140(-70 ~ +70) deg.	140(-70 ~ +70) deg.
Viewing angle – Vertical	140(-70 ~ +70)deg.	140(-70 ~ +70)deg.	140(-70 ~ +70)deg.	140(-70 ~ +70)deg.	140(-70 ~ +70)deg.	140(-70 ~ +70)deg.	140(-70 ~ +70)deg.
Module size(W*H)	480*320mm	480*320mm	480*320mm	480*320mm	480*320mm	480*320mm	480*320mm
Module resolution(W*H)	120*80pixels	108*72pixels	96*64pixels	84*56pixels	72*48pixels	60*40pixels	48*32pixels
Module case material	Diecast aluminum	Diecast aluminum	Plastic	Plastic / Diecast aluminum	Plastic / Diecast aluminum	Plastic / Diecast aluminum	Plastic / Diecast aluminum

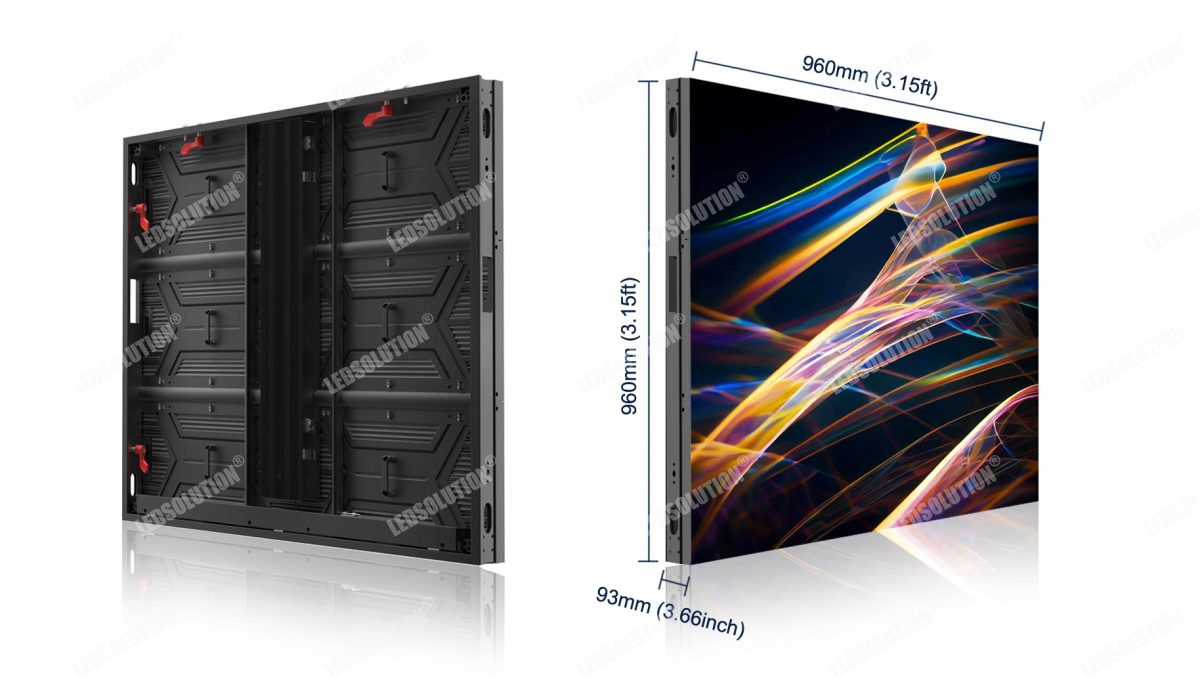

Cabinet size(W*H*D)	960*960*93mm	960*960*93mm	960*960*93mm	960*960*93mm	960*960*93mm	960*960*93mm	960*960*93mm
Cabinet sq. meter	0.9216 SQM	0.9216 SQM	0.9216 SQM	0.9216 SQM	0.9216 SQM	0.9216 SQM	0.9216 SQM
Cabinet resolution(W*H)	240*240pixels	218*218pixels	192*192pixels	168*168pixels	148*148pixels	120*120pixels	96*96pixels
Cabinet material	Aluminum profile	Aluminum profile	Aluminum profile	Aluminum profile	Aluminum profile	Aluminum profile	Aluminum profile
Cabinet weight	28	28	28	28	28	28	28
Cabinet mode	Outdoor fixed installation	Outdoor fixed installation	Outdoor fixed installation	Outdoor fixed installation	Outdoor fixed installation	Outdoor fixed installation	Outdoor fixed installation
Service access	Front & Back	Front & Back	Front & Back	Front & Back	Front & Back	Front & Back	Front & Back
Ingress protection (front/rear)	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65
Operating temperature range	-30 to +60 deg. C	-30 to +60 deg. C	-30 to +60 deg. C	-30 to +60 deg. C	-30 to +60 deg. C	-30 to +60 deg. C	-30 to +60 deg. C
Humidity operating	10% ~ 90% RH	10% ~ 90% RH	10% ~ 90% RH	10% ~ 90% RH	10% ~ 90% RH	10% ~ 90% RH	10% ~ 90% RH
Pixel type and configuration	3in1 SMD	3in1 SMD	3in1 SMD	3in1 SMD	3in1 SMD	3in1 SMD	3in1 SMD
Recommended minimum viewing distance	3.0m	3.3m	3.8m	4.3m	5.1m	6.1m	7.6m
Recommended best viewing distance	4~200m	4.4~200m	5~200m	5.7~200m	6.67~200m	8~200m	10~200m
Colors	281 Trillion	281 Trillion	281 Trillion	281 Trillion	281 Trillion	281 Trillion	281 Trillion
Grey scale (linear)	65536 levels per color	65536 levels per color	65536 levels per color	65536 levels per color	65536 levels per color	65536 levels per color	65536 levels per color
Brightness control	256Levels	256Levels	256Levels	256Levels	256Levels	256Levels	256Levels
Contrast ratio	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1	5000:1
Processing depth	16bit	16bit	16bit	16bit	16bit	16bit	16bit
Video frame rate	60Hertz	60Hertz	60Hertz	60Hertz	60Hertz	60Hertz	60Hertz
Display refresh rate	3840Hertz	3840Hertz	3840Hertz	3840Hertz	3840Hertz	3840Hertz	3840Hertz
Input voltage (nominal)	110 or 220VAC	110 or 220VAC	110 or 220VAC	110 or 220VAC	110 or 220VAC	110 or 220VAC	110 or 220VAC
Input power frequency	50 to 60 Hertz	50 to 60 Hertz	50 to 60 Hertz	50 to 60 Hertz	50 to 60 Hertz	50 to 60 Hertz	50 to 60 Hertz
Input power (max)	800W/SQM	800W/SQM	800W/SQM	800W/SQM	800W/SQM	800W/SQM	800W/SQM
Input power (typical)	320W/SQM	320W/SQM	320W/SQM	320W/SQM	320W/SQM	320W/SQM	320W/SQM
Lifetime (50% brightness)	≥100000	≥100000	≥100000	≥100000	≥100000	≥100000	≥100000
Red wavelength (dominant)	620~625nm	620~625nm	620~625nm	620~625nm	620~625nm	620~625nm	620~625nm
Green wavelength (dominant)	525~530nm	525~530nm	525~530nm	525~530nm	525~530nm	525~530nm	525~530nm
Blue wavelength (dominant)	470~475nm	470~475nm	470~475nm	470~475nm	470~475nm	470~475nm	470~475nm
Multimedia data format	DVI,MPG,AVI,WMV,RM etc.	DVI,MPG,AVI,WMV,RM etc.	DVI,MPG,AVI,WMV,RM etc.	DVI,MPG,AVI,WMV,RM etc.	DVI,MPG,AVI,WMV,RM etc.	DVI,MPG,AVI,WMV,RM etc.	DVI,MPG,AVI,WMV,RM etc.
Data interconnection	UTP Cat 5/Optical Fiber	UTP Cat 5/Optical Fiber	UTP Cat 5/Optical Fiber	UTP Cat 5/Optical Fiber	UTP Cat 5/Optical Fiber	UTP Cat 5/Optical Fiber	UTP Cat 5/Optical Fiber
Controller	NOVA	NOVA	NOVA	NOVA	NOVA	NOVA	NOVA
