LEDSOLUTION S1000 series outdoor LED display is designed for fixed installation applications. What makes it different from other outdoor fixed installation LED displays?

The cabinet is slim, only 90mm thick. It adopts cable-free & waterproof independent modules. It’s very convenient and fast to assemble or maintain. It supports both front & rear service, so it can fit different installation site conditions well. The 1000x1000mm cabinet size is not only easy to calculate the screen size, but also cost-effective.

It’s indeed an ideal product you can consider to replace other fixed installation outdoor cabinets, especially traditional thick & heavy steel cabinets.

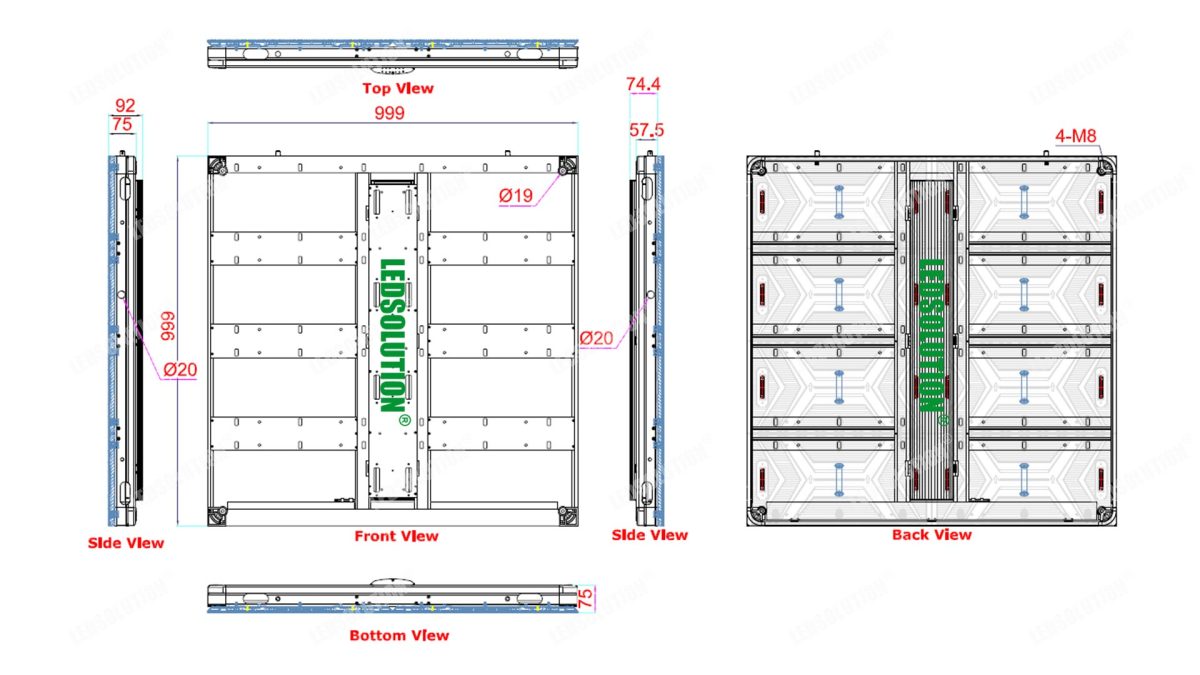

CABINET SIZE

1000*1000*90mm

CABLE-FREE

&

WATERPROOF

Independent LED Module

AVAILABLE PIXEL PITCH

3.91mm / 4.81mm / 6.25mm / 7.81mm / 10.41mm

Super Light

23kg/sq.meter

SUPER SLIM

90mm

OTHER FEATURES

  • Thin: cabinet thickness is 90mm
  • Lightweight: only 23kg/sqm
  • Support both front & rear service. It can fit various installation conditions.
  • Cable-free module design. Fast in installation and reduce failure rate.
  • Easy & fast to assemble or remove the modules with a small tool.
  • Neat and beautiful screen back. Cables between cabinets are covered at bottom. This design can also protect the cables from long-term exposure under the sunlight.
  • Excellent image performance.
  • Reliable and durable.

PITCH OPTION & SPECIFICATION

ParameterValue Value Value Value Value
ModelS1000-P3.91S1000-P4.81S1000-P6.25S1000-P7.81S1000-P10.41
ApplicationOutdoorOutdoorOutdoorOutdoorOutdoor
Pitch3.91 mm4.81 mm6.25 mm7.81 mm10.41 mm
Pixel density65536 pixels43222 pixels25600 pixels16384 pixels9216 pixels
LED density65536 pixels43222 pixels25600 pixels16384 pixels9216 pixels
Brightness 6000nit6000nit6000nit6000nit6000nit
Color temperature 6500deg. K 6500deg. K 6500deg. K 6500deg. K 6500deg. K
Viewing angle – Horizontal140(-70 ~ +70) deg. 140(-70 ~ +70) deg. 140(-70 ~ +70) deg. 140(-70 ~ +70) deg. 140(-70 ~ +70) deg.
Viewing angle – Vertical140(-70 ~ +70)deg. 140(-70 ~ +70)deg. 140(-70 ~ +70)deg. 140(-70 ~ +70)deg. 140(-70 ~ +70)deg.
Module size(W*H)500*250mm500*250mm500*250mm500*250mm500*250mm
Module resolution(W*H)128*64 pixels104*52 pixels160*80 pixels64*32 pixels48*24 pixels
Cabinet size(W*H*D)1000*1000*90mm1000*1000*90mm1000*1000*90mm1000*1000*90mm1000*1000*90mm
Cabinet sq. meter1 sq. meter1 sq. meter1 sq. meter1 sq. meter1 sq. meter
Cabinet resolution(W*H)256*256 pixels208*208 pixels320*320 pixels128*128 pixels96*96 pixels
Cabinet material Aluminum profileAluminum profileAluminum profileAluminum profileAluminum profile
Cabinet weight 23kg23kg23kg23kg23kg
Cabinet modeOutdoor fixed installationOutdoor fixed installationOutdoor fixed installationOutdoor fixed installationOutdoor fixed installation
Service accessFront & BackFront & BackFront & BackFront & BackFront & Back
Ingress protection (front/rear) IP65/IP65IP65/IP65IP65/IP65IP65/IP65IP65/IP65
Operating temperature range -30 to +60 deg. C-30 to +60 deg. C-30 to +60 deg. C-30 to +60 deg. C-30 to +60 deg. C
Humidity operating10% ~ 90% RH10% ~ 90% RH10% ~ 90% RH10% ~ 90% RH10% ~ 90% RH
Pixel type and configuration 3in1 SMD 3in1 SMD 3in1 SMD 3in1 SMD 3in1 SMD
Recommended minimum viewing distance 3.0 m3.7 m4.8 m5.9 m7.9 m
Recommended best viewing distance3.91~200m4.81~200m6.25~200m7.81~200m10.41~200m
Colors  281 Trillion281 Trillion281 Trillion281 Trillion281 Trillion
Grey scale (linear) 65536 levels per color 65536 levels per color 65536 levels per color 65536 levels per color 65536 levels per color
Brightness control 100Levels 100Levels 100Levels 100Levels 100Levels
Contrast ratio 3000:13000:13000:13000:13000:1
Processing depth 16bit 16bit 16bit 16bit 16bit
Video frame rate 60Hertz 60Hertz 60Hertz 60Hertz 60Hertz
Display refresh rate 1920 / 3840Hertz1920 / 3840Hertz1920 / 3840Hertz1920 / 3840Hertz1920 / 3840Hertz
Input voltage (nominal) 110 / 220VAC110 / 220VAC110 / 220VAC110 / 220VAC110 / 220VAC
Input power frequency 50 / 60 Hertz 50 / 60 Hertz 50 / 60 Hertz 50 / 60 Hertz 50 / 60 Hertz
Input power (max) 800W800W800W800W800W
Input power (typical)320W320W320W320W320W
Lifetime (50% brightness) 100000 hours100000 hours100000 hours100000 hours100000 hours
Red wavelength (dominant) 620~625nm620~625nm620~625nm620~625nm620~625nm
Green wavelength (dominant) 525~530nm525~530nm525~530nm525~530nm525~530nm
Blue wavelength (dominant) 470~475nm470~475nm470~475nm470~475nm470~475nm
Multimedia data formatDVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical FiberUTP Cat 5/Optical FiberUTP Cat 5/Optical FiberUTP Cat 5/Optical FiberUTP Cat 5/Optical Fiber
ControllerNOVANOVANOVANOVANOVA
