P4.81 Die-cast Outdoor LED Display

Model: LS-DO-P4.81-0.5mx1m-A

Application: Outdoor Rental or Fixed Installation

Feature

  • Pitch: 4.81mm
  • Outdoor application
  • Light weight: one person is able to carry one cabinet easily, very convenient in assembly and transport
  • Urtra Thin: Depth of the cabinet is 65mm only,Save space for both the application site and transportation
  • Precise Die-cast Aluminum Cabinet: seamless assembly
  • Easy to maintain
  • Removable center cabinet
  • Cabinet weight only 12kg
  • Outdoor Application

Specification

Parameter Value
Model LS-DO-P4.81-0.5mx1m-A
Application Outdoor
Pitch 4.81mm
Pixel density 43264 pixel/sq.m
LED density 43264 pixel/sq.m
Brightness 4000nit
Color temperature 6500deg. K
Viewing angle – Horizontal 140(-70 ~ +70) deg.
Viewing angle – Vertical 140(-70 ~ +70)deg.
Module size(W*H) 250*250mm
Module resolution(W*H) 52*52pixel

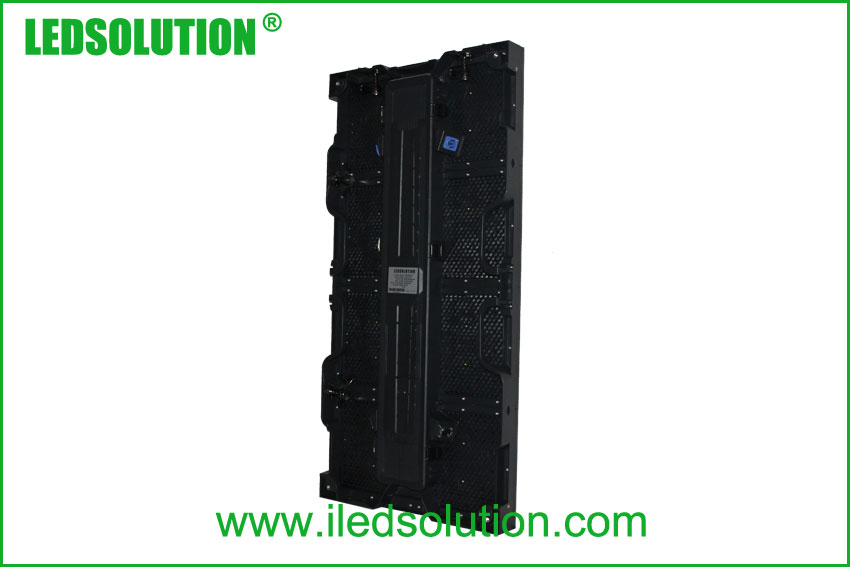

Cabinet size(W*H) 500*1000mm
Cabinet depth 65mm
Cabinet sq. meter 0.5sq.m
Cabinet resolution(W*H) 104*208pixel
Cabinet material Die-cast Aluminum
Cabinet weight 12kg/cabinet
Cabinet mode Rental & Fixed
Service access Back service
Ingress protection (front/rear) IP65/IP65
Operating temperature range -30 to +60 deg. C
Humidity operating 10% ~ 90% RH
Pixel type and configuration 3in1 SMD
Recommended minimum viewing distance 3.6m
Recommended best viewing distance 4~200m
Colors  281 Trillion
Grey scale (linear) 65536 levels per color
Brightness control 100Levels
Contrast ratio 2000:1
Processing depth 16bit
Video frame rate 60Hertz
Display refresh rate 1920Hertz
Input voltage (nominal) 110 or 220VAC
Input power frequency 50 to 60 Hertz
Input power (max) 600 Watts/ cabinet
Input power (typical) 240 Watts/ cabinet
Lifetime (50% brightness) ≥100000
Red wavelength (dominant) 620~625
Green wavelength (dominant) 525~530
Blue wavelength (dominant) 470~475
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
Controller NOVA
