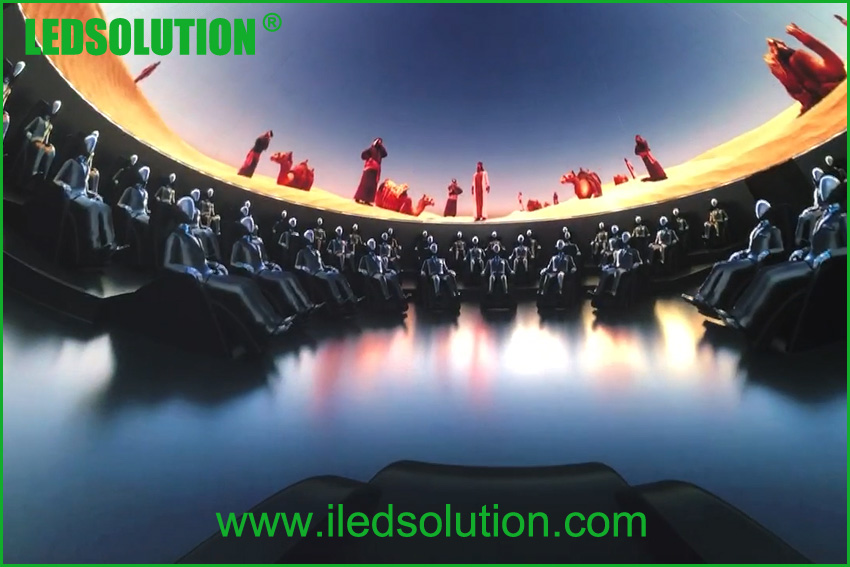

P2 LED Dome System

Model: LS-DOME-P2-D5

Application: Flight simulator, military maritime application, helicopter training, aerospace application, flight theater.

LED Dome System replaces Projector for flight simulation, aerospace application, flight cinema…. which has become an irresistible trend after LED technical innovation.
LED Dome System has great advantages: less space needed, higher brightness, higher contrast ratio, really black and finer gray scale, wider color gamut, more realistic images, longer life span, easier mantain, size unlimited…

LED Dome Cabinet Specification

Model LS-DOME-P2-D5-V(-45º~+27º)-H225º-28.5SQM
Application Indoor
Pitch 2mm
Pixel density 250000pixel/sq.m
LED density 250000pixel/sq.m
Brightness 800nit
Color temperature 6500deg. K
Viewing angle – Horizontal 140(-70 ~ +70) deg.
Viewing angle – Vertical 140(-70 ~ +70)deg.
Module size(W*H) Customized for led dome
Cabinet size refer to drawing before production
Cabinet material Steel+Aluminum
Cabinet weight 35kg/sqm
Cabinet mode Indoor fixed installation
Service access Magnet module front service & Back Service
Ingress protection (front/rear) IP23
Operating temperature range -30 to +60 deg. C
Humidity operating 10% ~ 90% RH
Pixel type and configuration 3in1 SMD
Recommended minimum viewing distance 1.5m
Recommended best viewing distance 2~200m
Colors  281 Trillion
Grey scale (linear) 65536 levels per color
Brightness control 100Levels
Contrast ratio 3000:1
Processing depth 16bit
Video frame rate 60HZ / 120HZ optional
Display refresh rate 3840HZ / 7680HZ optional
Input voltage (nominal) 110 or 220VAC
Input power frequency 50 to 60 Hertz
Input power (max) 600Watts/ sqm
Input power (typical) 240Watts/ sqm
Lifetime (50% brightness) ≥100000
Red wavelength (dominant) 620~625
Green wavelength (dominant) 525~530
Blue wavelength (dominant) 470~475
Multimedia data format DVI,MPG,AVI,WMV,RM etc.
Data interconnection UTP Cat 5/Optical Fiber
Controller LEDSOLUTION Dome Control System

LED Dome System Specification

LED Dome diameter 5000mm
HFOV 225°
VFOV -45º~+27º
ARC of Equator 9817mm
ARC in vertical 3142mm
Vertical height 2903mm
LED area 28.500sq.m
Arc minutes per pixel 2.08Arc minutes per pixel
LED dome resolution(Approx.) W*H 4800*1536pixel
LED dome weight 998kg
LED dome weight include structure(Approx.) 2280kg
LED dome power (Max) 17200Watts
LED dome power (typical) 6880Watts
