LED Video Processor 820H

Video processor is one of the equipment for led system if the led video source is not only come from control PC.

Features

1. 10+ Bit Faroudja DCDI Cinema Processing
2. New Faroudja Real Color
3.Faroudja TureLife video inhancer
4. Advanced 4×4 Pixels Interpolation Scaling Algorithm
5. HDMI 1.3a with HDCP, HD 1080P input
6. 10-bit Processing
7. Pre-switch, seamless switch, fade-in / fade-out functions in random input signals
8. Unrestricted PIP display( PIP / POP )
9. 1920×1080@60Hz maximal output for single machine
10. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command
for operating and setting
11. Press keys or knob on frontal panel to directly select 4-channel input signal source,
including 2 × CVBS, 1 × DVI / HDMI, 1 × VGA
12. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI, there are 3-channel audio
for synchronous switch
13. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
14. 24 / 7 Application, High reliability and stability

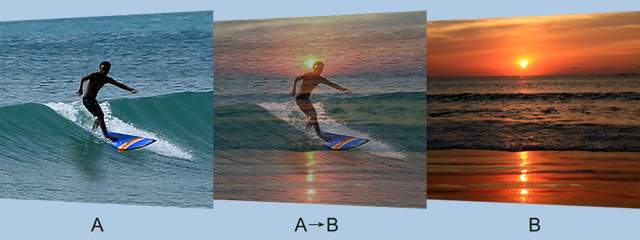

Fade-in / Fade-out

HD PIP, HD POP

Specification

Inputs
Nums / Type	2×Composite 1×VGA( RGBHV ) 1×DVI / HDMI ( 1.3a with HDCP )
Video system	PAL / NTSC
Composite Video Scope / Impedance	1V（p_p）/ 75Ω
VGA Format	PC（VESA）	≤2048×1152@60Hz
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
DVI / HDMI Format（HDCP）	SD / HD（CEA -861）	≤1920×1080@60Hz
	PC（VESA）	≤2048×1152@60Hz
AUDIO Scope / Impedance	2.0Vp-p/10K
Input Connectors	VGA：15pin D_Sub ( Female ) DVI：24+1 DVI_D Composite：BNC
Outputs
Nums / Type	1×VGA（RGBHV） 2×DVI
VGA / DVI Format	1024×768@60Hz / 75Hz 1280×1024@60Hz / 75Hz 1600×1200@60Hz 1920×1080@50Hz / 60Hz 1366×768@60Hz 1440×900@60Hz
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
Output Connectors	VGA OUT：15pin D_Sub ( Female ) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D
Others
Control	Panel Button / knob / RS232 / USB
Power	100-240VAC 35W 50 / 60Hz
Operating Temp	5-40 ℃
Humidity	15-85%
Dimensions（Package）	145mm（height）×370mm（width）×535mm（length）
Weight（G.W.）	5.0 Kg
Weight（N.W.）	3.2 Kg
